Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

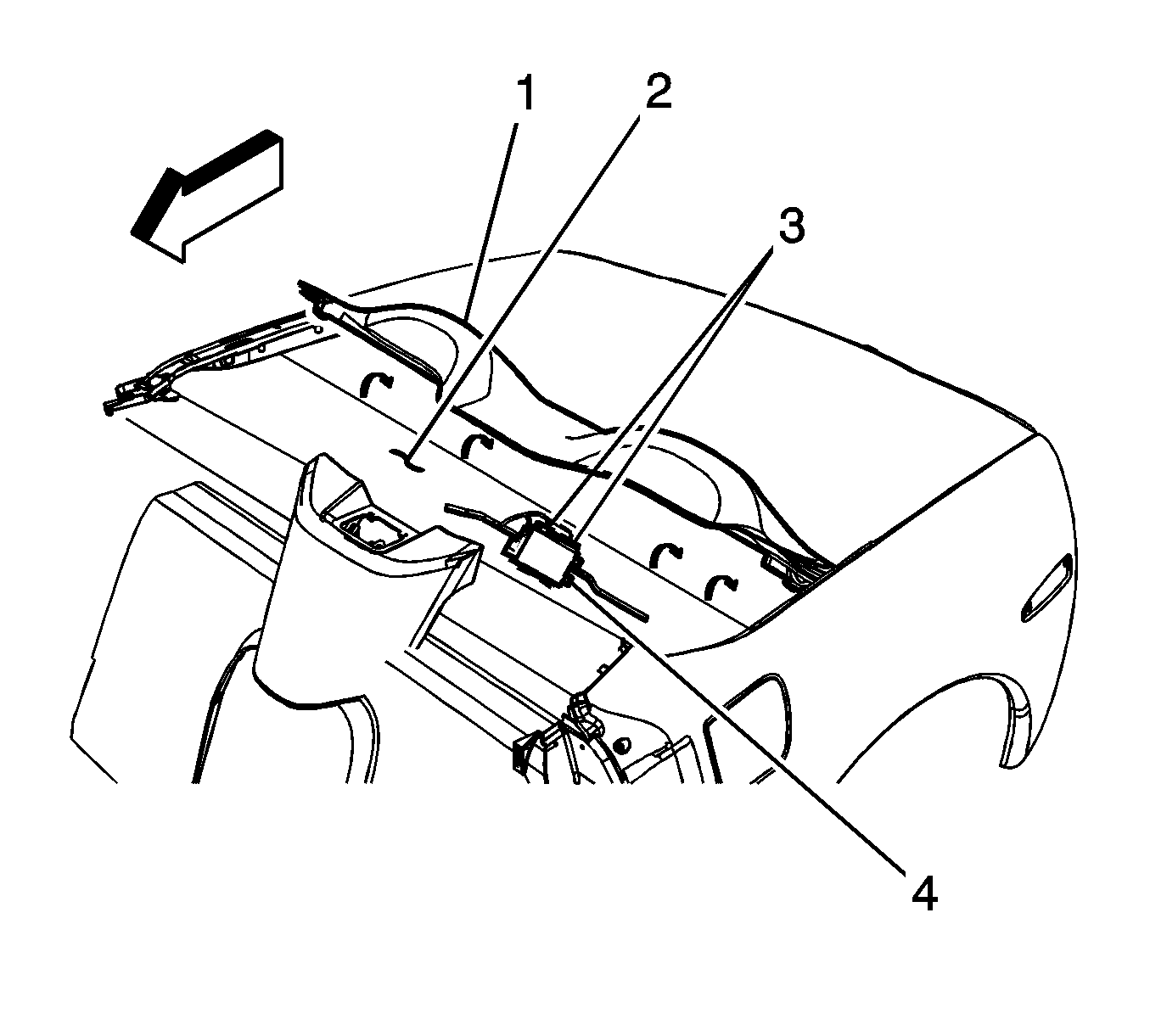

Fig 1: Connect The Electrical Connectors To The Folding Top Control Module
GM1509583Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors (1) to the folding top control module (2).
  2. Install the rear compartment carpet. Refer to Trim Panel Carpet - Rear Compartment Rear Center in interior Trim.
  3. Connect the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure (7.0L) or Battery Negative Cable Disconnect/Connect Procedure (6.0L) in Engine Electrical.
  4. Close the rear compartment.
  5. Inspect the folding top for proper operation. Refer to Power Folding Top Description and Operation .
