Lighting Systems Component Views

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

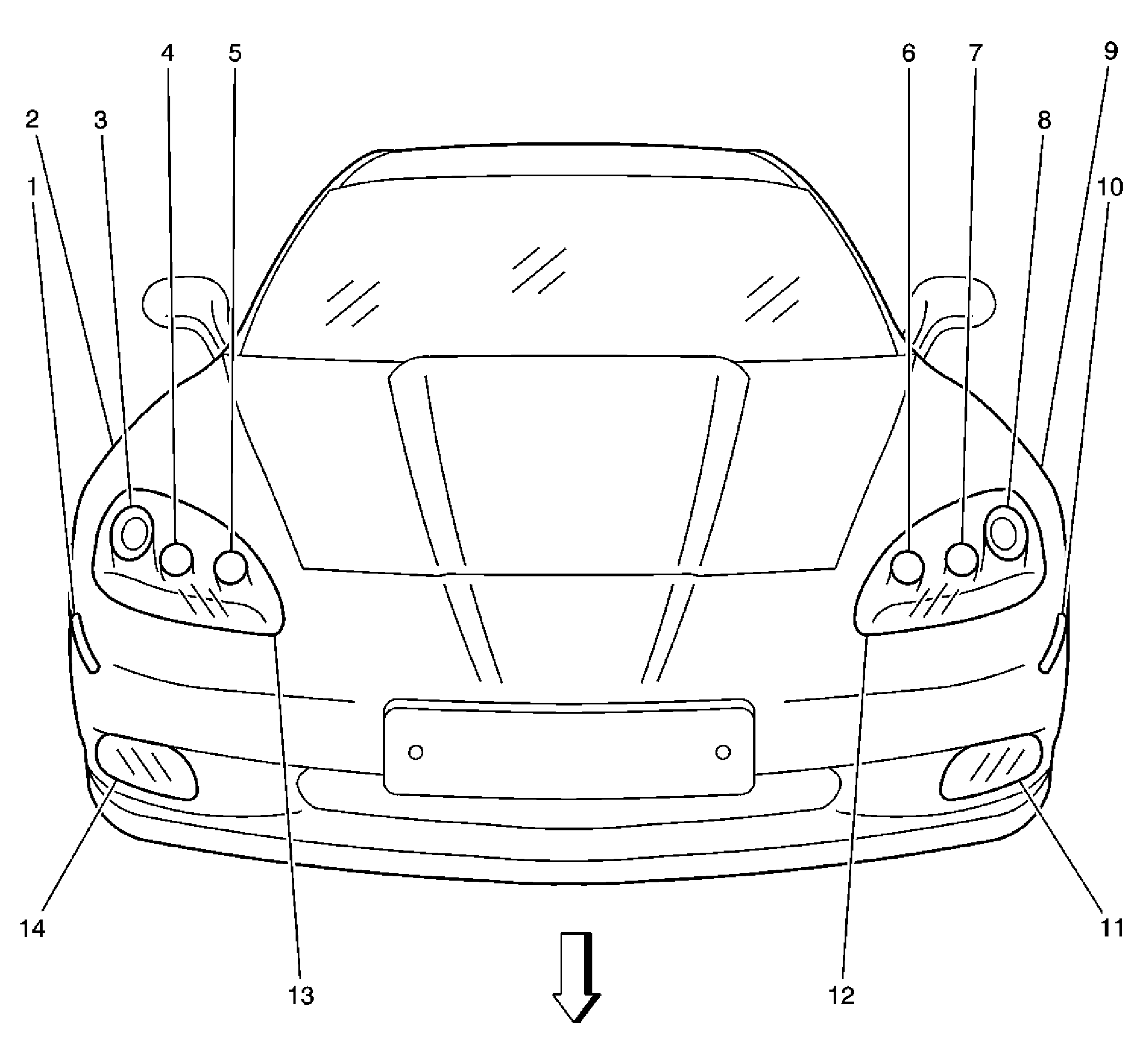

Fig 1: Front of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - RF
2	Park/Turn Signal Lamp - RF (w/o T90)
3	Headlamp Ballast - Right
4	Headlamp High Beam - Right
5	Headlamp High Beam - Left
6	Headlamp Ballast - Left
7	Park/Turn Signal Lamp - LF (w/o T90)
8	Marker Lamp - LF
9	Fog Lamp - LF
10	Headlamp Assembly - Left
11	Headlamp Assembly - Right
12	Fog Lamp - RF

Fig 2: Identifying Engine Compartment Area Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp
2	Hood Ajar Switch
3	Hood Release Handle

Fig 3: Left side of IP

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Sunload Sensor Assembly
4	Turn Signal/Multifunction Switch
5	Clutch Pedal Position (CPP) Switch (MM6/MZ6)
6	Clutch Start Switch (MM6/MZ6)

Fig 4: I/P and Overhead Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp-Left
2	Inside Rearview Mirror w/Reading Lamps
3	Vanity Mirror Lamp-Right
4	I/P Compartment Lamp
5	Courtesy Lamp-Right
6	Courtesy Lamp-Left

Fig 5: I/P Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display (HUD) (UV6)
2	Driver Information Center (DIC) Switch
3	Sunload Sensor Assembly
4	Hazard Switch
5	Radio
6	HVAC Control Module
7	Inflatable Restraint I/P Module Disable Switch
8	I/P Compartment Lamp
9	Heated Seat Switch - Passenger
10	Suspension Control Switch
11	Inflatable Restraint I/P Module Disable Switch LED
12	Auxiliary Power Outlet
13	Traction Control Switch
14	Cigar Lighter
15	Heated Seat Switch - Driver
16	Footwell Courtesy Lamp - Left
17	Ignition Mode Switch
18	Air Temperature Sensor - Inside
19	Inflatable Restraint Steering Wheel Module
20	Rear Compartment Lid Release Switch - Interior
21	Fuel Door Release Switch
22	I/P Dimmer Switch
23	Folding Top Control Switch (CM7)
24	Head Up Display (HUD) Switch (UV6)
25	Instrument Panel Cluster (IPC)

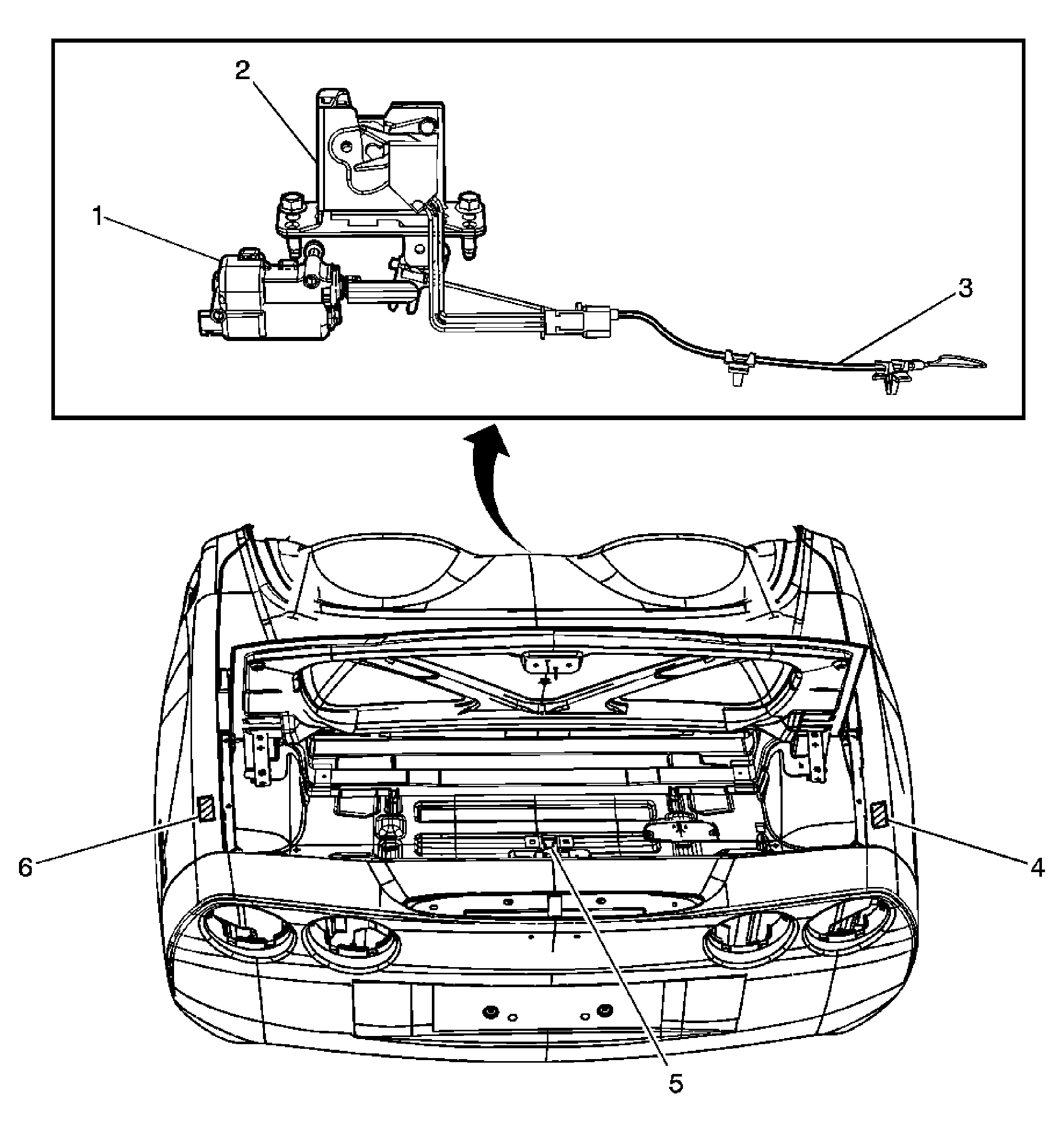

Fig 6: Rear Compartment Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Lid Release Motor (CM7)
2	Folding Top Cover Latch Actuator (CM7)
3	Manual Release Cable
4	Rear Compartment Courtesy Lamp - Right
5	Rear Compartment Lid Pull Down Actuator (Y07)
6	Rear Compartment Courtesy Lamp - Left

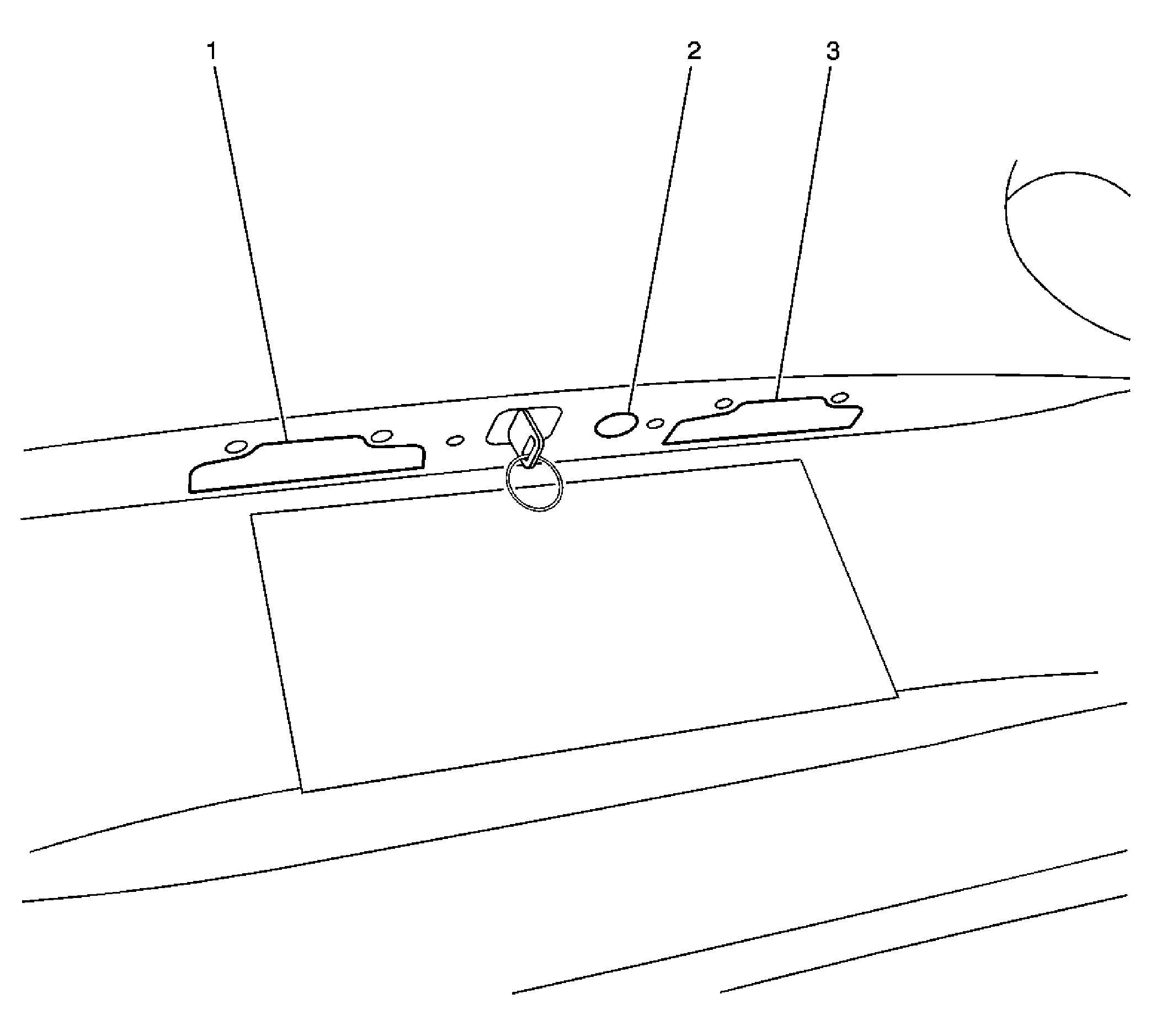

Fig 7: Center Rear of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Lamp - Left
2	Rear Compartment Lid Release Switch - Exterior
3	License Lamp - Right

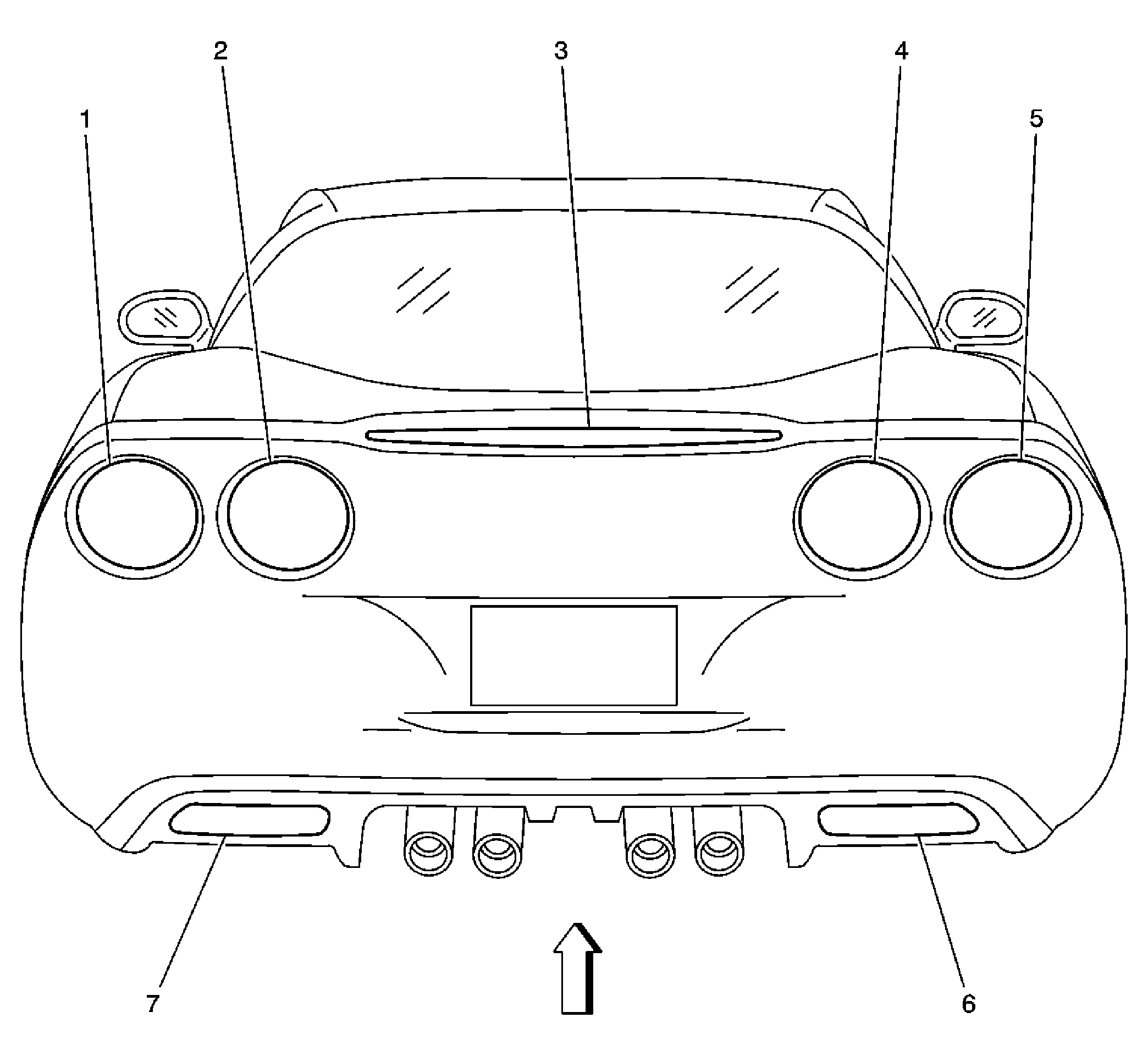

Fig 8: Rear of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Left Outer (w/o T79) or Turn Signal Lamp - LR (T79)
2	Tail/Stop and Turn Signal Lamp - Left Inner (w/o T79) or Tail/Stop Lamp - Left (T79)
3	Center High Mounted Stop Lamp (CHMSL)
4	Tail/Stop and Turn Signal Lamp - Right Inner (w/o T79) or Tail/Stop Lamp - Right (T79)
5	Tail/Stop and Turn Signal Lamp - Right Outer (w/o T79) or Turn Signal Lamp - RR (T79)
6	Backup Lamp - Right
7	Backup Lamp - Left
