Door Lock/Indicator Schematics

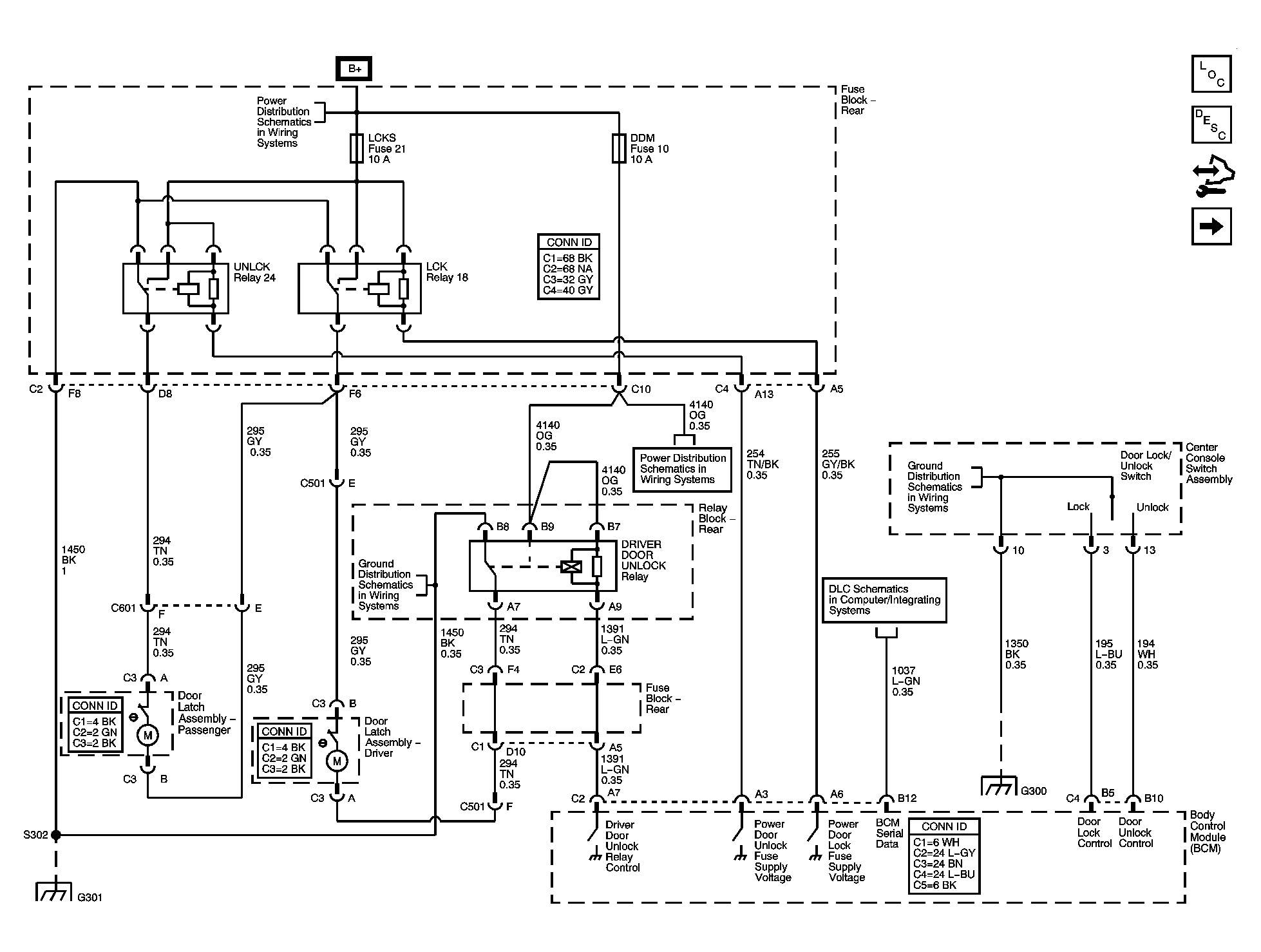

Fig 1: Power Door Locks
GM1458634Courtesy of GENERAL MOTORS CORP.

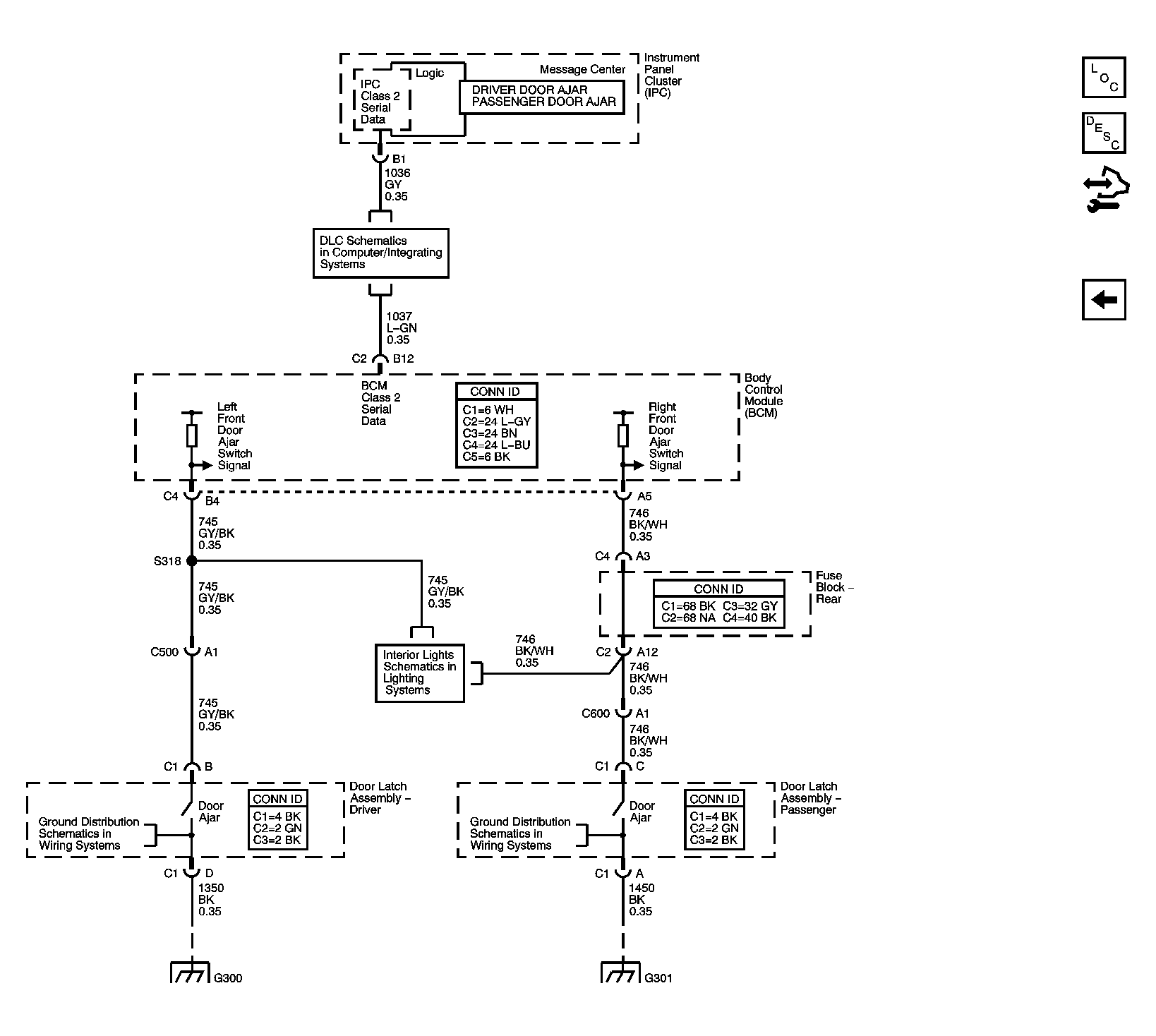

Fig 2: Door Ajar and Indicator
GM1458635Courtesy of GENERAL MOTORS CORP.
