SIR Component Views

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: I/P Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display (HUD) (UV6)
2	Driver Information Center (DIC) Switch
3	Sunload Sensor Assembly
4	Hazard Switch
5	Radio
6	HVAC Control Module
7	I/P Compartment Lamp
8	Heated Seat Switch - Passenger
9	Suspension Control Switch
10	Auxiliary Power Outlet
11	Traction Control Switch
12	Cigar Lighter
13	Heated Seat Switch - Driver
14	Courtesy Lamp - Left
15	Ignition Mode Switch
16	Air Temperature Sensor - Inside
17	Inflatable Restraint Steering Wheel Module
18	Rear Compartment Lid Release Switch - Interior
19	Fuel Door Release Switch
20	I/P Dimmer Switch
21	Folding Top Control Switch (CM7)
22	Head Up Display (HUD) Switch (UV6)
23	Instrument Panel Cluster (IPC)

Fig 2: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) ON/OFF Indicator
2	Onstar Button Assembly

Fig 3: Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Seat Position Switch - Left
2	Seat Rear Vertical Motor - Driver
3	Seat Rear Vertical Position Sensor (AAB)
4	Seat Front Vertical Motor - Driver
5	Seat Front Vertical Position Sensor (AAB)
6	Memory Seat Module - Driver (AAB)
7	Heated Seat Module - Driver (KA1)
8	Seat Horizontal Motor Position Sensor (AAB)
9	Seat Horizontal Motor - Driver
10	Inflatable Restraint Side Impact Module - Left
11	Lumbar Switch - Driver
12	Seat Adjuster Switch - Driver
13	Seat Belt Pretensioner - Left and Seat Belt Switch - Driver

Fig 4: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Motor - Passenger (AG2)
2	Seat Rear Vertical Motor - Passenger (AG2)
3	Inflatable Restraint Seat Position Switch - Right
4	Heated Seat Module - Passenger (KA1)
5	Seat Horizontal Motor - Passenger (AG2)
6	Seat Belt Pretensioner - Right and Seat Belt Switch - Passenger
7	Heated Seat Cushion - Passenger
8	Seat Adjuster Switch - Front Passenger
9	Lumbar Switch - Passenger
10	Inflatable Restraint Side Impact Module - Right

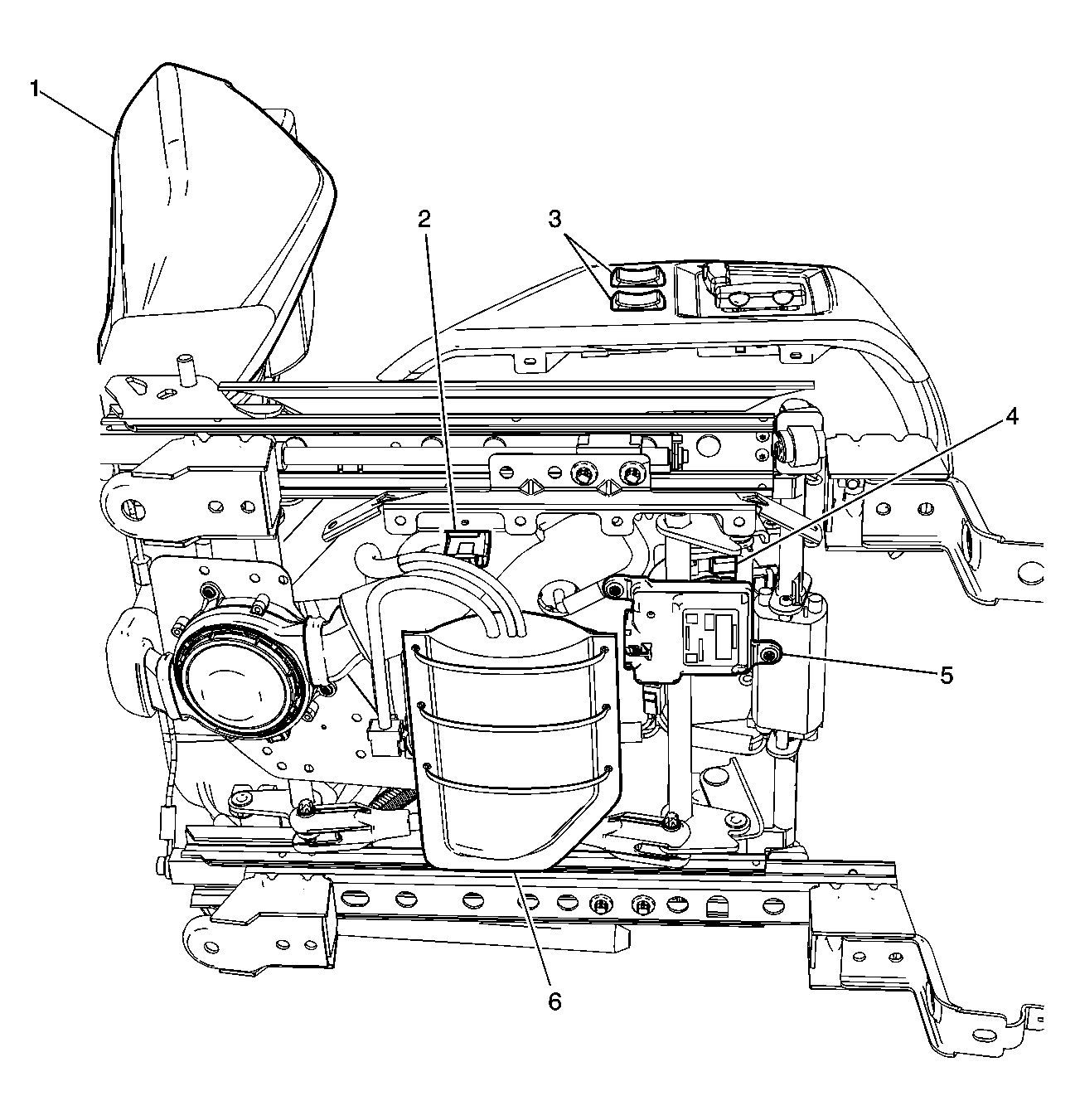

Fig 5: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Inflatable Restraint Seat Position Switch - Right
3	Seat Lumbar/Bolster Switch
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	Heated Seat Module - Right (KA1)
6	?

Fig 6: Identifying Driver Door Internal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	S579
4	S559
5	Memory Seat Switch
6	Door Lock Switch - Driver
7	Speaker - LF Door Tweeter
8	Outside Rearview Mirror - Driver C1
9	S539
10	Outside Rearview Mirror - Driver C2
11	C503
12	C501
13	Speaker - Bose
14	Driver Door Module (DDM)
15	Driver Door Switch Assembly (DDSA)
16	Door Handle Switch - Driver Interior
17	C555
18	Inflatable Restraint Side Impact Sensor - Left

Fig 7: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger C2
2	Outside Rearview Mirror - Passenger C2
3	Speaker - RF Door Tweeter
4	Door Lock Switch - Passenger
5	S680
6	Door Handle Switch - Passenger Interior
7	S660
8	Door Lock Indicator - Passenger
9	Door Handle Switch - Passenger Exterior
10	Inflatable Restraint Side Impact Sensor - Right
11	C666
12	Window Switch - Front Passenger
13	Front Passenger Door Module (FPDM)
14	Speaker - Bose
15	C600
16	C602
17	S640

Fig 8: Behind the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Yaw and Lateral Accelerometer Sensor

Fig 9: Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left
