ABS Component Views
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

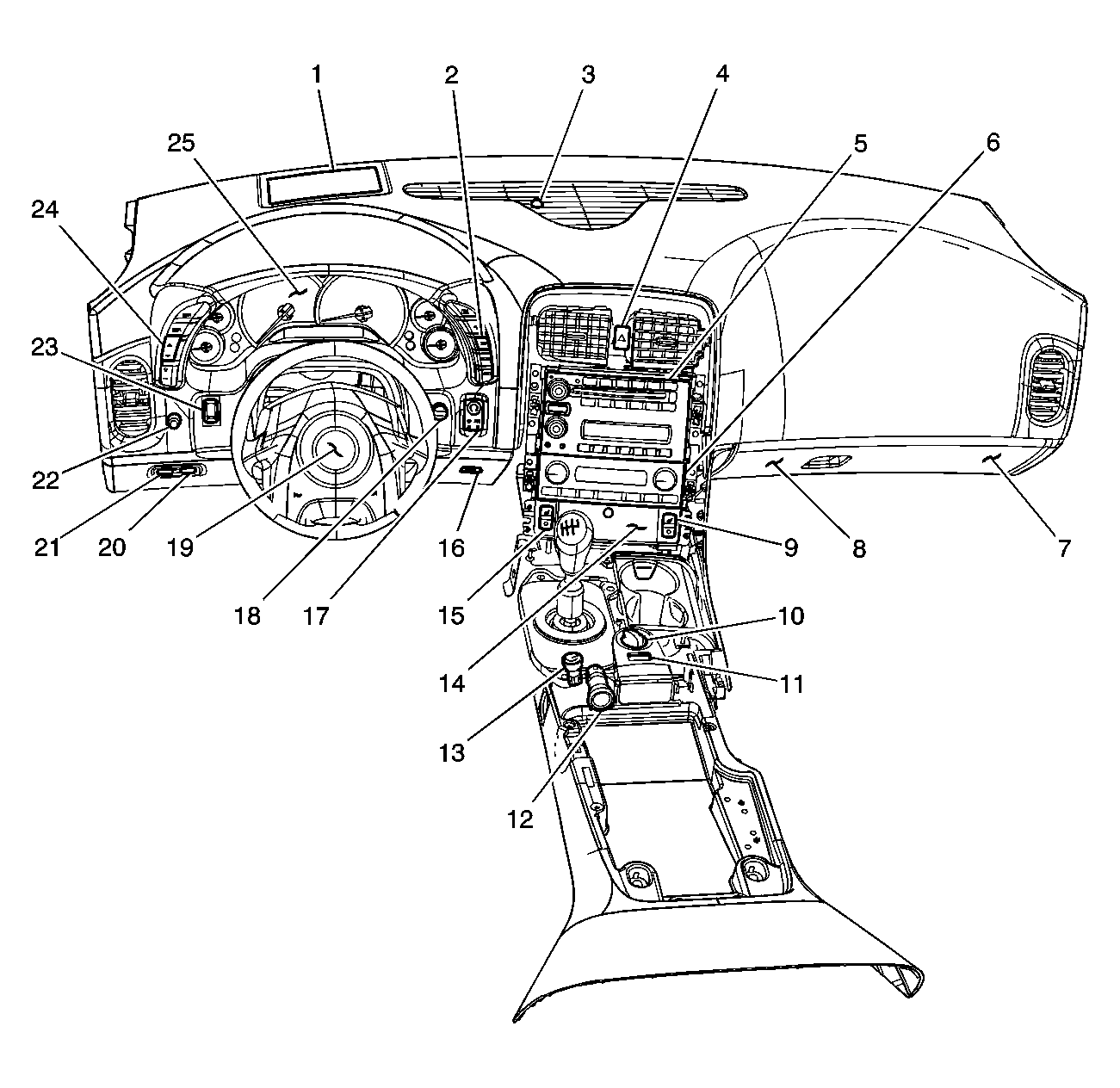

| Callout | Component Name |
|---|---|
| 1 | Head Up Display (HUD) (UV6) |
| 2 | Driver Information Center (DIC) Switch |
| 3 | Sunload Sensor Assembly |
| 4 | Hazard Switch |
| 5 | Radio |
| 6 | HVAC Control Module |
| 7 | Inflatable Restraint I/P Module Disable Switch |
| 8 | I/P Compartment Lamp |
| 9 | Heated Seat Switch - Passenger |
| 10 | Suspension Control Switch |
| 11 | Inflatable Restraint I/P Module Disable Switch LED |
| 12 | Auxiliary Power Outlet |
| 13 | Traction Control Switch |
| 14 | Cigar Lighter |
| 15 | Heated Seat Switch - Driver |
| 16 | Footwell Courtesy Lamp - Left |
| 17 | Ignition Mode Switch |
| 18 | Air Temperature Sensor - Inside |
| 19 | Inflatable Restraint Steering Wheel Module |
| 20 | Rear Compartment Lid Release Switch - Interior |
| 21 | Fuel Door Release Switch |
| 22 | I/P Dimmer Switch |
| 23 | Folding Top Control Switch (CM7) |
| 24 | Head Up Display (HUD) Switch (UV6) |
| 25 | Instrument Panel Cluster (IPC) |
| Callout | Component Name |
|---|---|
| 1 | Brake Pressure Modulator Valve (BPMV) |
| 2 | Brake Fluid Pressure Sensor |
| 3 | Brake Fluid Level Switch |
| 4 | Electronic Brake Control Module (EBCM) |
| 5 | Steering Angle Sensor |
| 6 | Brake Pedal Position Sensor |
| 7 | Yaw and Lateral Accelerometer Sensor |
| 8 | Park Brake Switch |
| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS)-LF |
| 2 | Wheel Speed Sensor (WSS)-LR |
| 3 | Wheel Speed Sensor (WSS)-RR |
| 4 | Wheel Speed Sensor (WSS)-RF |
