Headlamp Aiming: Notes
WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

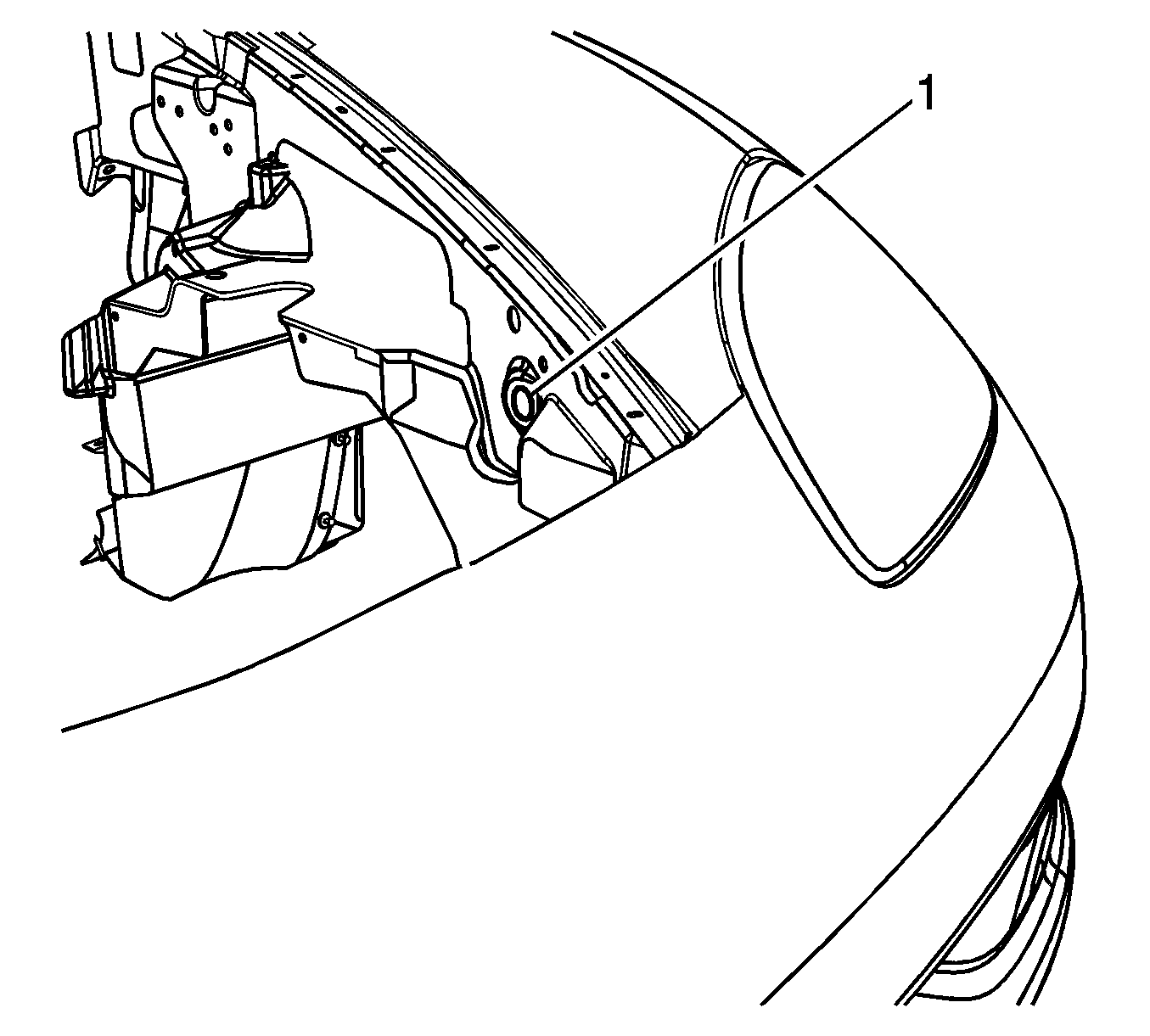

Headlight aiming is only adjusted vertically. Vertical aiming of each of the composite headlamps is done by turning adjusting screws which move the headlamp capsule in relation to the headlamp frame. The vertical adjustment screw (1) is located on the inner wheelhouse.
Some state and local authorities have specific requirements for aiming the headlamps. These requirements must be followed.
