Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

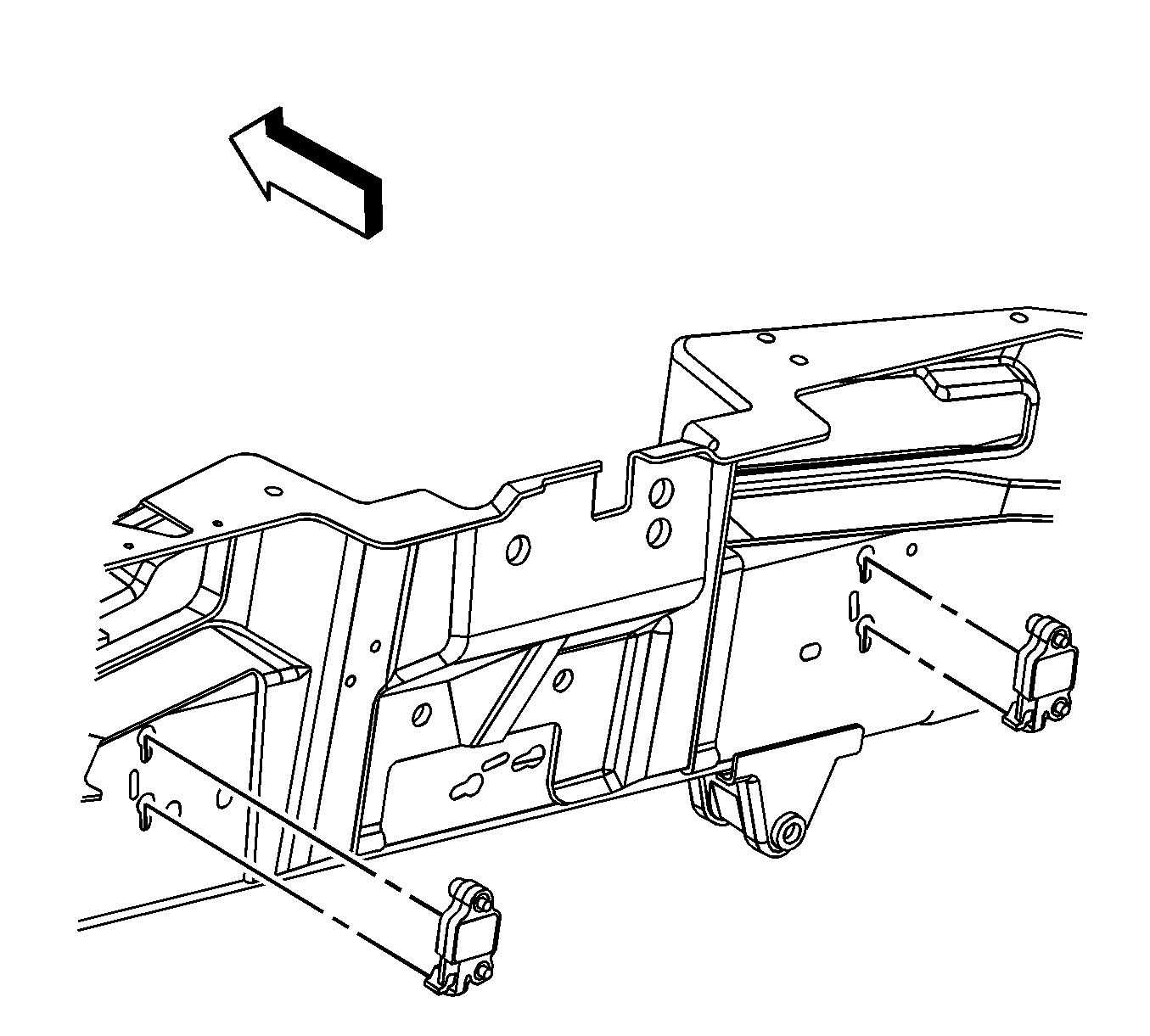

Fig 1: Inflatable Restraint Front End Sensor & Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Install the sensor from the vehicle.

NOTE: Refer to Fastener Notice .

Install the retaining bolts to the inflatable restraint front end sensor.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
Enable the SIR system. Refer to SIR Disabling and Enabling .
