Removal Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .
    CAUTION: Refer to SIR Caution .
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the instrument panel (I/P) assembly. Refer to Instrument Panel Assembly Replacement .
  3. Remove the connector position assurance (CPA) from the I/P module harness connector.
  4. Disconnect the pigtail connector from the I/P module.

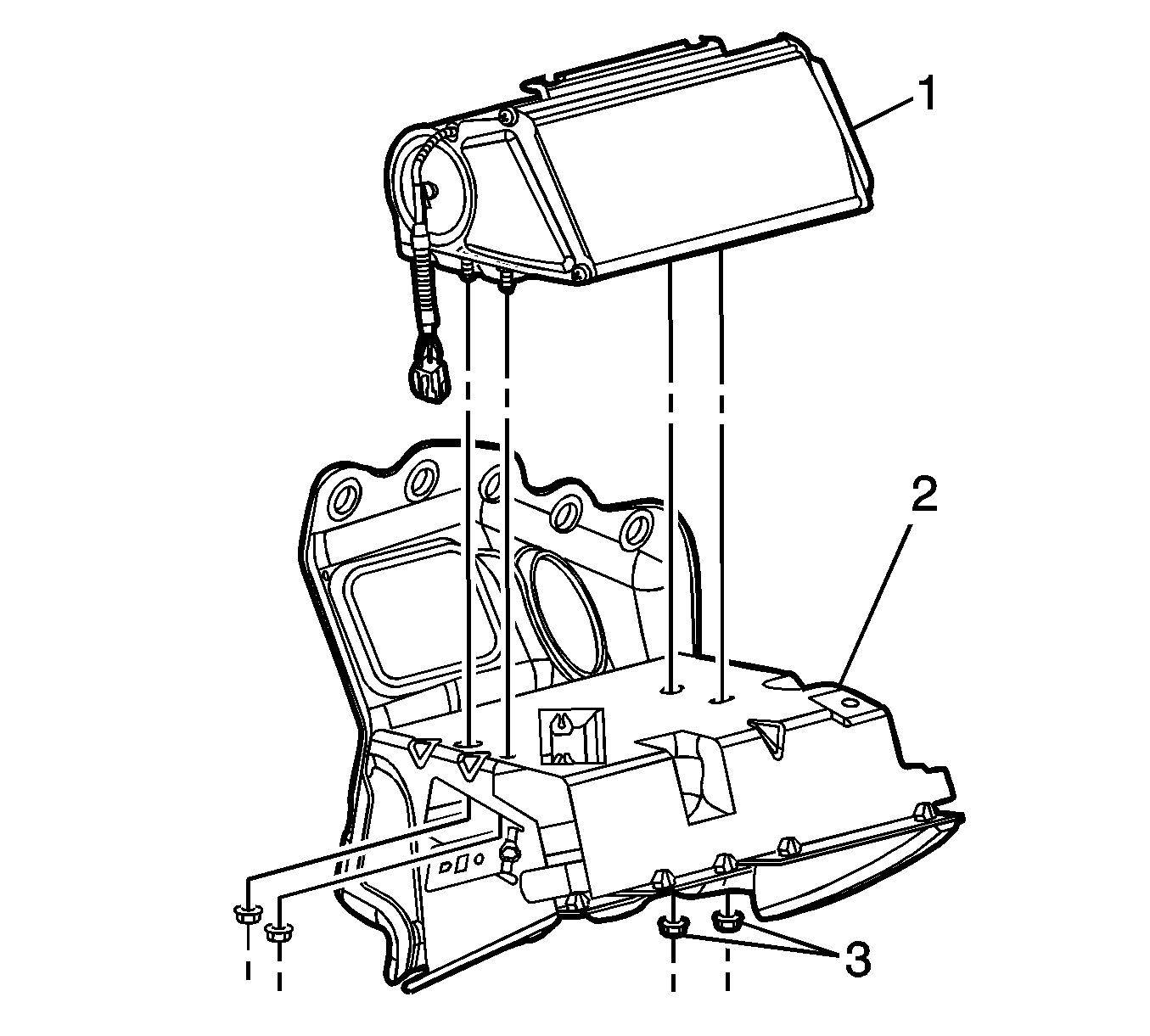

    5. Fig 1: View Of SIR Module, Bracket & Retaining Nuts
    GM1226225Courtesy of GENERAL MOTORS CORP.
  5. Remove the mounting fasteners from the I/P module.
  6. Remove the I/P module from the bracket.
  7. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
