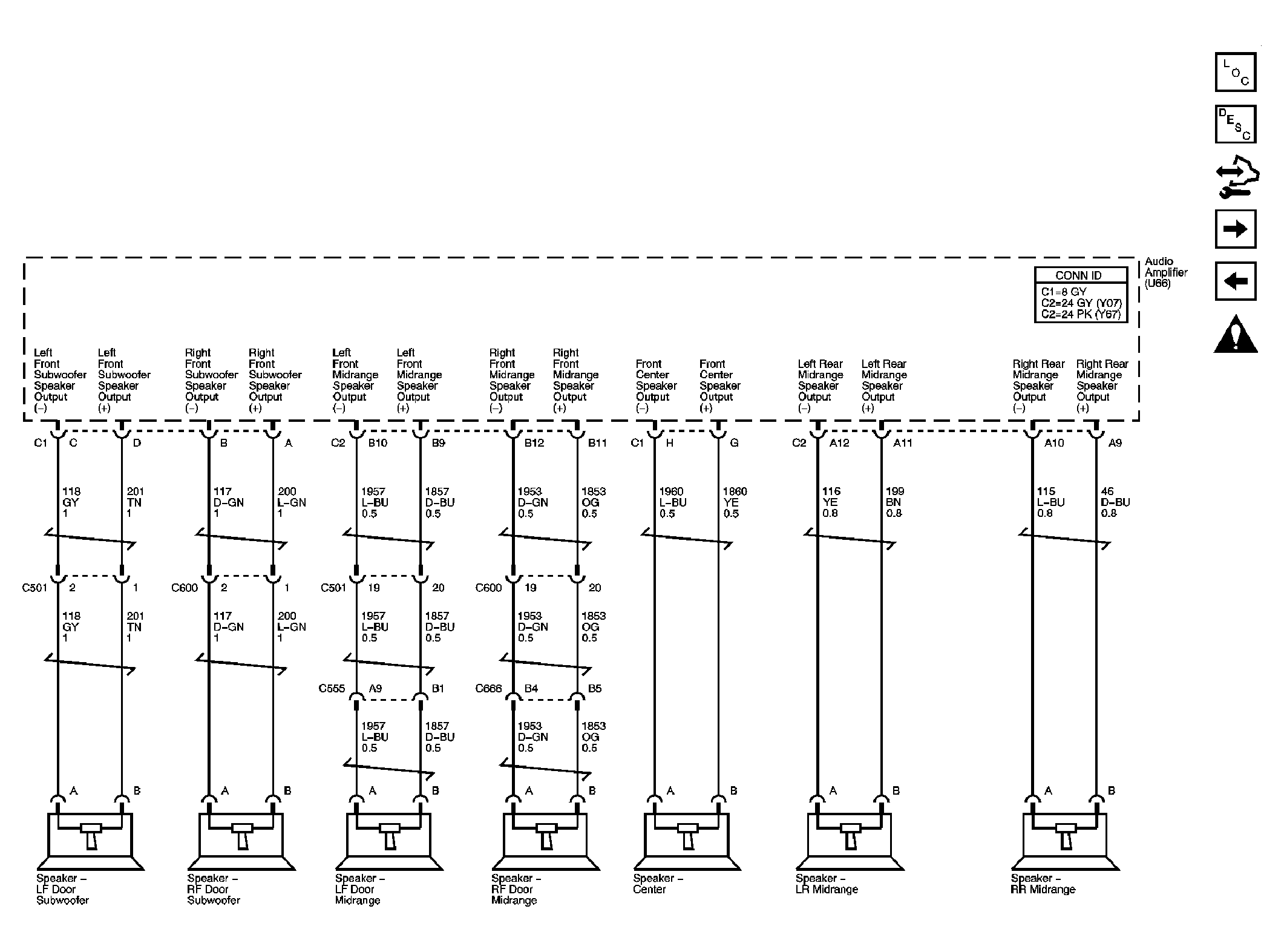

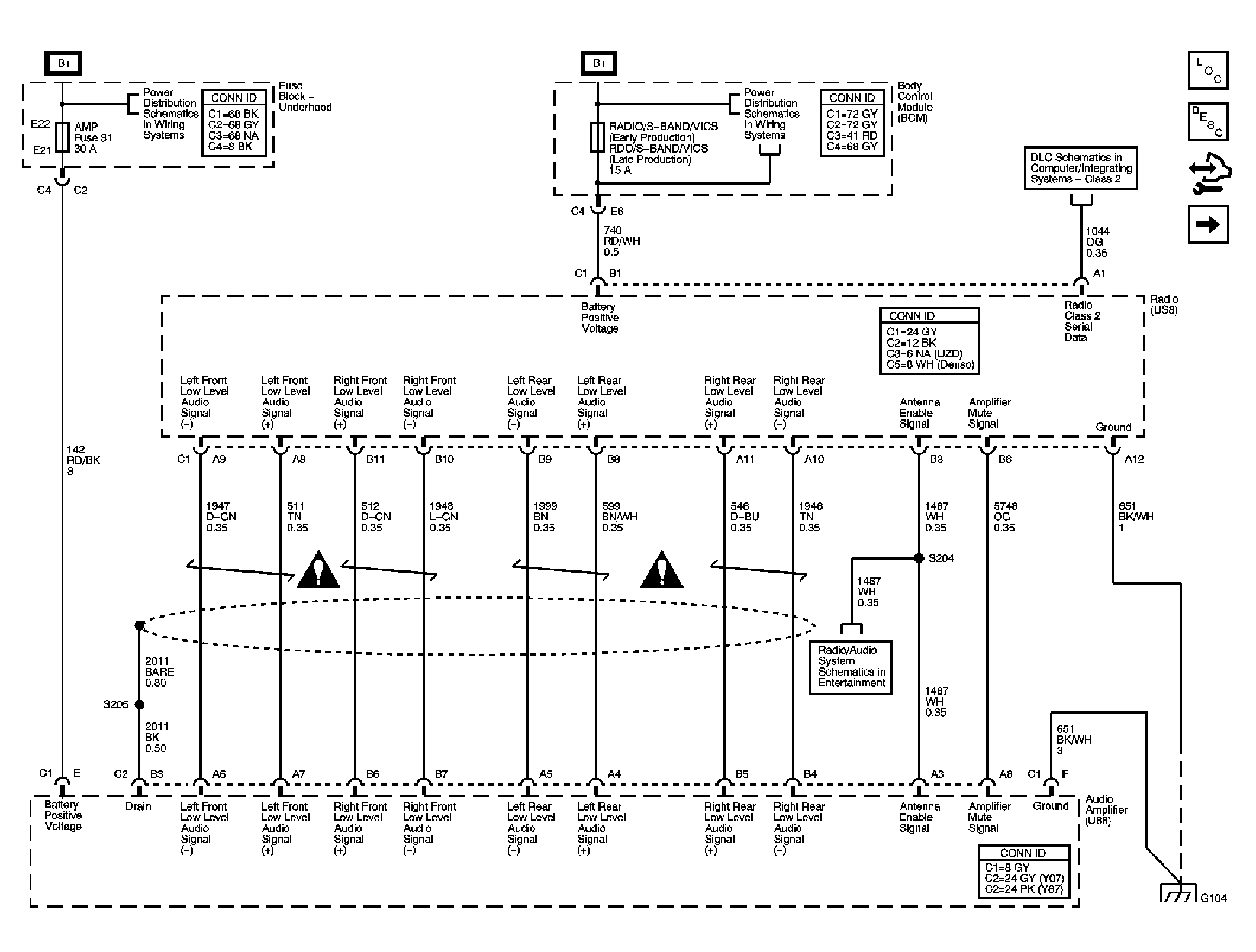

Fig 1: Power, Ground, DLC, Audio Amplifier, Radio and Audio Signals (US8&U66) Schematic
Courtesy of GENERAL MOTORS CORP.

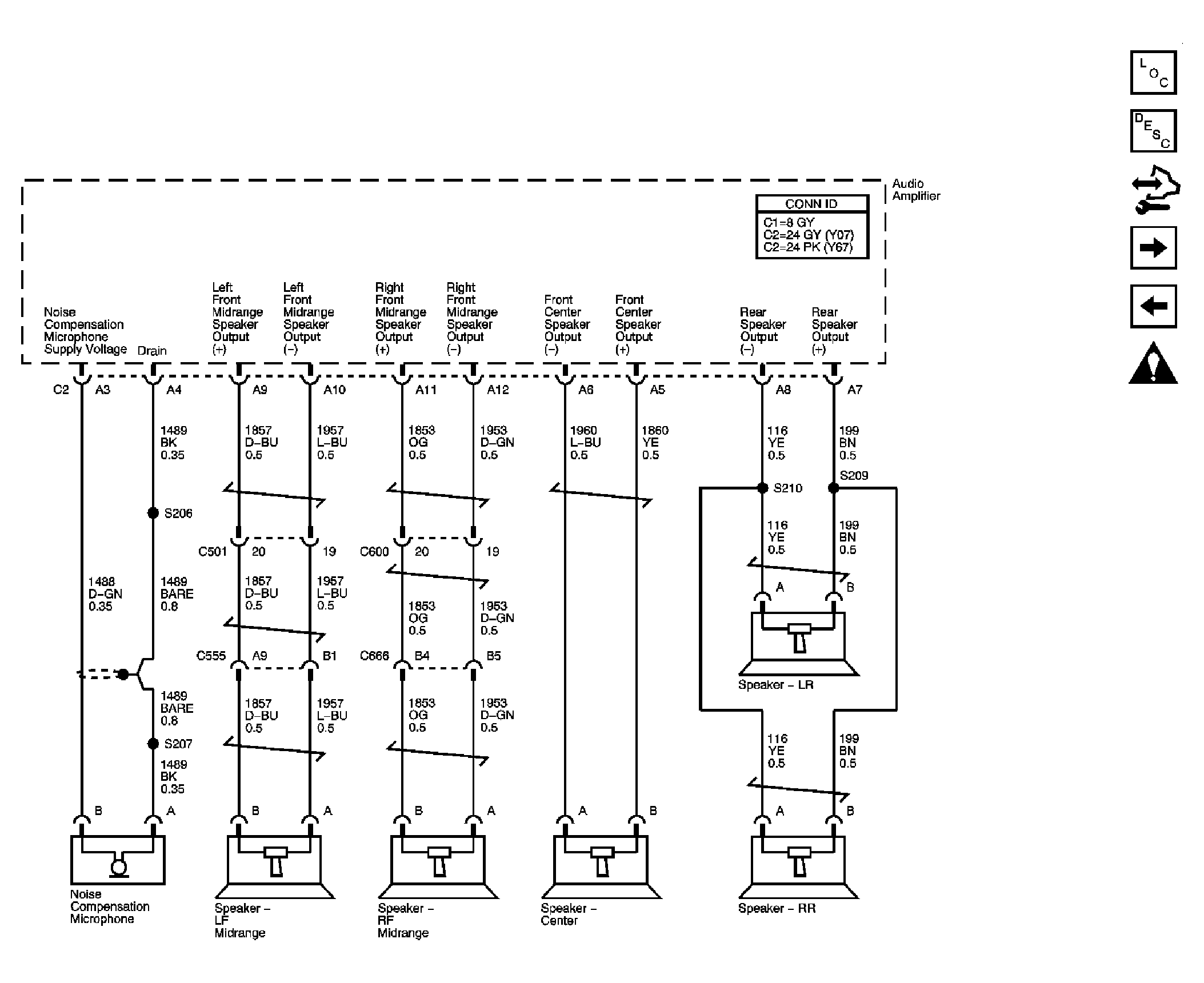

Fig 2: Speakers (U66) Schematic
Courtesy of GENERAL MOTORS CORP.

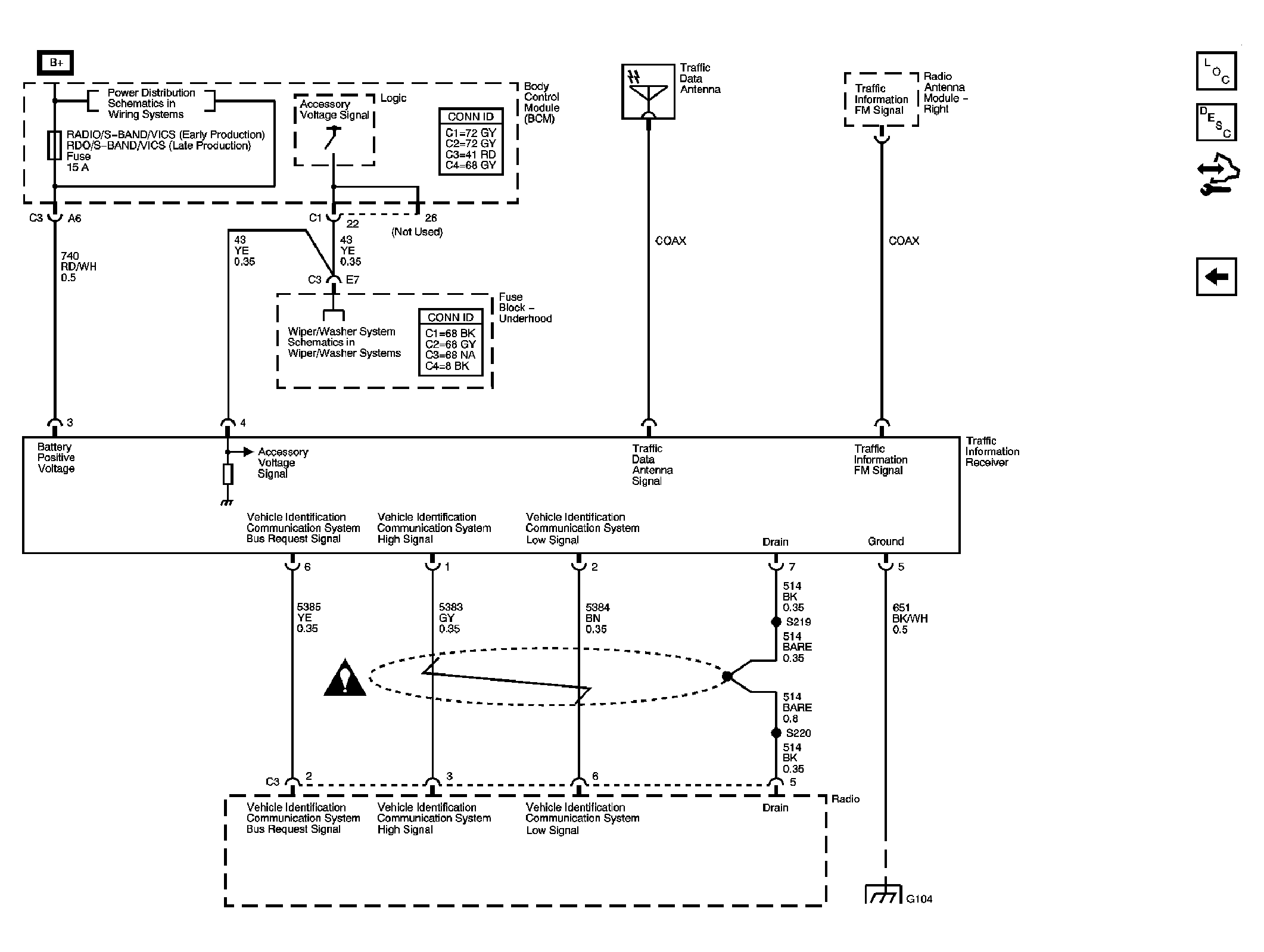

Fig 3: Power, Ground, DLC, Audio Amplifier, Radio, Audio Signals and Front Speakers (U65) Schematic
Courtesy of GENERAL MOTORS CORP.

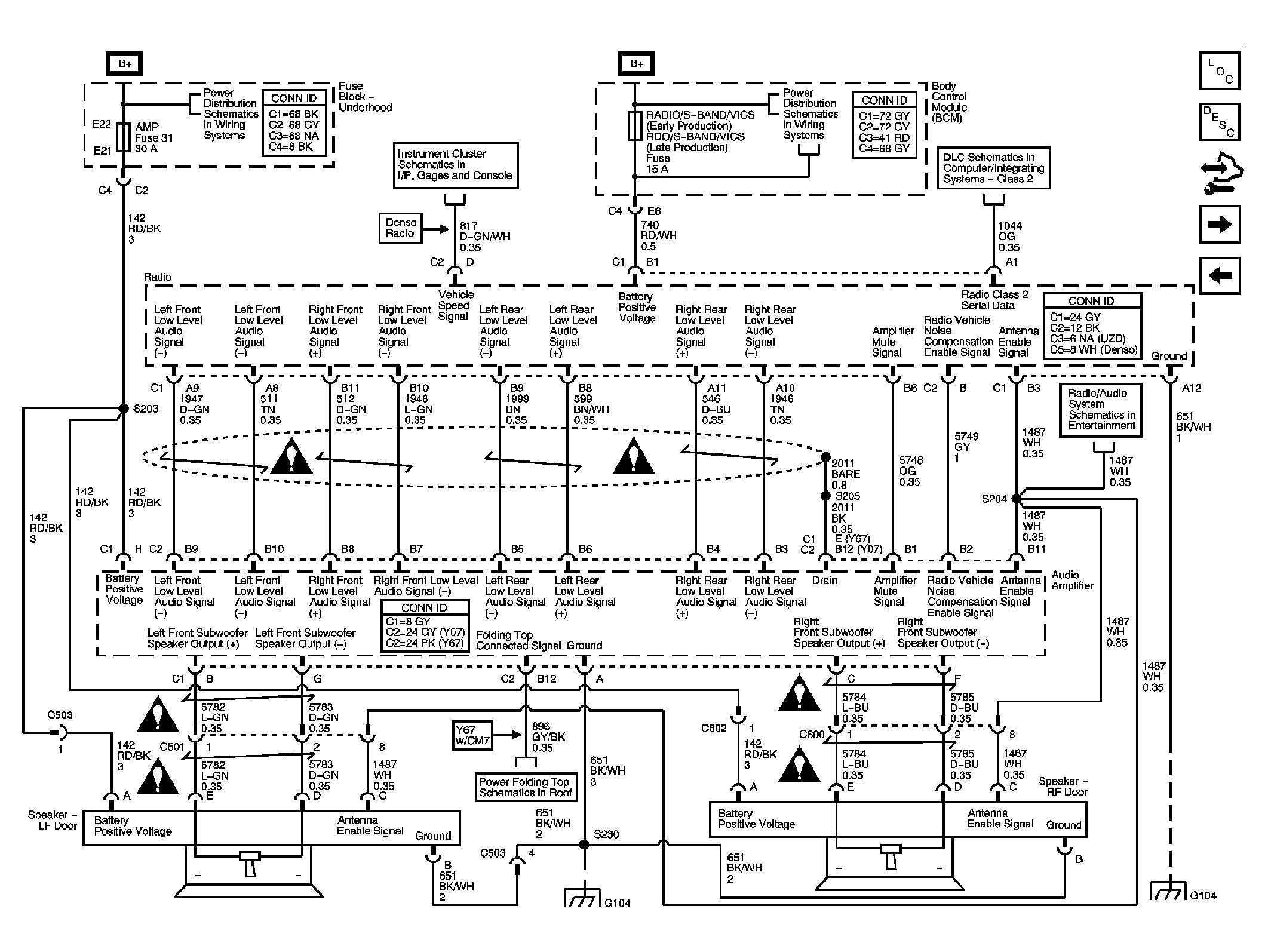

Fig 4: Speakers and Noise Compensation Microphone (U65) Schematic
Courtesy of GENERAL MOTORS CORP.

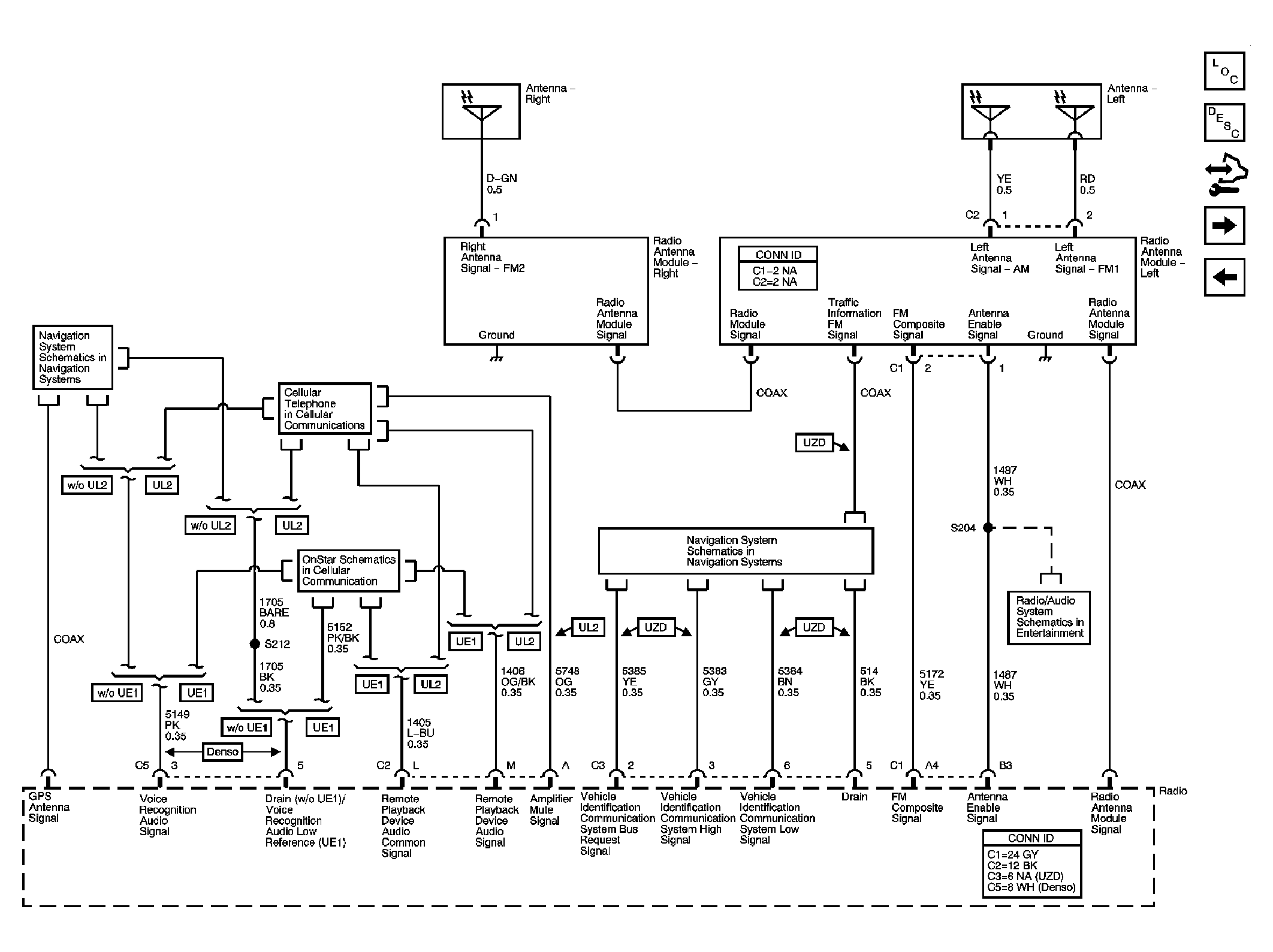

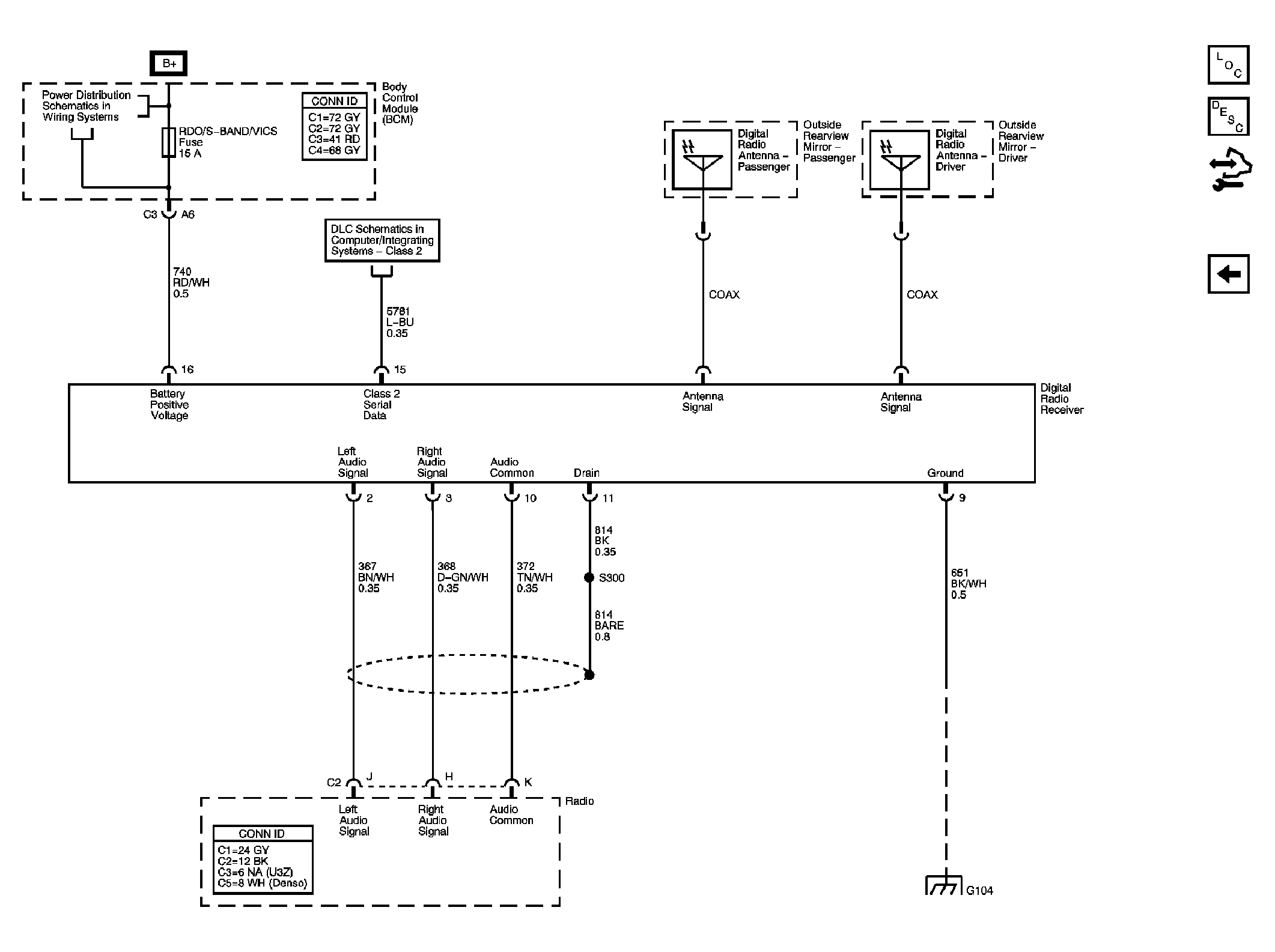

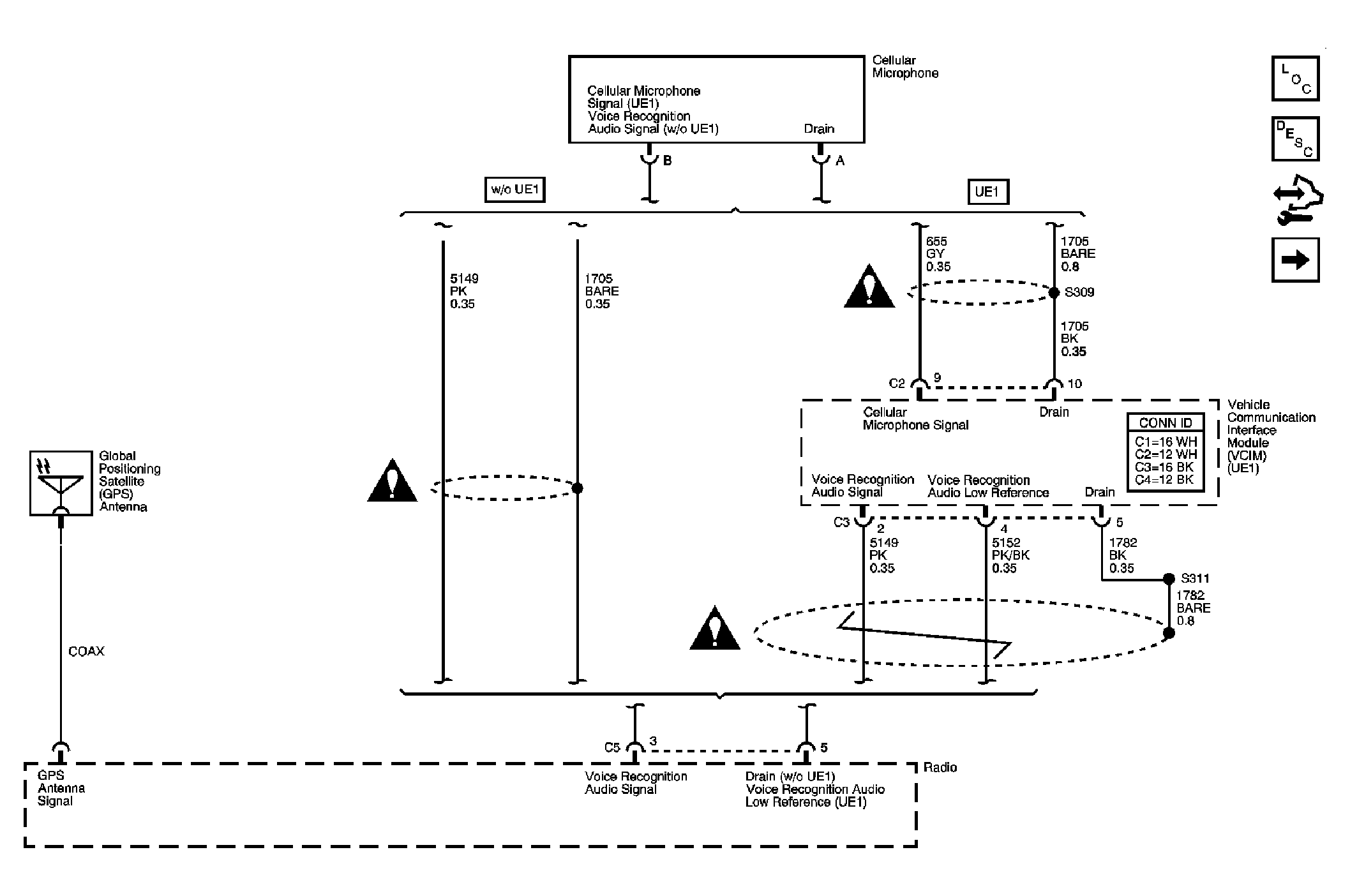

Fig 5: Antennas except U2K, References to Navigation and Onstar Schematic
