Installation Procedure

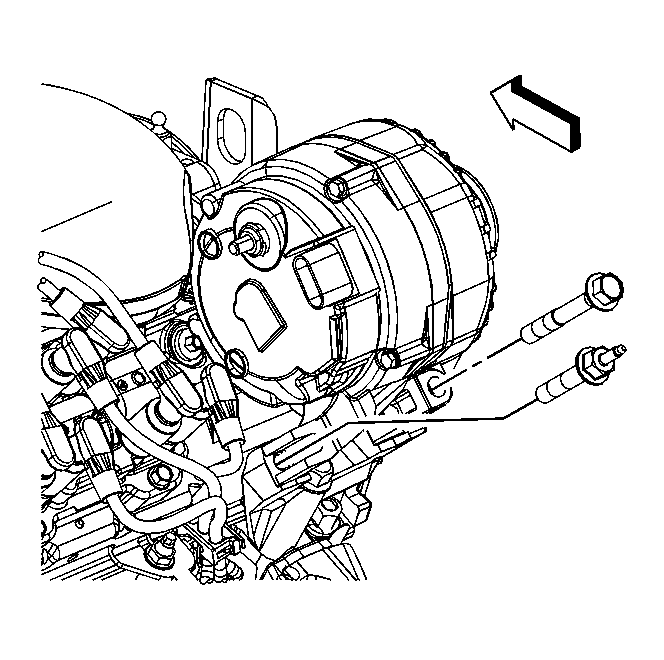

Fig 1: Identifying Generator Lower Bolt & Stud

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

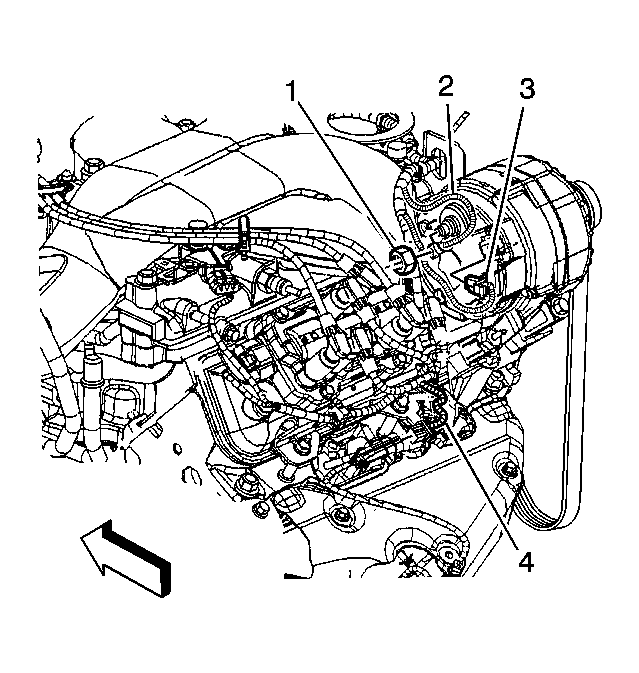

Fig 2: Identifying Generator Upper Mounting Bolt & Harness Ground Connection

Courtesy of GENERAL MOTORS CORP.

Install the generator upper bolt (3).
Tighten: Tighten the generator bracket bolts to 50 N.m (37 lb ft).
Install the idler pulley and bolt on the right front side of the engine.
Connect the wire harness to the retainers on the upper and lower right front shock tower.
Position the power steering lines and retainer to the stud on the generator bracket.
Install the nut holding the power steering lines on the back of the generator.

Fig 3: View Of Rear Of Generator

Courtesy of GENERAL MOTORS CORP.

Connect the engine harness electrical connector (3) to the generator.
Install the engine harness ground (2) to the generator.
Install the engine harness ground nut (1).
Tighten: Tighten the generator bracket bolts to 30 N.m (22 lb ft).
Install the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical - 3.9L.
Position the engine into the normal location and install the engine mount strut bolts. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT and ENGINE MOUNT STRUT REPLACEMENT - RIGHT in Engine Mechanical - 3.6L.
Connect the windshield wiper transmission. Refer to WIPER MOTOR MODULE REPLACEMENT in Wiper/Washer Systems.
Install the washer solvent container. Refer to WASHER SOLVENT CONTAINER REPLACEMENT in Wiper/Washer Systems.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
