Wiper Motor, Wiper System Module Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

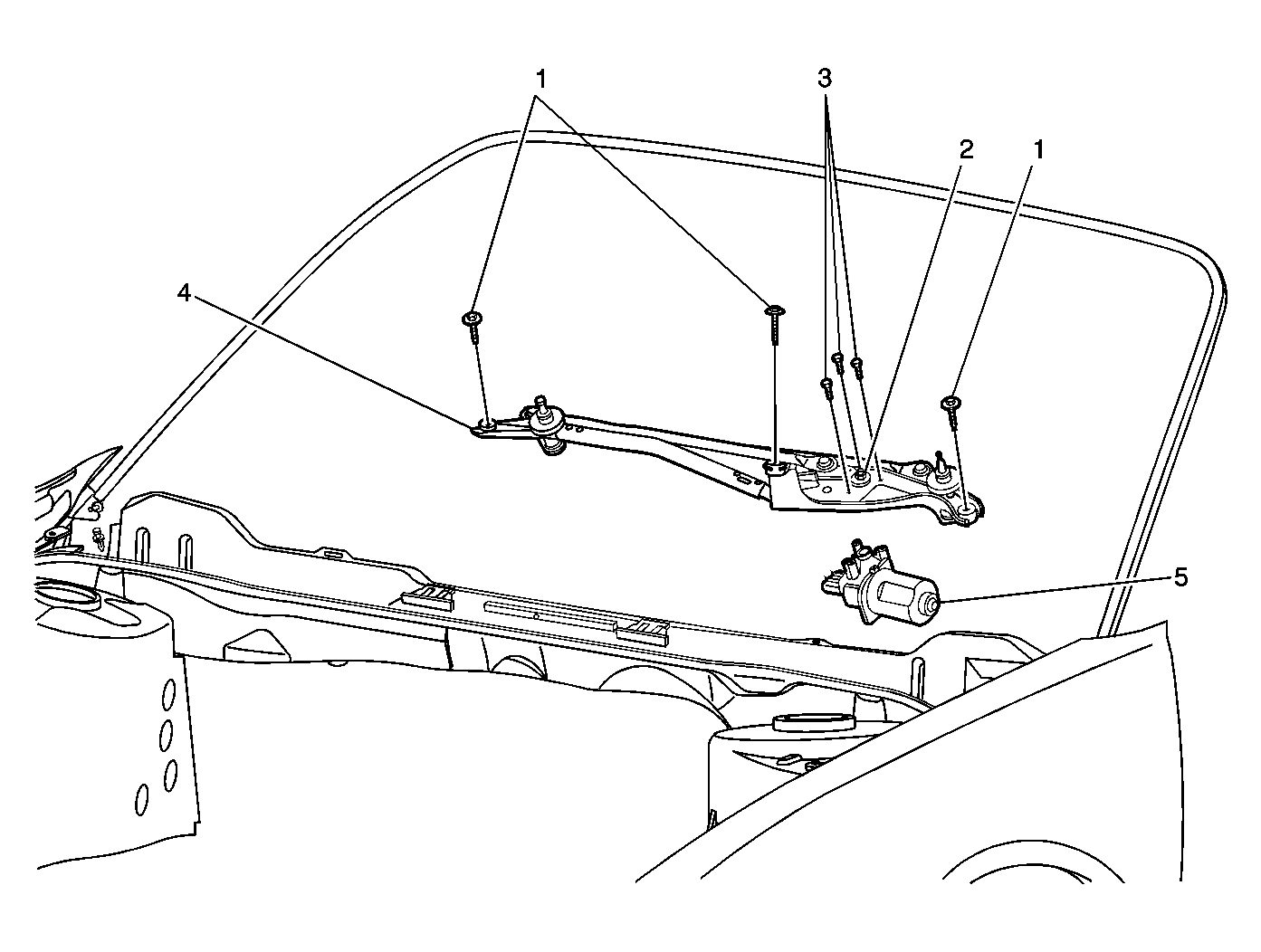

Fig 1: View Of Wiper Motor & Wiper System Module

Courtesy of GENERAL MOTORS CORP.

Wiper Motor & Wiper System Module Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm, Blade, Insert Replacement - Front . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
1	Wiper System Module Bolt (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Wiper System Module Nut (Qty: 1) Tighten: 10 N.m (89 lb in)
3	Wiper Motor Nut (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Wiper Drive System Module
5	Wiper Motor Tip: Disconnect the electrical connector.
