Installation Procedure

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

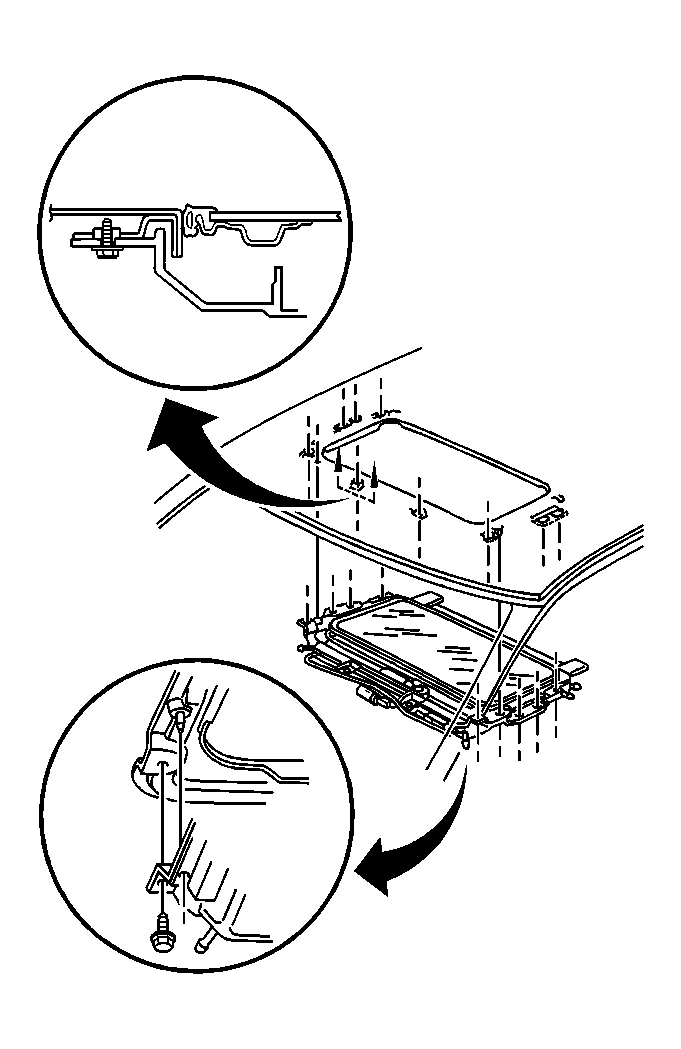

    Fig 1: Identifying Sunroof Module & Components
    GM317129Courtesy of GENERAL MOTORS CORP.
  1. Position the sunroof module to the vehicle roof with an assistant.
    2. NOTE: Refer to FASTENER NOTICE in General Information.
  2. Install the sunroof module bolts.

    Tighten:  Tighten the sunroof module bolts to 10 N.m (89 lb in).

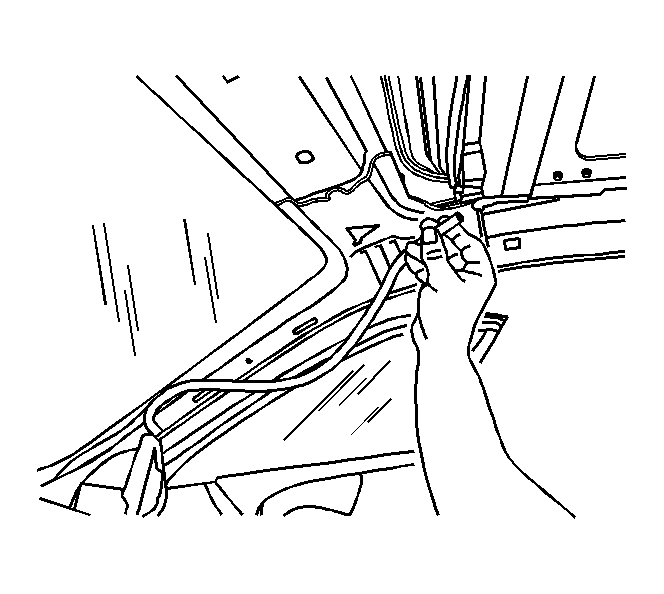

    3. Fig 2: Disconnecting/Reconnecting Sunroof Module Drain Hoses
    GM791513Courtesy of GENERAL MOTORS CORP.
  3. Connect the front and rear drain hoses to the sunroof module.

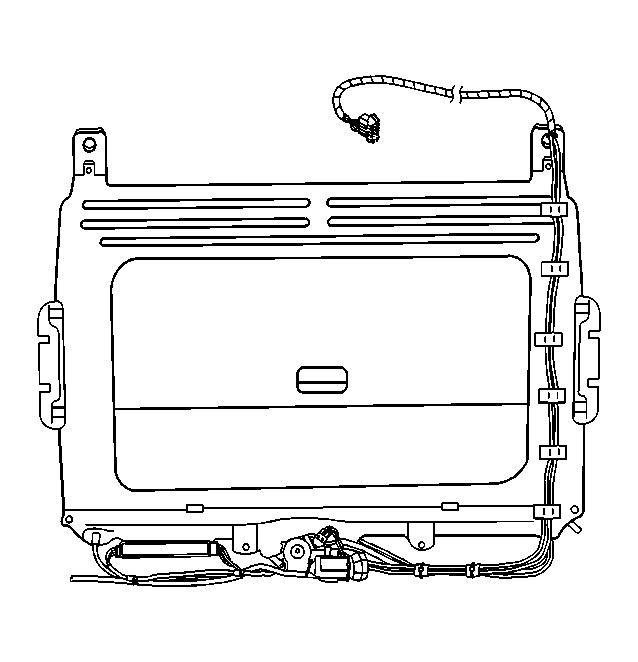

    4. Fig 3: Removing/Installing Sunroof Module Electrical Connector
    GM647217Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the sunroof module.
  5. Install the sunshade panel. Refer to Sunroof Sunshade Panel Replacement .
  6. Install the sunroof window. Refer to Sunroof Window Replacement .
  7. Perform the Initialization/Teach Procedure. Refer to Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor)  or Sunroof Motor/Actuator Initialization/Teach Process (New Motor) .
  8. Inspect for proper operation of the sunroof. Refer to Sunroof Description and Operation (1 Connector System) .
  9. Install the headliner. Refer to Headliner Replacement in Interior Trim.
