SIR Component Views

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Cushion
2	Heated Seat Element - Passenger Back
3	Passenger Presence Seat Sensor
4	Heated Seat Relay
5	Horizontal Motor (part of the Adjuster Assembly)
6	Front Vertical Motor (part of the Adjuster Assembly)
7	Rear Vertical Motor (part of the Adjuster Assembly)
8	Inflatable Restraint Front Passenger Presence System (PPS) Module
9	Seat Adjuster Switch - Passenger

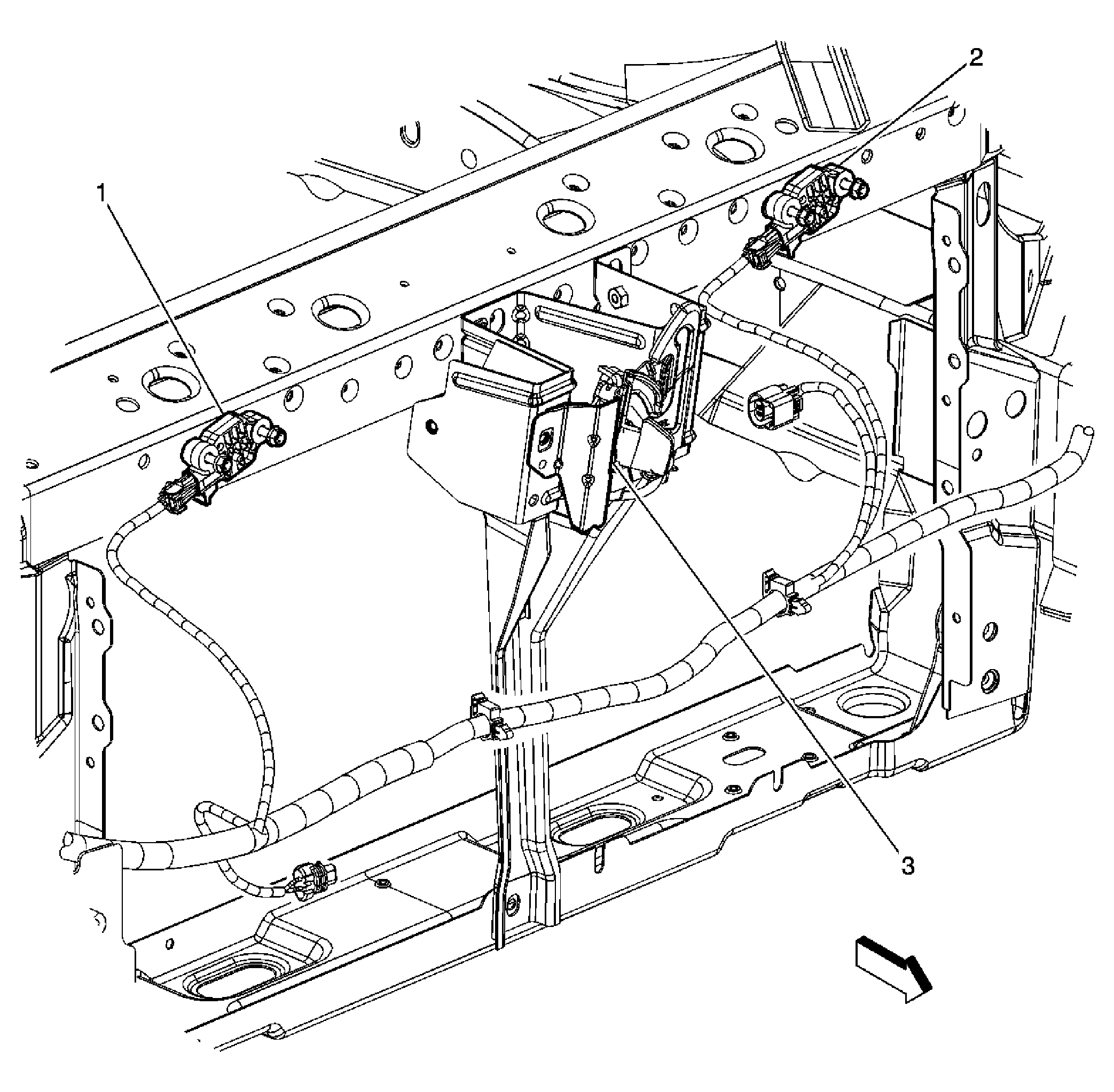

Fig 2: Front of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left
3	Hood Ajar Switch (AP3)

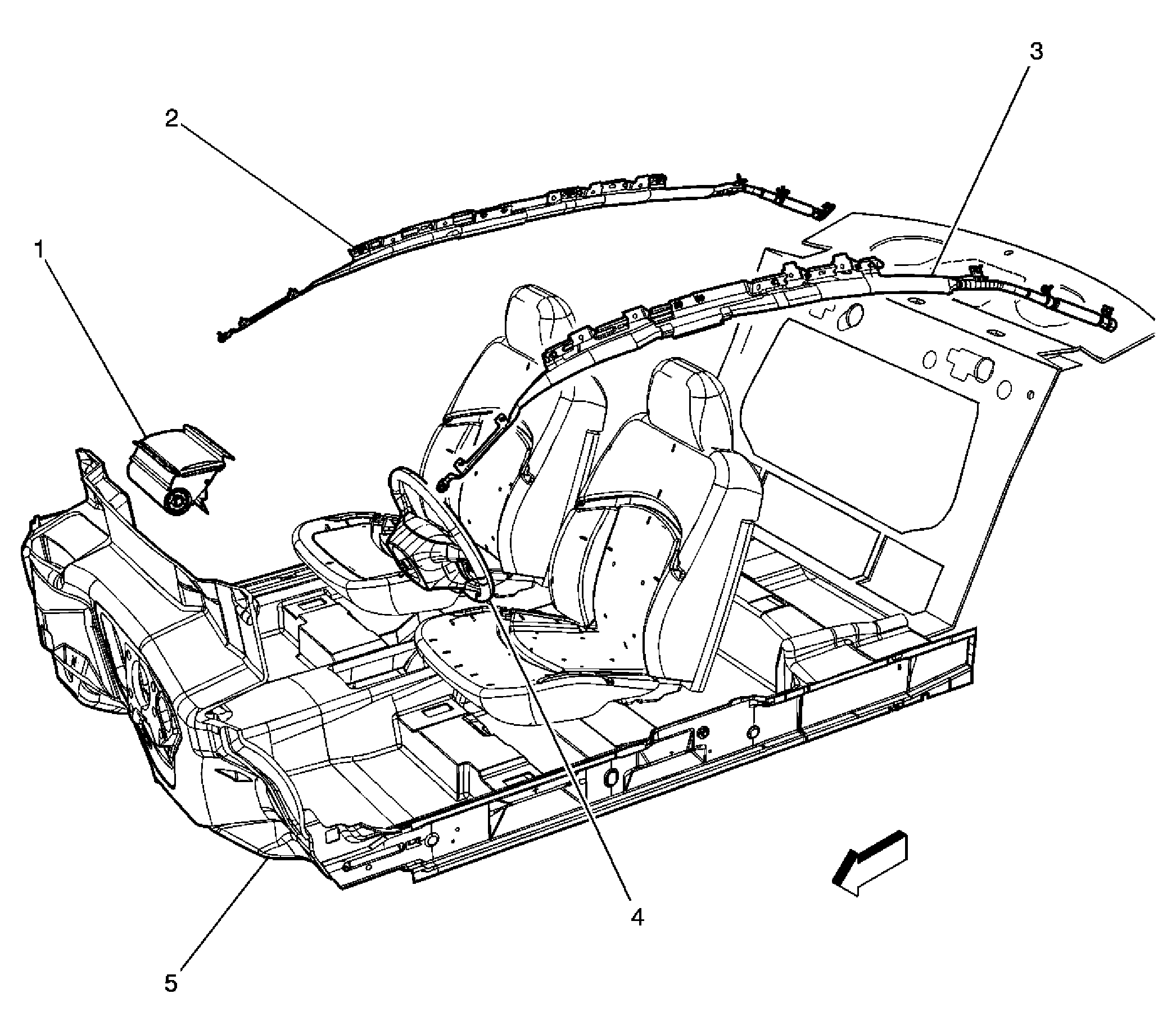

Fig 3: Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module
2	Inflatable Restraint Roof Rail Module - Right (AY1)
3	Inflatable Restraint Roof Rail Module - Left (AY1)
4	Inflatable Restraint Steering Wheel Module
5	Floor Panel

Fig 4: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Door Lock / Window Switch - Driver
4	Outside Rearview Mirror Switch
5	Window Motor - Driver
6	Inflatable Restraint Side Impact Sensor - Left (AY1)
7	Door Lock - Driver

Fig 5: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Front Passenger
2	Door Frame
3	Door Lock - Front Passenger
4	Inflatable Restraint Side Impact Sensor - Right (AY1)
5	Door Lock Switch - Front Passenger
6	Window Switch - Front Passenger
7	Window Motor - Front Passenger

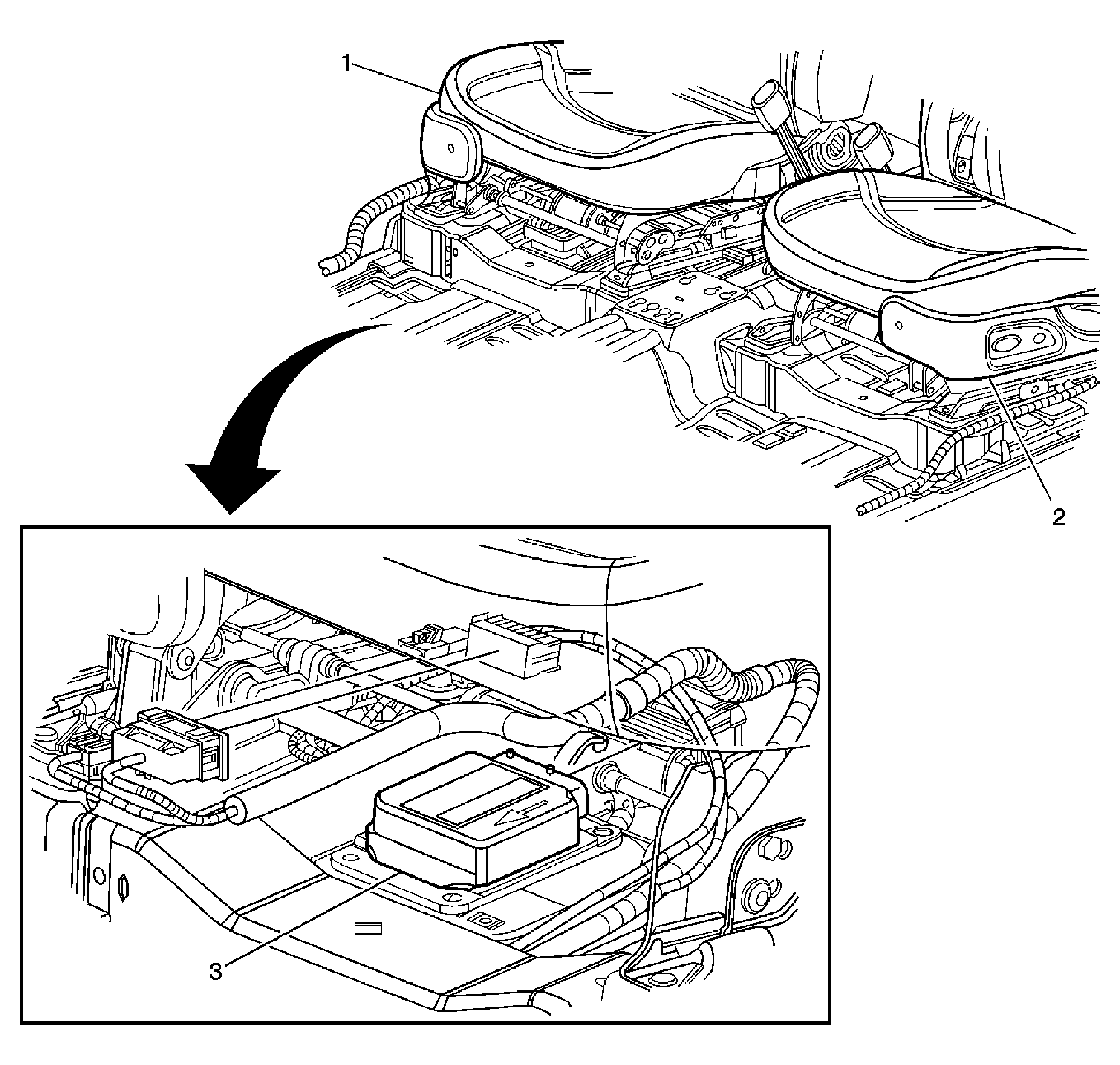

Fig 6: Under the Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Passenger Seat
2	Driver Seat
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
