Front Fender Replacement
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Fender Replacement - Front

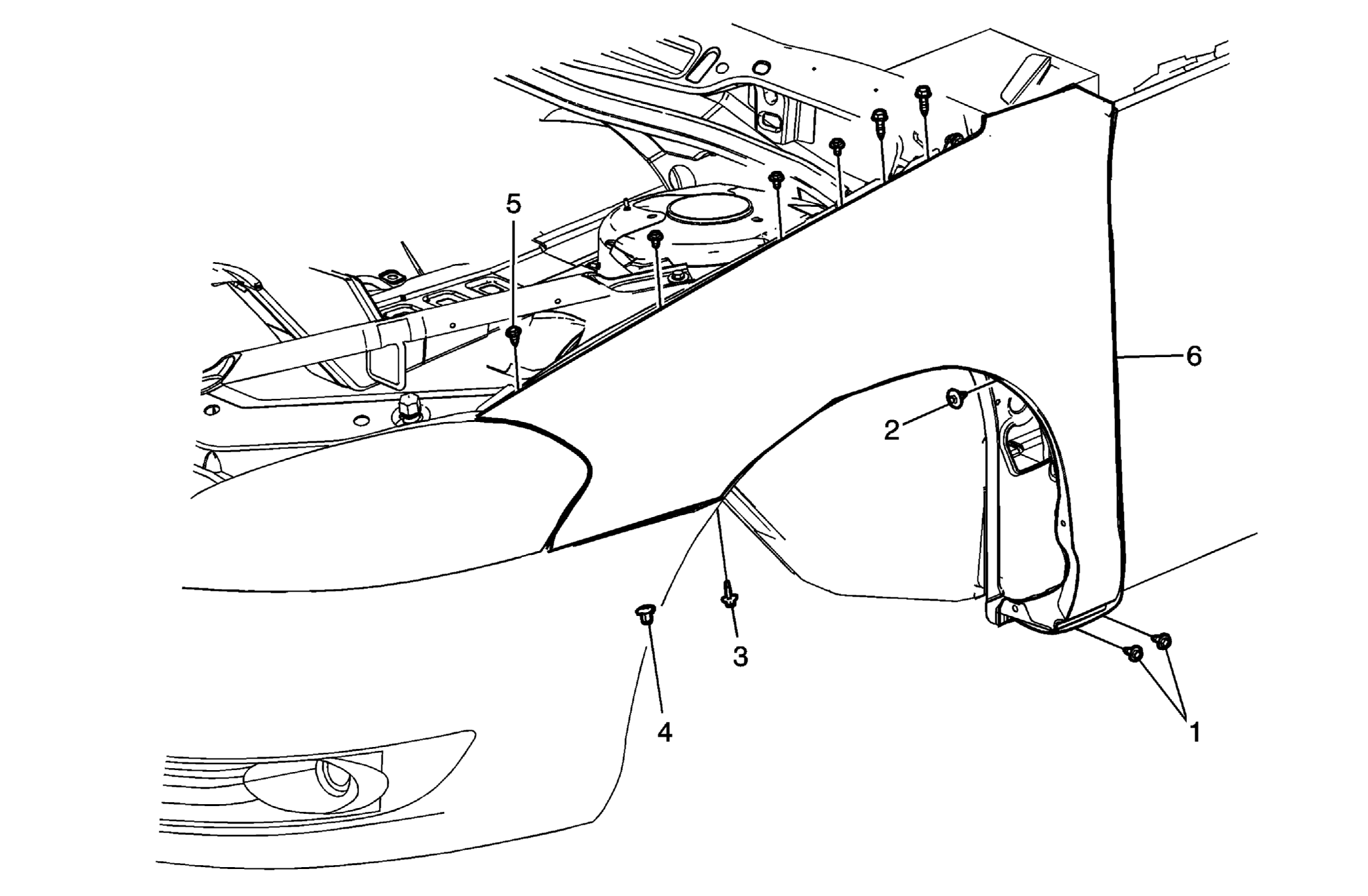

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Front Fender Bolts (Qty: 2) Tighten: 10 N.m (89 lb in) |
| 2 | Front Fender Bolt Tighten: 10 N.m (89 lb in) |
| 3 | Front Fender Bolt Tighten: 10 N.m (89 lb in) |
| 4 | Front Fender Nut Tighten: 10 N.m (89 lb in) |
| 5 | Front Fender Bolts (Qty: 6) Tighten: 10 N.m (89 lb in) |
| 6 | Front Fender |
