Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

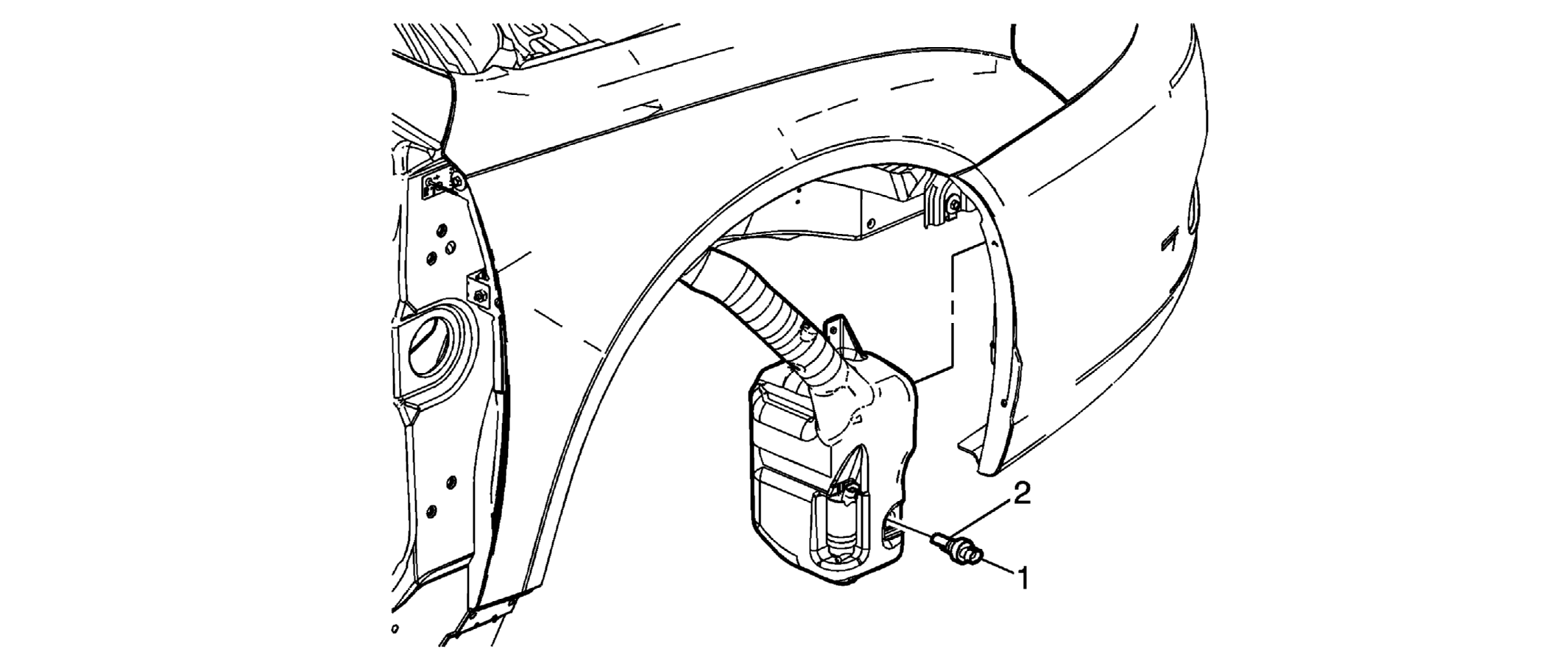

Fig 1: Replacing Washer Solvent Container Level Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the right front wheelhouse panel liner. Refer to Front Fender Liner Replacement . Remove the windshield washer solvent container. Refer to Washer Solvent Container Replacement . Drain the washer solvent into a suitable clean container.
1	Switch, Windshield Washer Level Sensor Tip: Use two flat-bladed tools and pry outward in order to release the level sensor from the washer solvent container grommet.
2	Grommet, Windshield Washer Level Sensor Tip Discard the old level sensor grommet. Install a new grommet into the washer solvent container prior to installing the new level sensor. Lubricate the new grommet with straight washer fluid.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the right front wheelhouse panel liner. Refer to Front Fender Liner Replacement .
Remove the windshield washer solvent container. Refer to Washer Solvent Container Replacement .
Drain the washer solvent into a suitable clean container.

Switch, Windshield Washer Level Sensor
Tip: Use two flat-bladed tools and pry outward in order to release the level sensor from the washer solvent container grommet.

Grommet, Windshield Washer Level Sensor

Tip

Discard the old level sensor grommet.
Install a new grommet into the washer solvent container prior to installing the new level sensor.
Lubricate the new grommet with straight washer fluid.
