Tire Pressure Monitoring System Component Views
WARNING:
This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

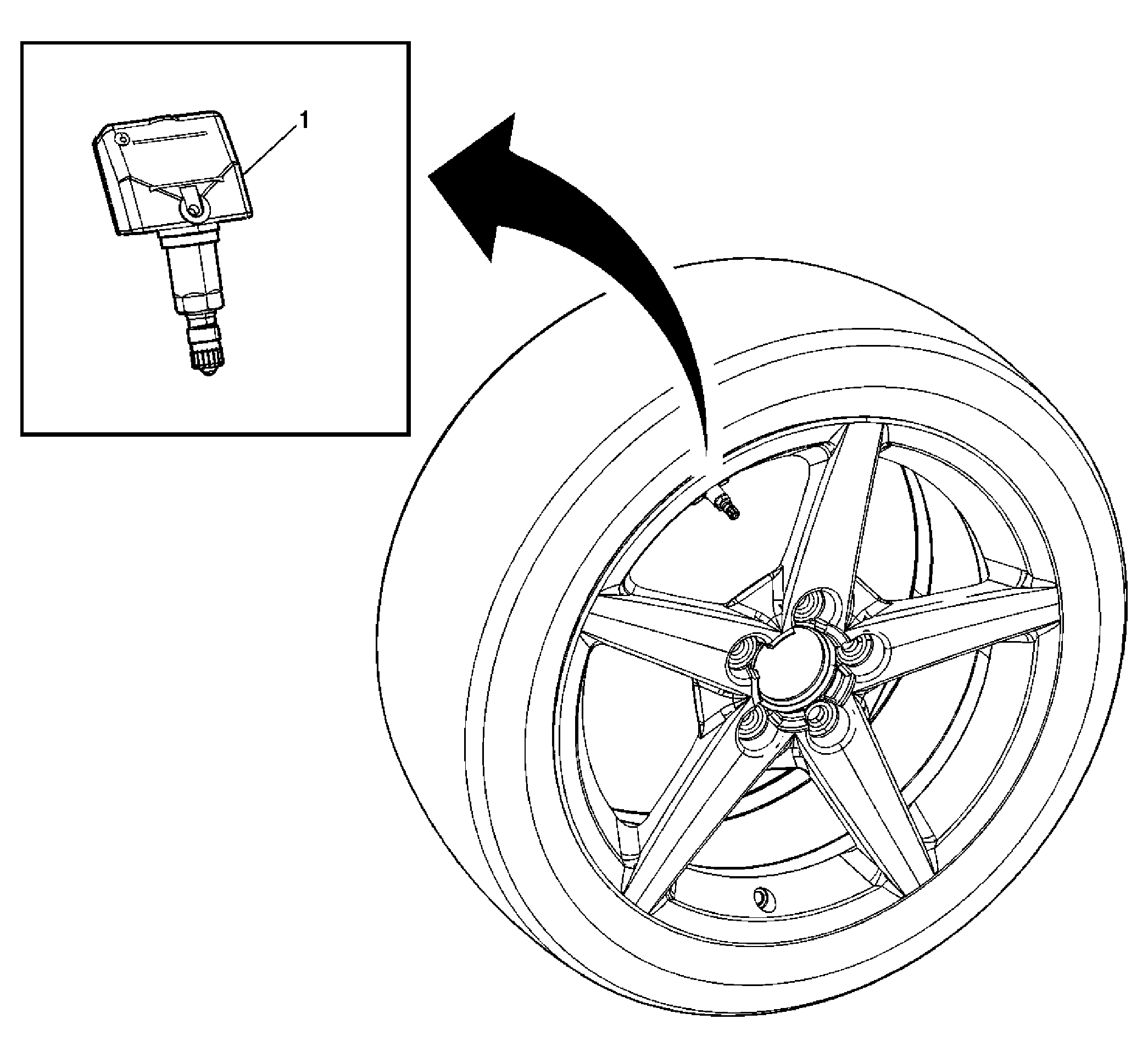

Fig 1: Tire Pressure Monitor Sensor (Typical)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Tire Pressure Monitor Sensor
