Antilock Brake System Component Views

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Lf Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2	Brake Booster Vacuum Sensor (LS4)
3	Windshield Wiper Motor
4	Electronic Brake Control Module (EBCM)
5	A/C Refrigerant Pressure Sensor
6	Transmission Control Module (TCM)
7	Engine Control Module (ECM)
8	G101
9	Inflatable Restraint Front End Sensor - Left

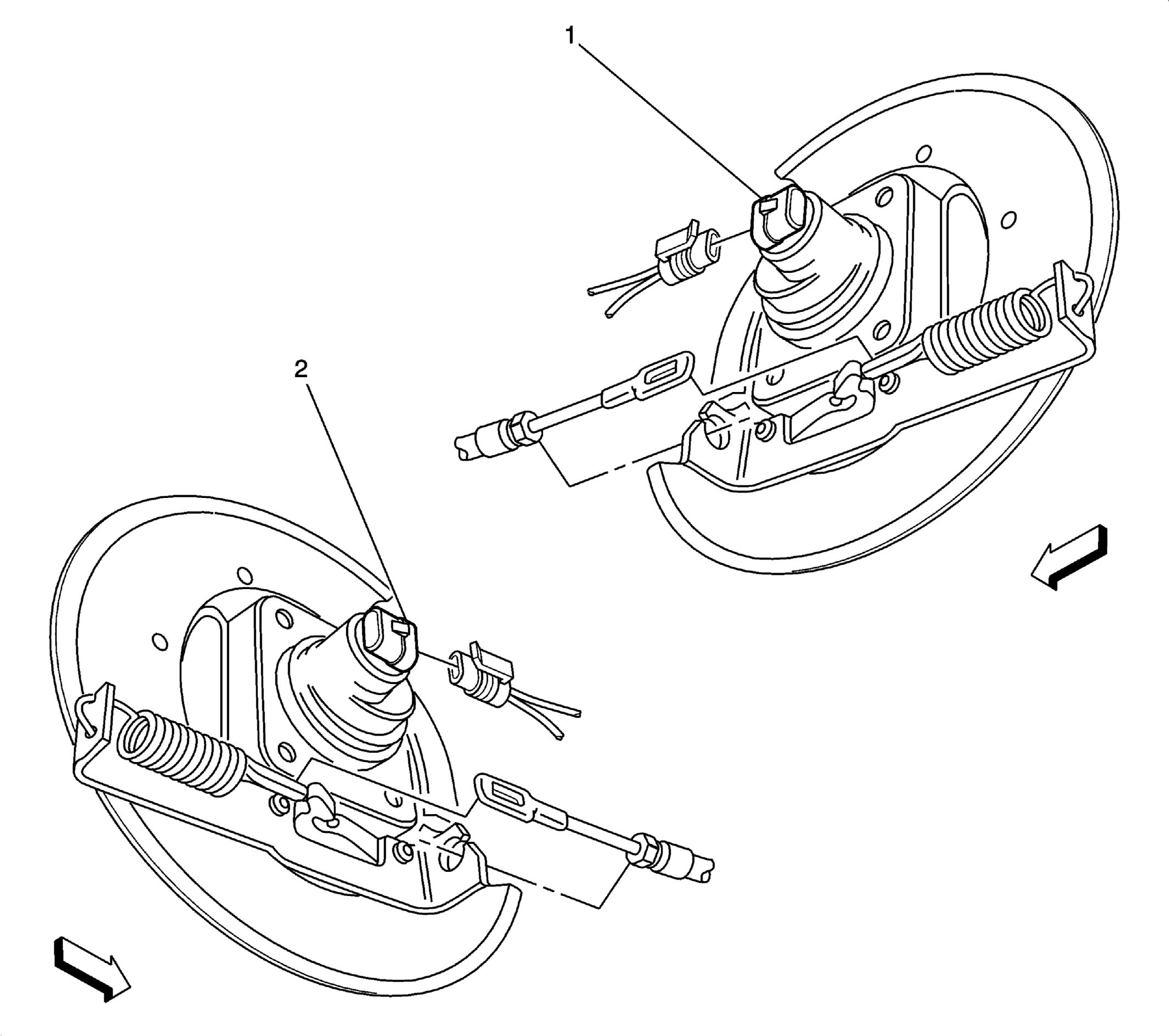

Fig 2: Identifying Right Rear Wheel Speed Sensor (Left Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RR (Wheel Speed Sensor (WSS) - LR Similar)

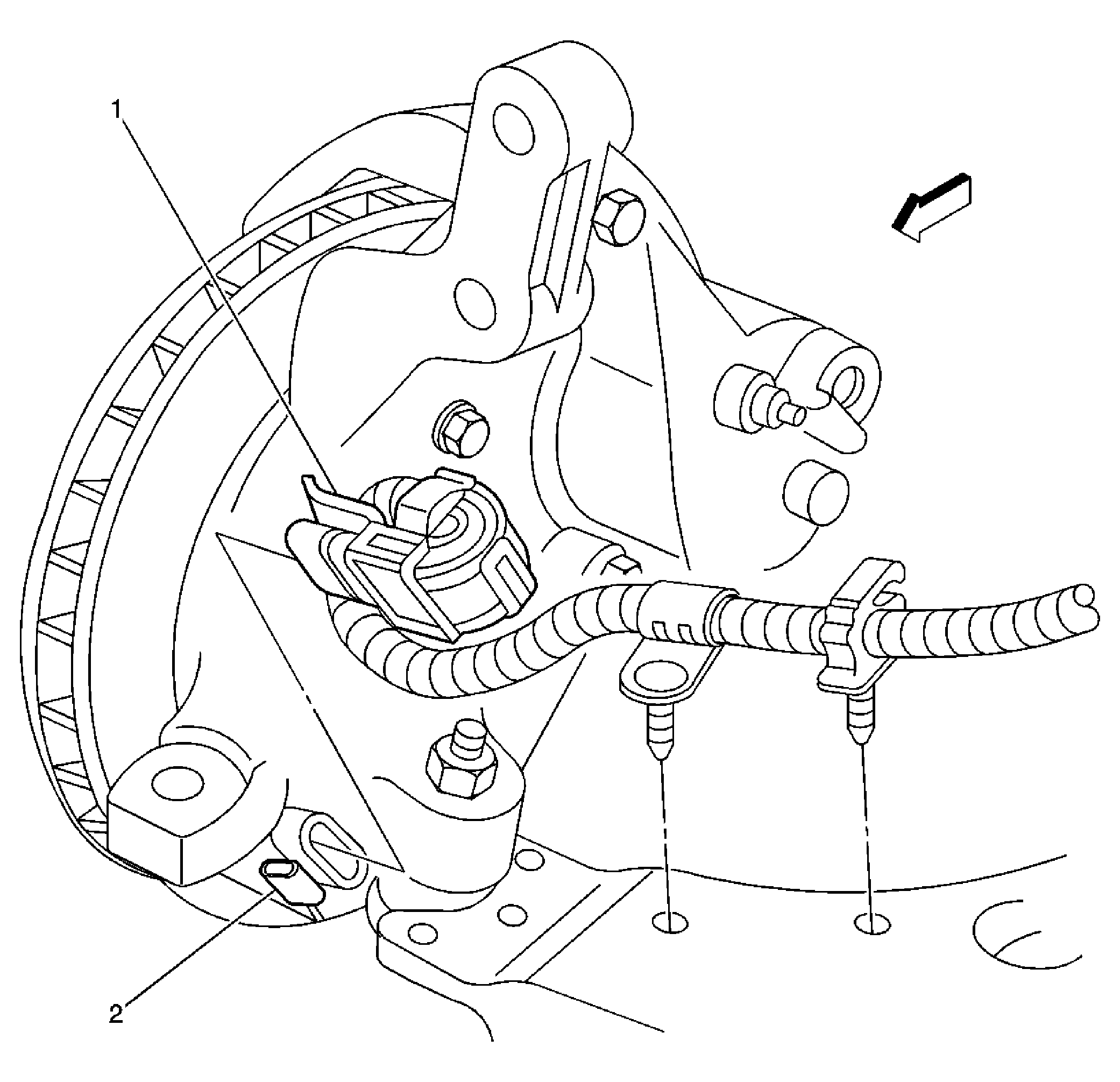

Fig 3: Identifying Right Front Wheel Speed Sensor (Left Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) Connector - RF (Wheel Speed Sensor (WSS) Connector - LF Similar)
2	Wheel Speed Sensor (WSS) - RF (Wheel Speed Sensor (WSS) - LF Similar)
