Wiper Motor, Wiper System Module Replacement

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

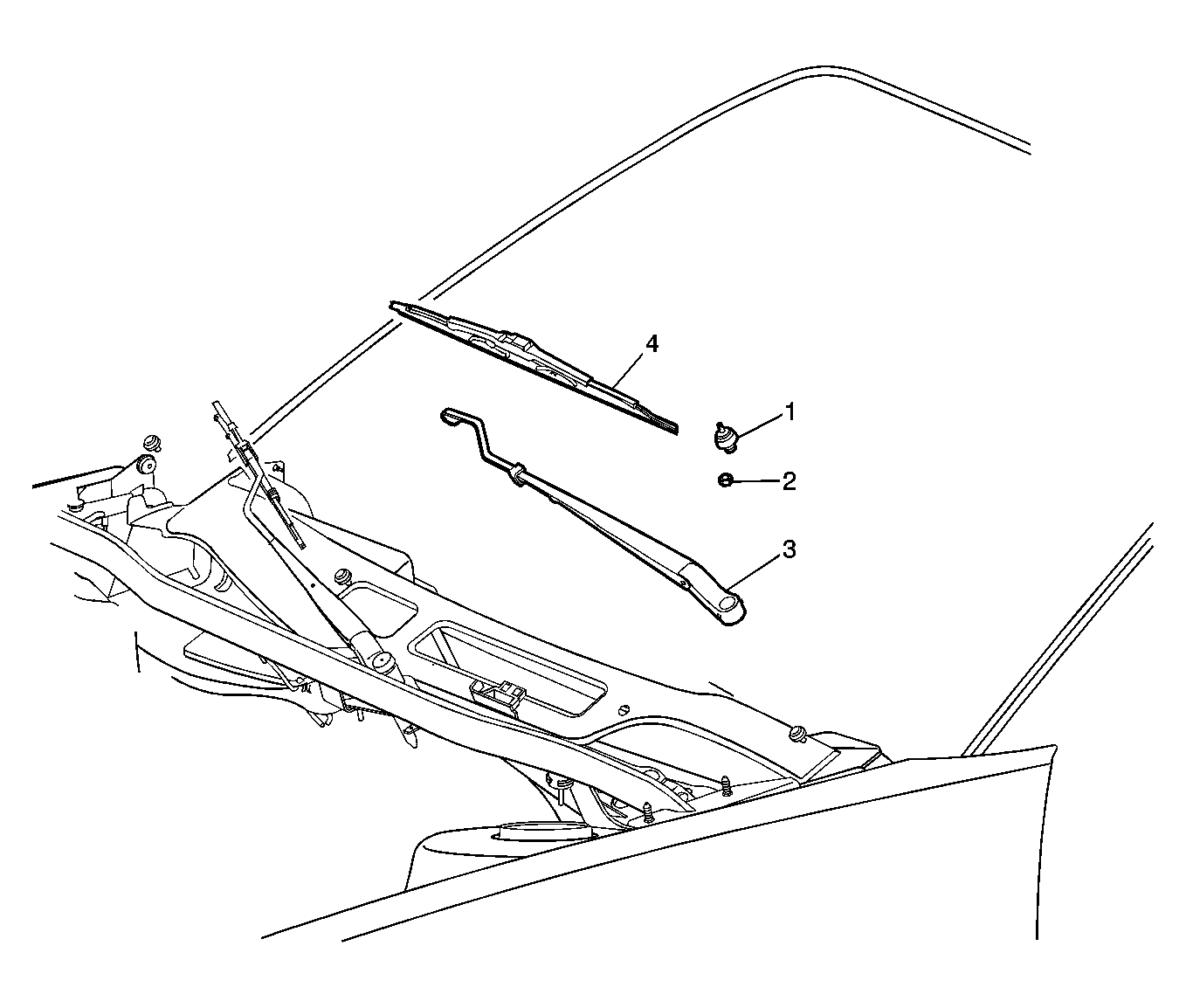

Fig 1: Wiper Arm, Blade & Insert - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Wiper System Module Replacement Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm, Blade, Insert Replacement - Front . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
1	Bolt, Wiper System Module (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Nut, Wiper System Module (Qty: 1) Tighten: 10 N.m (89 lb in)
3	Nut, Wiper Motor (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Wiper Drive System Module
5	Wiper Motor Tip: Disconnect the electrical connector.
