Sun Load Sensor Replacement

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

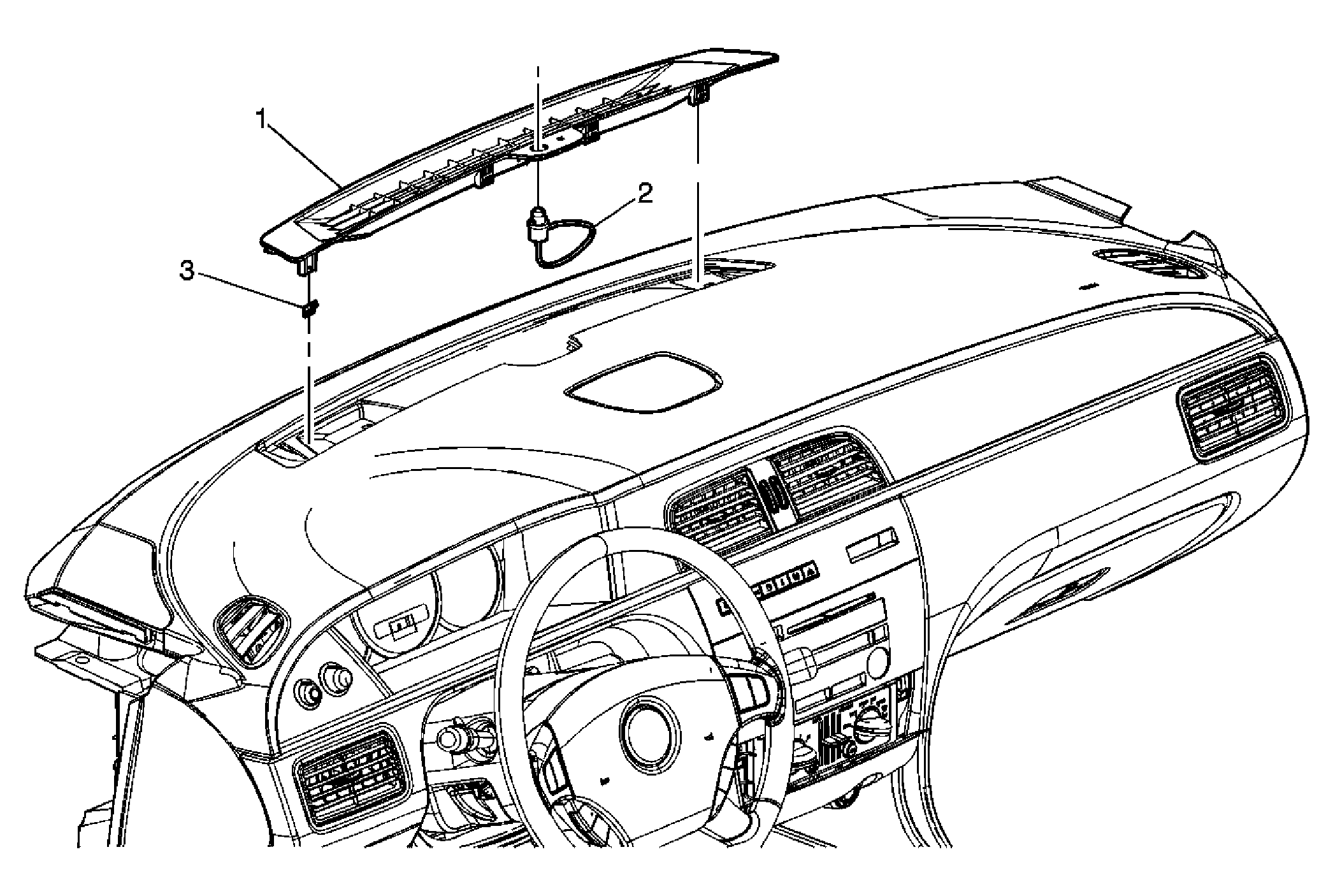

Fig 1: Daytime Running Lamps (DRL) Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Outlet, Air Defroster Tip: Held in with Qty: 4 clips.
2	Sensor, Sun Load Tip: Disconnect electrical connector.
