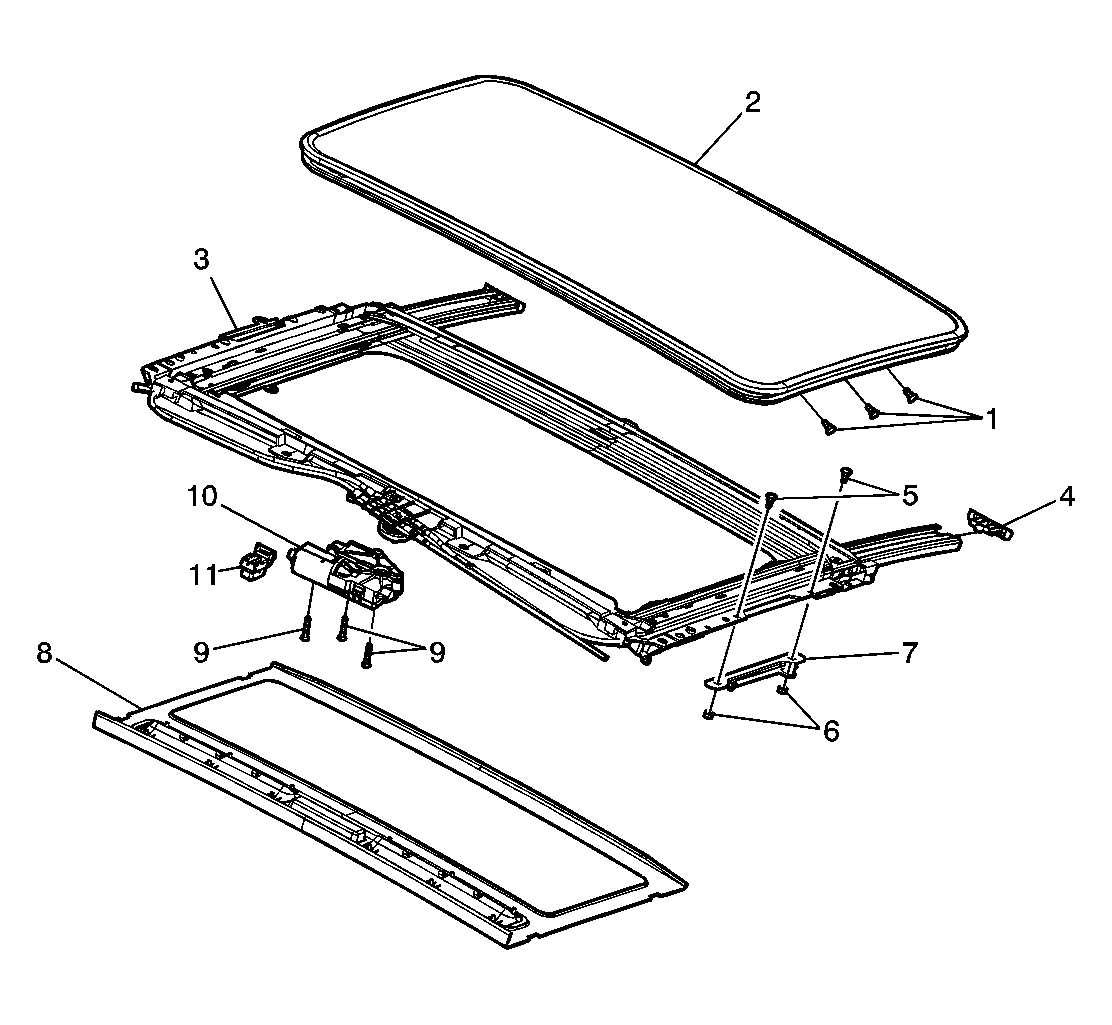

Power Sunroof Disassembled View
WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Sunroof Window Bolt/Screw |
| 2 | Sunroof Window Panel |
| 3 | Sunroof Module Assembly |
| 4 | Sunroof Sunshade Stop |
| 5 | Sunroof Module Assembly Bolt |
| 6 | Sunroof Module Assembly Nut |
| 7 | Sunroof Module Assembly Bracket |
| 8 | Sunroof Shade |
| 9 | Sunroof/Actuator/Motor Bolt/Screw |
| 10 | Sunroof Motor |
| 11 | Sunroof Switch |
