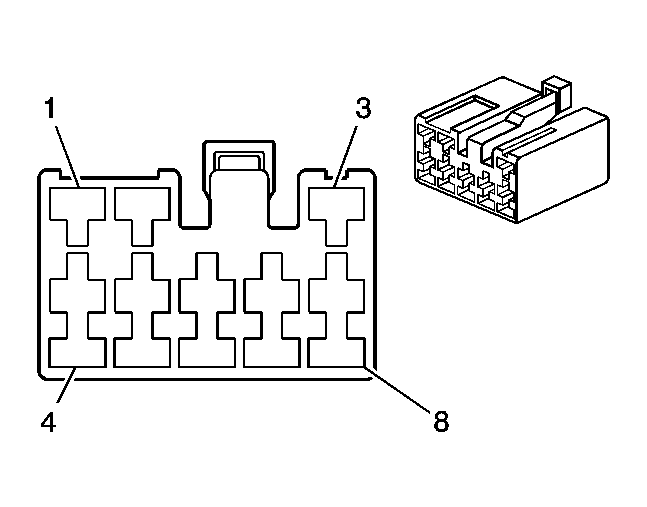

Lamp Control Module Connector End View
Lamp Control Module Connector End View/Part Information/Terminal Identification (Except North America)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |
| 2 | BN/D-BU | 1081 | Park Lamp On Signal |
| 3 | BN | 1080 | Park Lamp Relay Control |
| 4 | OG | 640 | Battery Positive Voltage |
| 5 | BK | 450 | Ground |
| 6 | PU | 126 | Left Front Open Switch Signal |
| 7 | L-GN | 80 | Key in Ignition Switch Signal |
| 8 | - | - | Not Used |
