Installation ProcedureDescription and Operation

  1. Install the air cleaner assembly.

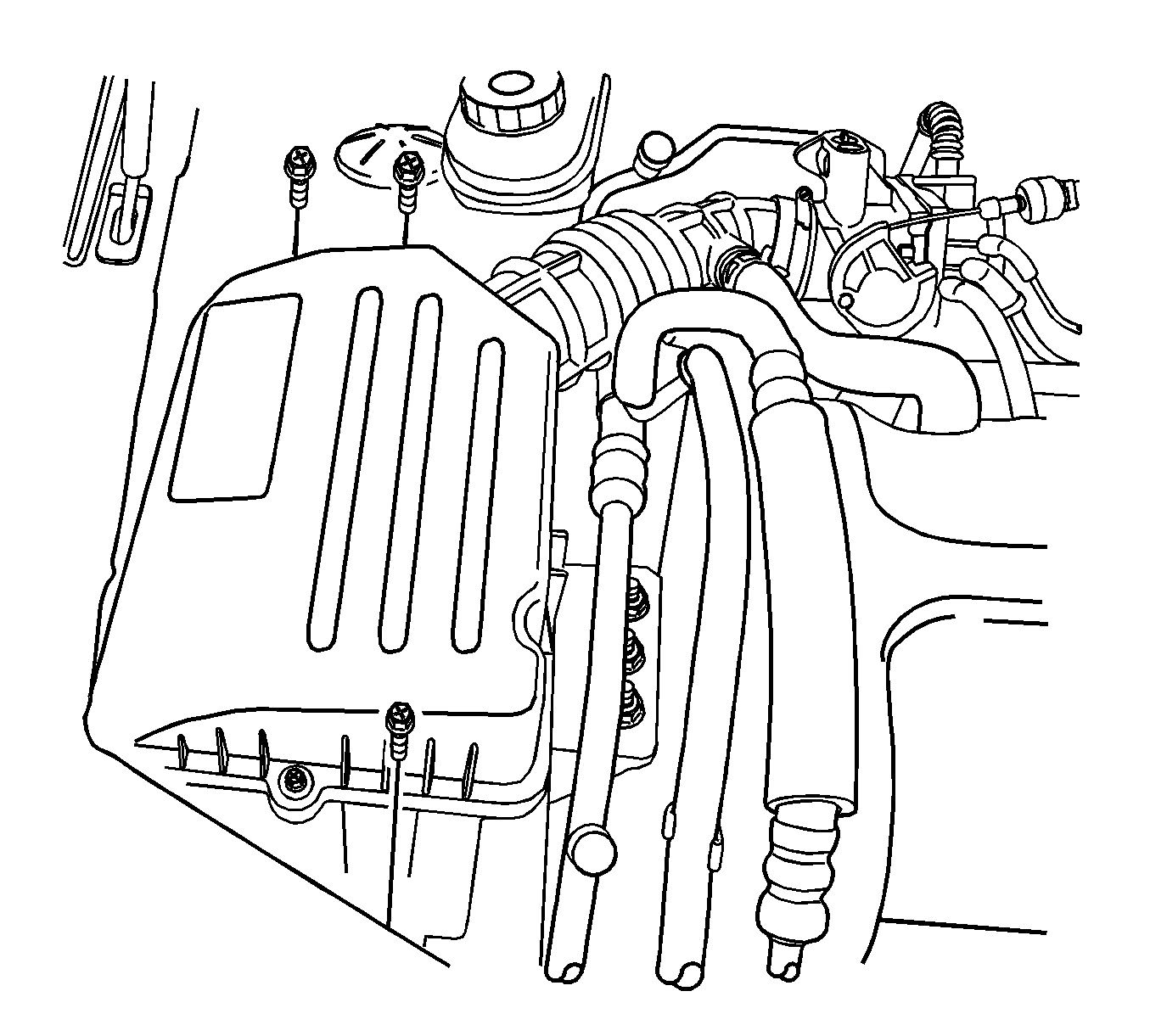

    2. Fig 1: Location Of Air Cleaner
    GM1371859Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the air cleaner assembly attachment bolts.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  3. Install the air cleaner intake duct to the air cleaner assembly.

    Tighten:  Tighten the air cleaner intake duct clamp to 3 N.m (27 lb in).
