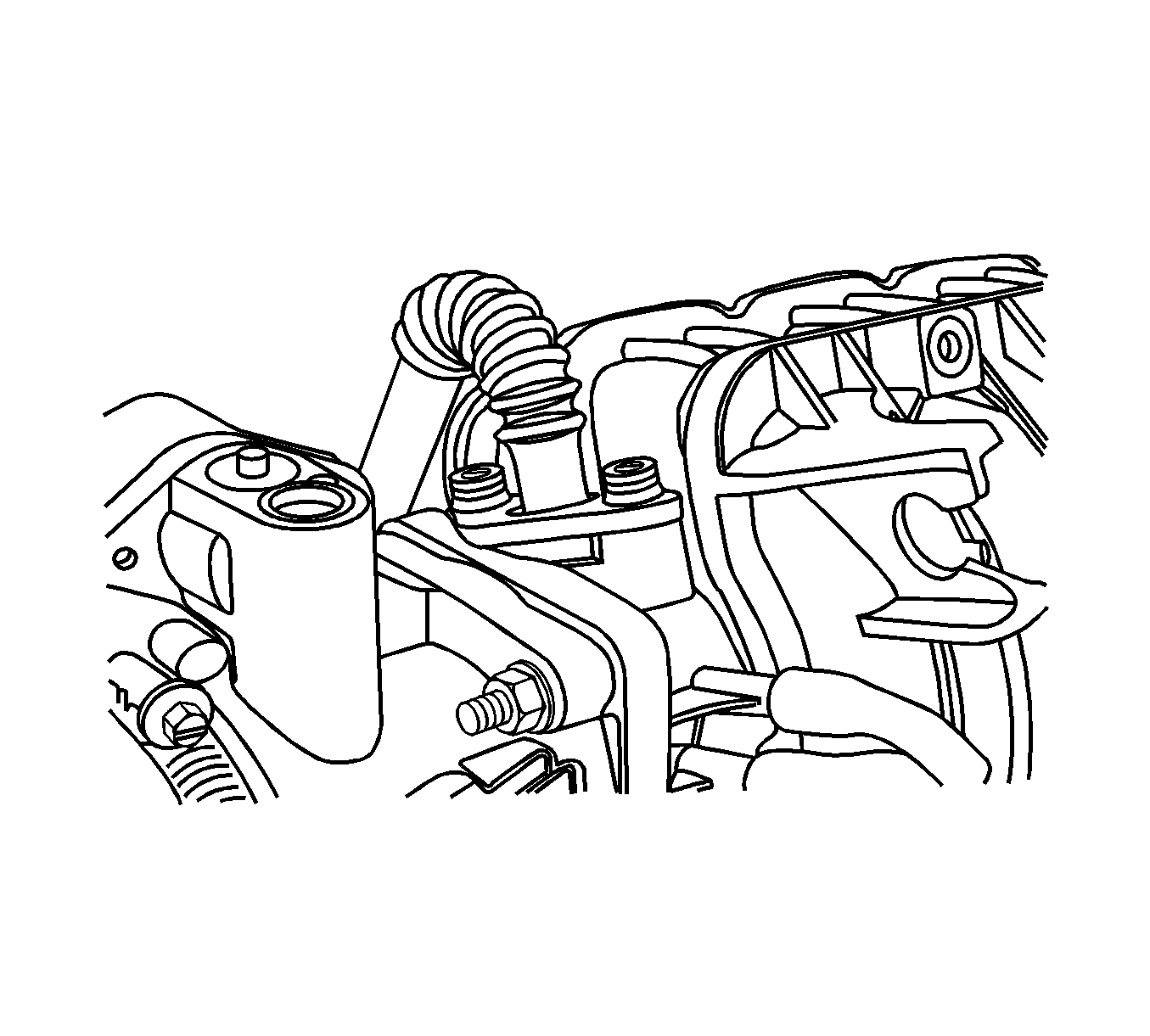

    Fig 1: View Of Exhaust Gas Recirculation Pipe Mounting And Bolts
    GM1528366Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust gas recirculation (EGR) pipe mounting bolts from the intake manifold.

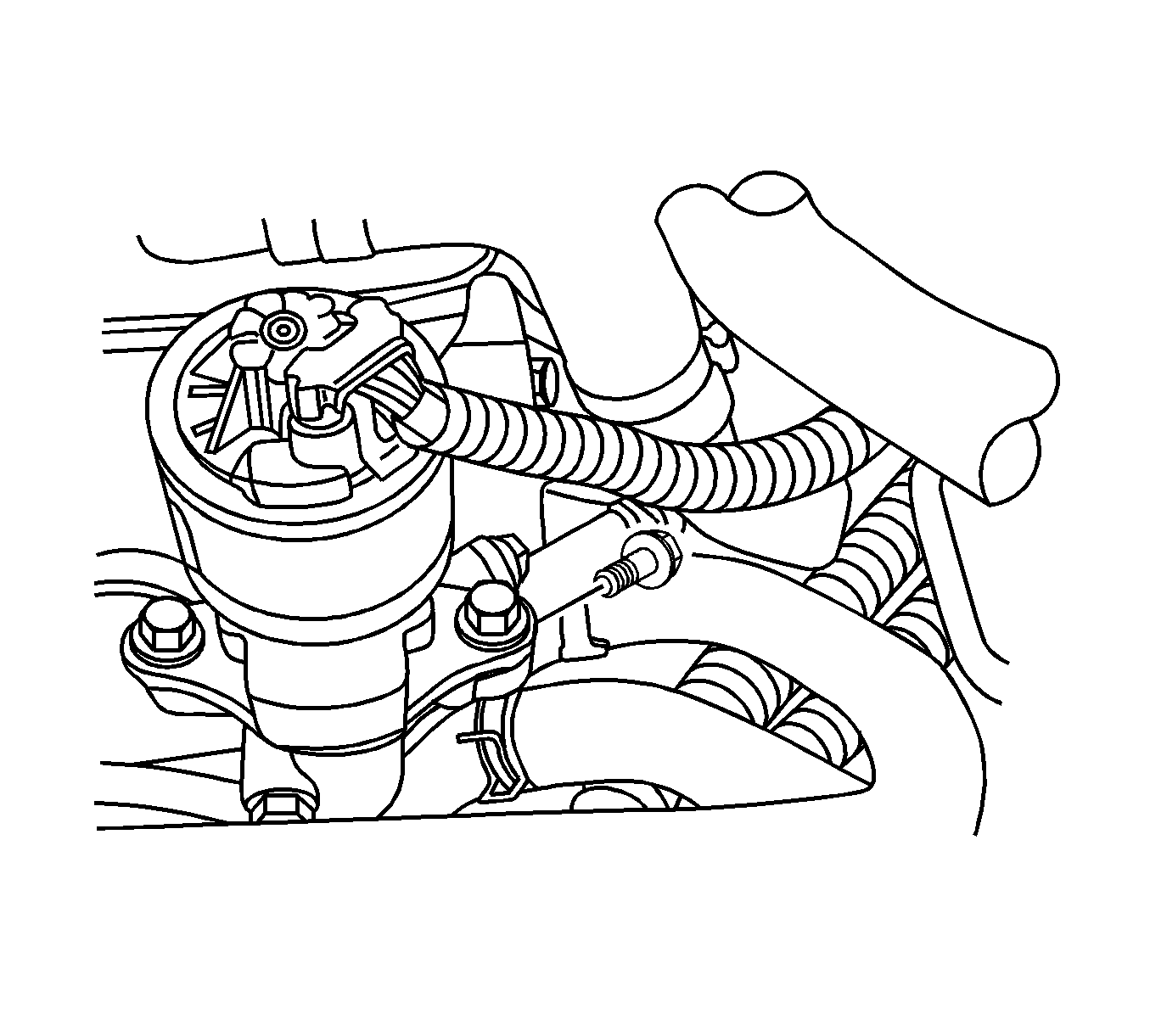

    2. Fig 2: Removing And Installing EGR Pipe Mounting Bolts From EGR Valve
    GM1528365Courtesy of GENERAL MOTORS CORP.
  2. Remove the EGR pipe mounting bolts from the EGR valve.
  3. Raise and suitable support the vehicle. Refer to Lifting and Jacking the Vehicle .

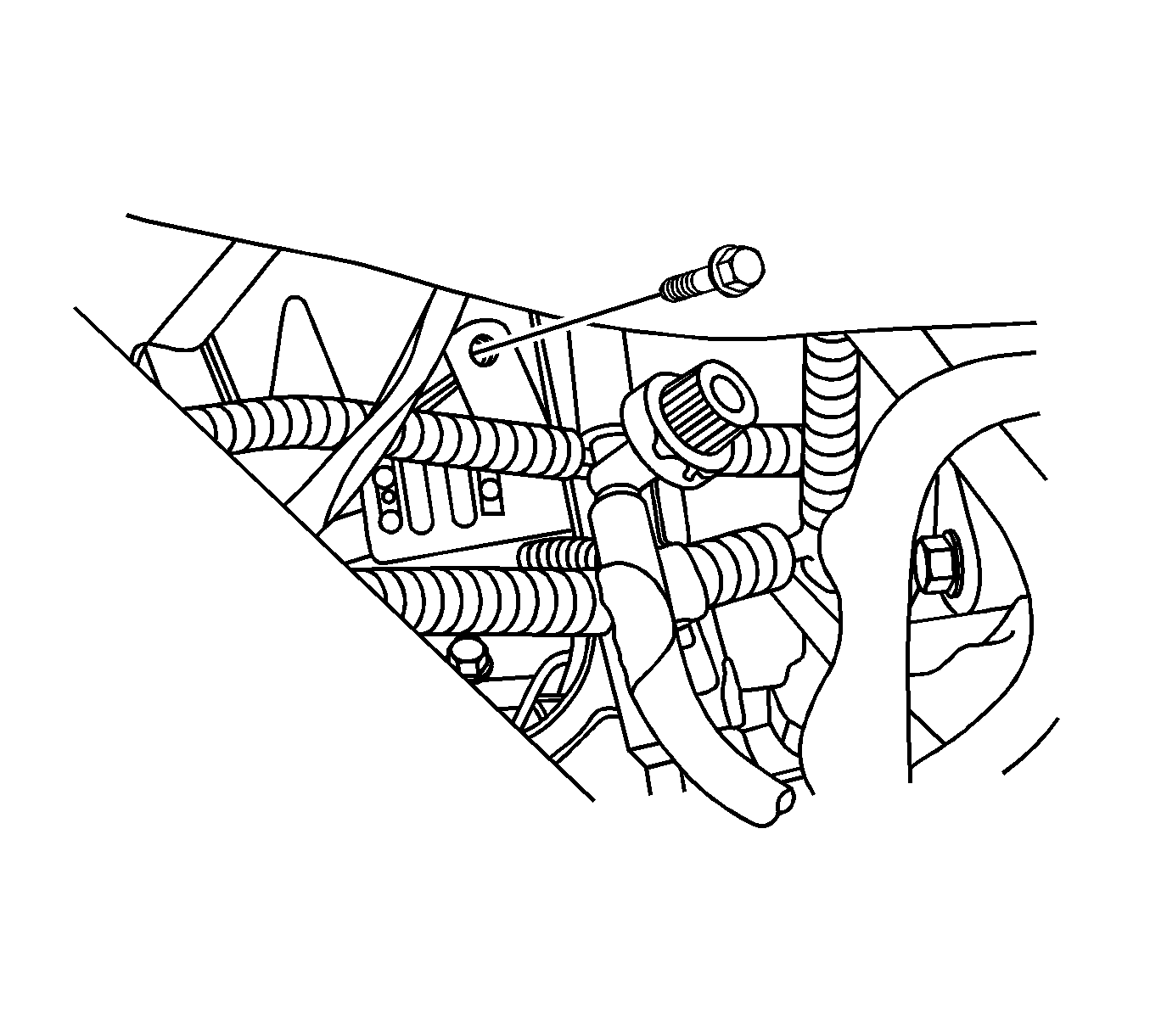

    4. Fig 3: View Of EGR Pipe Lower Mounting Bolt
    GM1528364Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower mounting bolt attaching the EGR pipe to the intake manifold.
  5. Remove the EGR pipe.
