Installation ProcedureFuel Sender Assembly Replacement

    Fig 1: View of FTP Sensor
    GM1376165Courtesy of GENERAL MOTORS CORP.
  1. Install the FTP sensor to the fuel sender assembly.

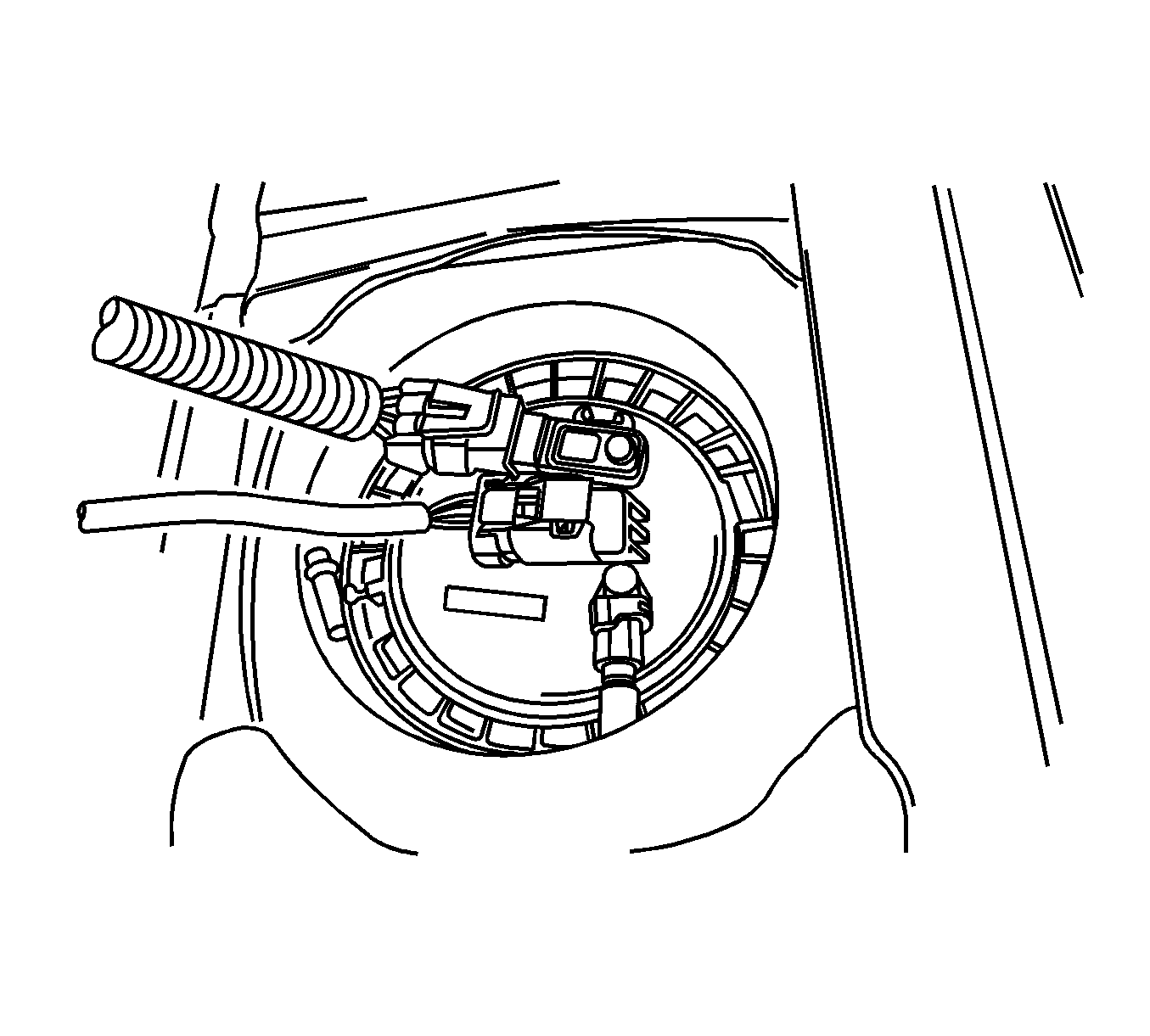

    2. Fig 2: View of Fuel Tank Pressure Sensor Electrical Connector
    GM1376164Courtesy of GENERAL MOTORS CORP.
  2. Connect the FTP sensor electrical connector.

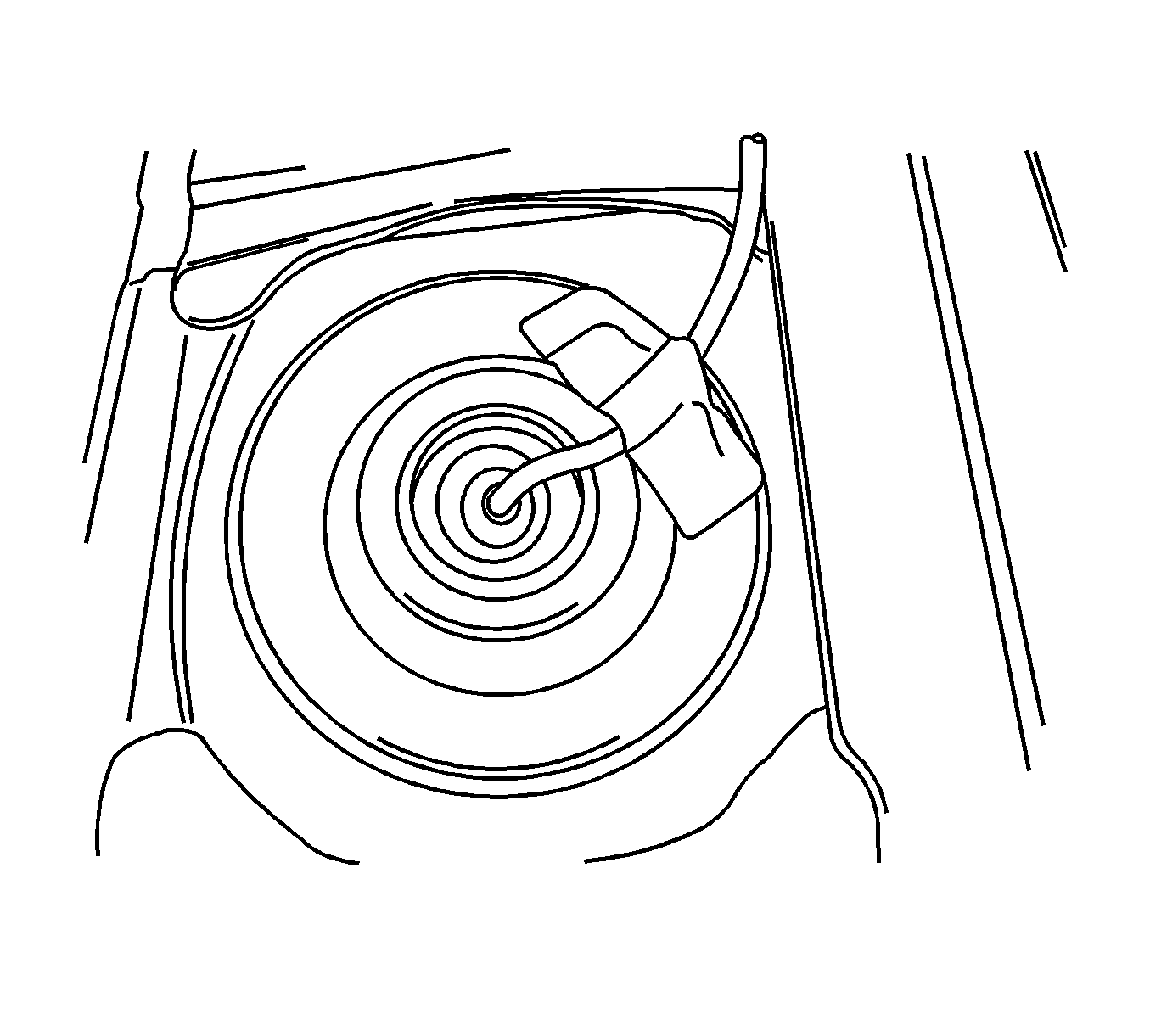

    3. Fig 3: Removing And Installing Fuel Pump Access Cover
    GM1376163Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel pump access cover.
  4. Install the rear seat. Refer to Rear Seat Cushion Replacement .
  5. Connect the negative battery cable.
  6. Install the fuel fill cap.
