Shift Program Switch Connector End View

Shift Program Switch Connector End View/Part Information/Terminal Identification

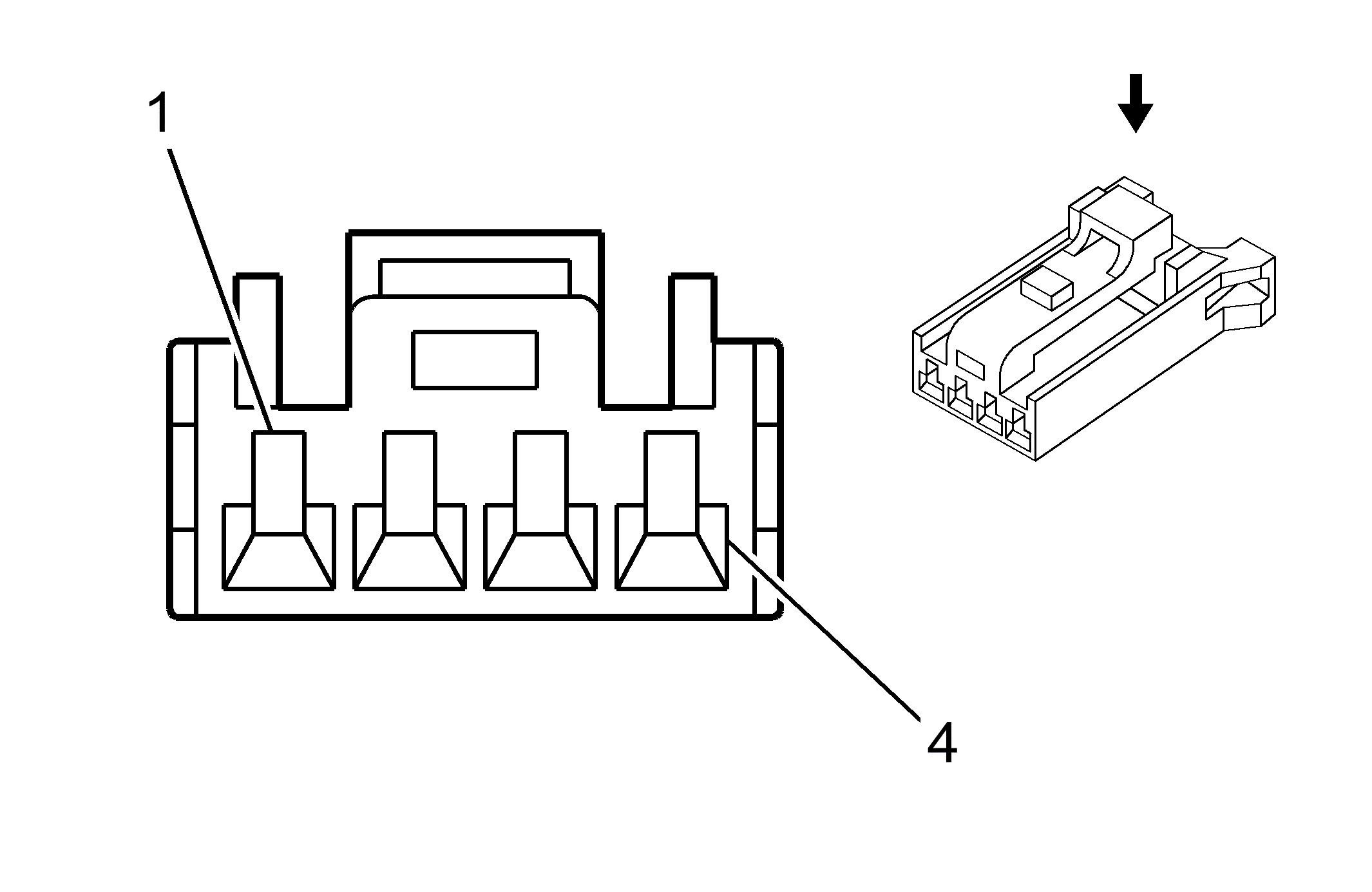

GM1467047Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610366
  • 4-Way F PCB 040 Series (WH)
Pin Wire Color Circuit No. Function
1 D-GN/WH - Transmission Hold Signal
2 BN/WH - Instrument Illumination Supply Voltage
3 BK - Instrument Illumination Dimming Control/Ground
4 BK - Ground
