SIR Identification Views

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .

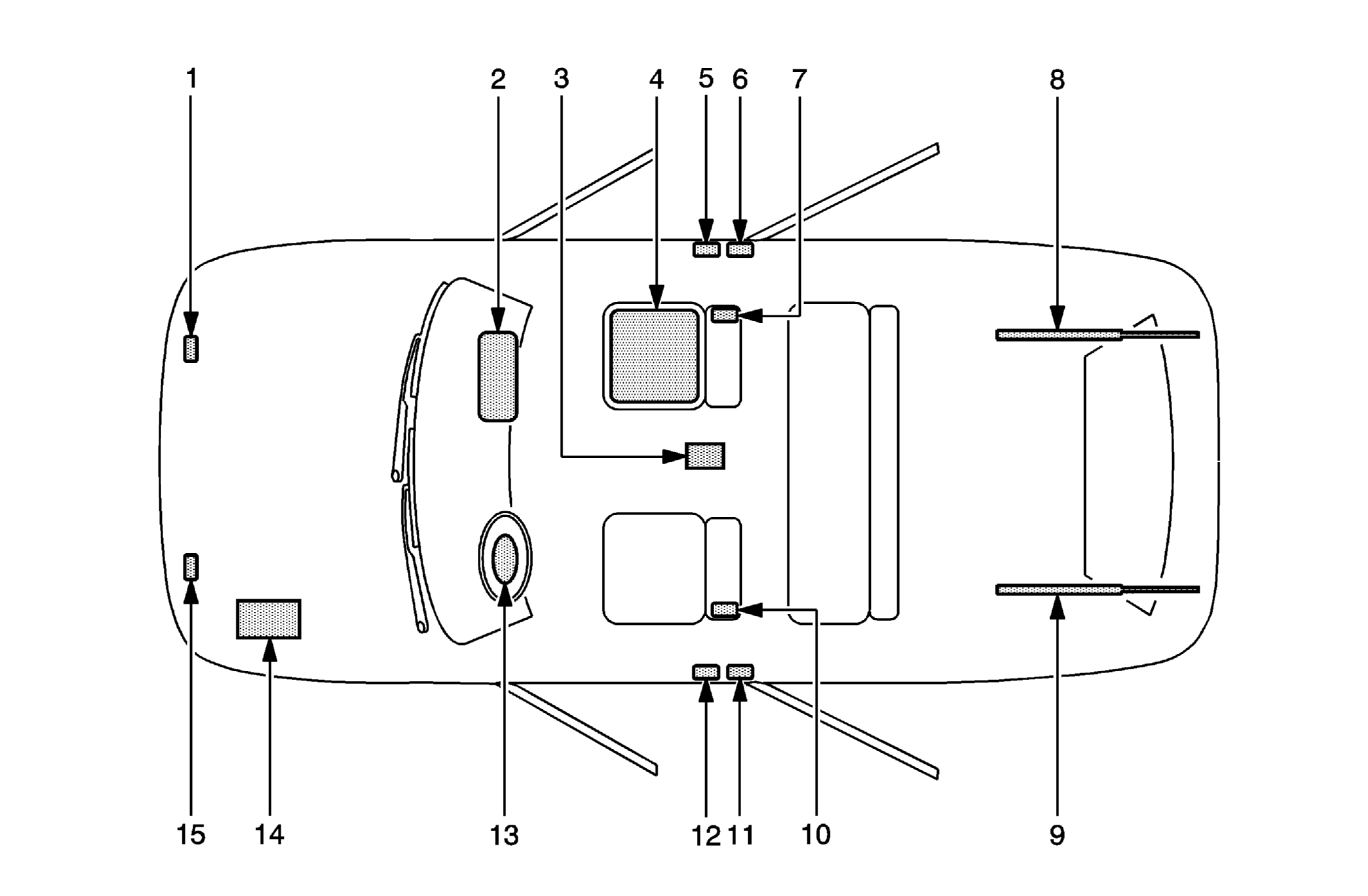

Fig 1: North American Models

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front End Sensor-Located on the right front of the vehicle in the engine compartment
2	I/P Air Bag-Located at the top right under the instrument panel
3	Sensing and Diagnostic Module (SDM)-Located underneath the center console
4	Passenger Presence System (PPS)-Located on the passenger front seat underneath the seat bottom trim
5	Seat Belt Pretensioner-Located under the center pillar trim near the bottom
6	RH Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom
7	RF Side Impact Air Bag-Located on the seat back of passenger seat
8	Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side (Hatchback Models)
9	Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side (Hatchback Models)
10	LF Side Impact Air Bag-Located on the seat back of driver seat
11	LH Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom
12	Seat Belt Pretensioner-Located under the center pillar trim near the bottom
13	Steering Wheel Air Bag-Located on the steering wheel
14	Vehicle Battery-Located under the hood on the right side
15	Left Front End Sensor-Located on the left front of the vehicle in the engine compartment

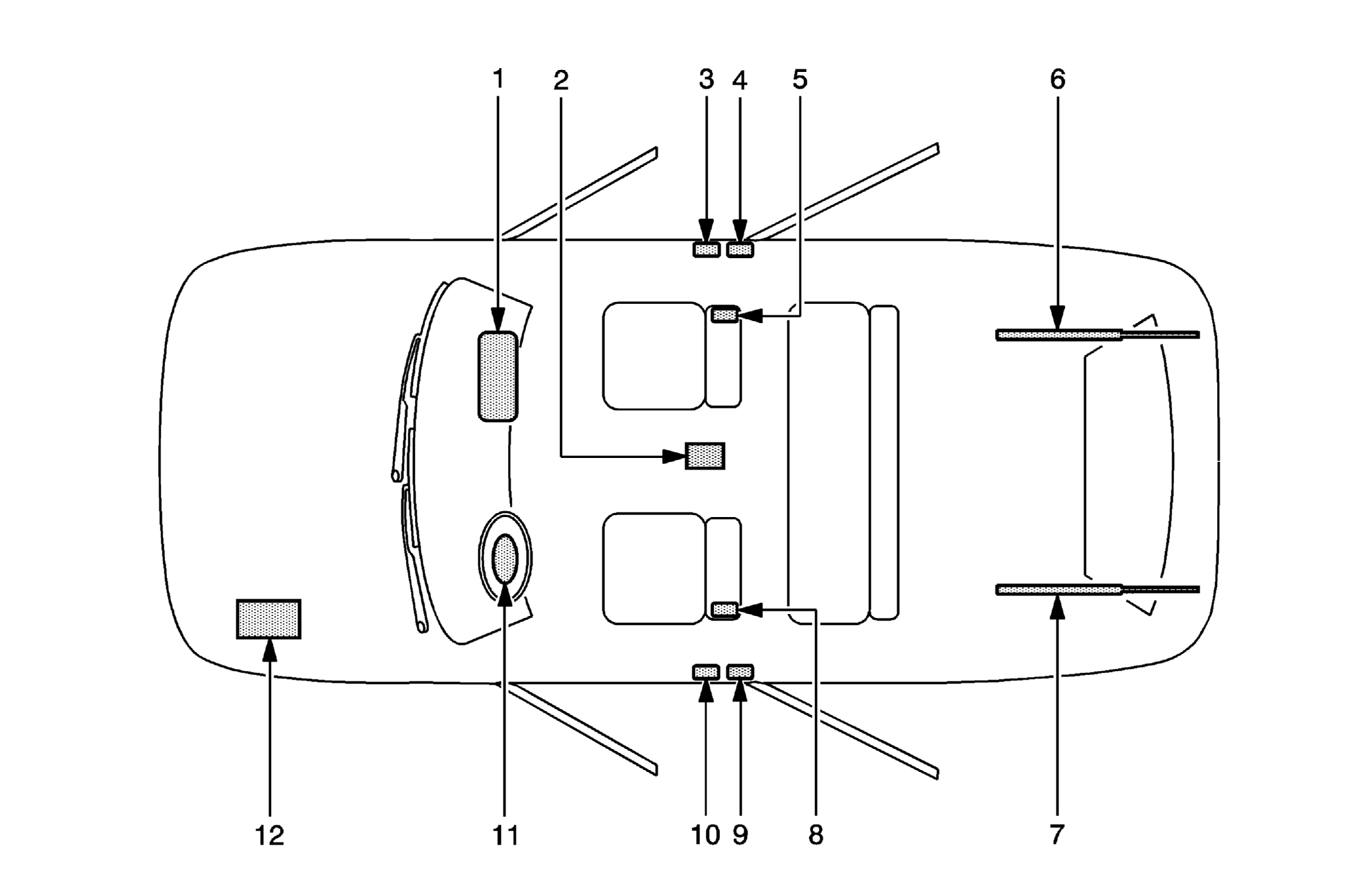

Fig 2: Except North American Models

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Air Bag-Located at the top right under the instrument panel
2	Sensing and Diagnostic Module (SDM)-Located underneath the center console
3	Seat Belt Pretensioner-Located under the center pillar trim near the bottom
4	RH Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom
5	RF Side Impact Air Bag-Located on the seat back of passenger seat
6	Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side (Hatchback Models)
7	Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side (Hatchback Models)
8	LF Side Impact Air Bag-Located on the seat back of driver seat
9	LH Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom
10	Seat Belt Pretensioner-Located under the center pillar trim near the bottom
11	Steering Wheel Air Bag-Located on the steering wheel
12	Vehicle Battery-Located under the hood on the right side
