Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

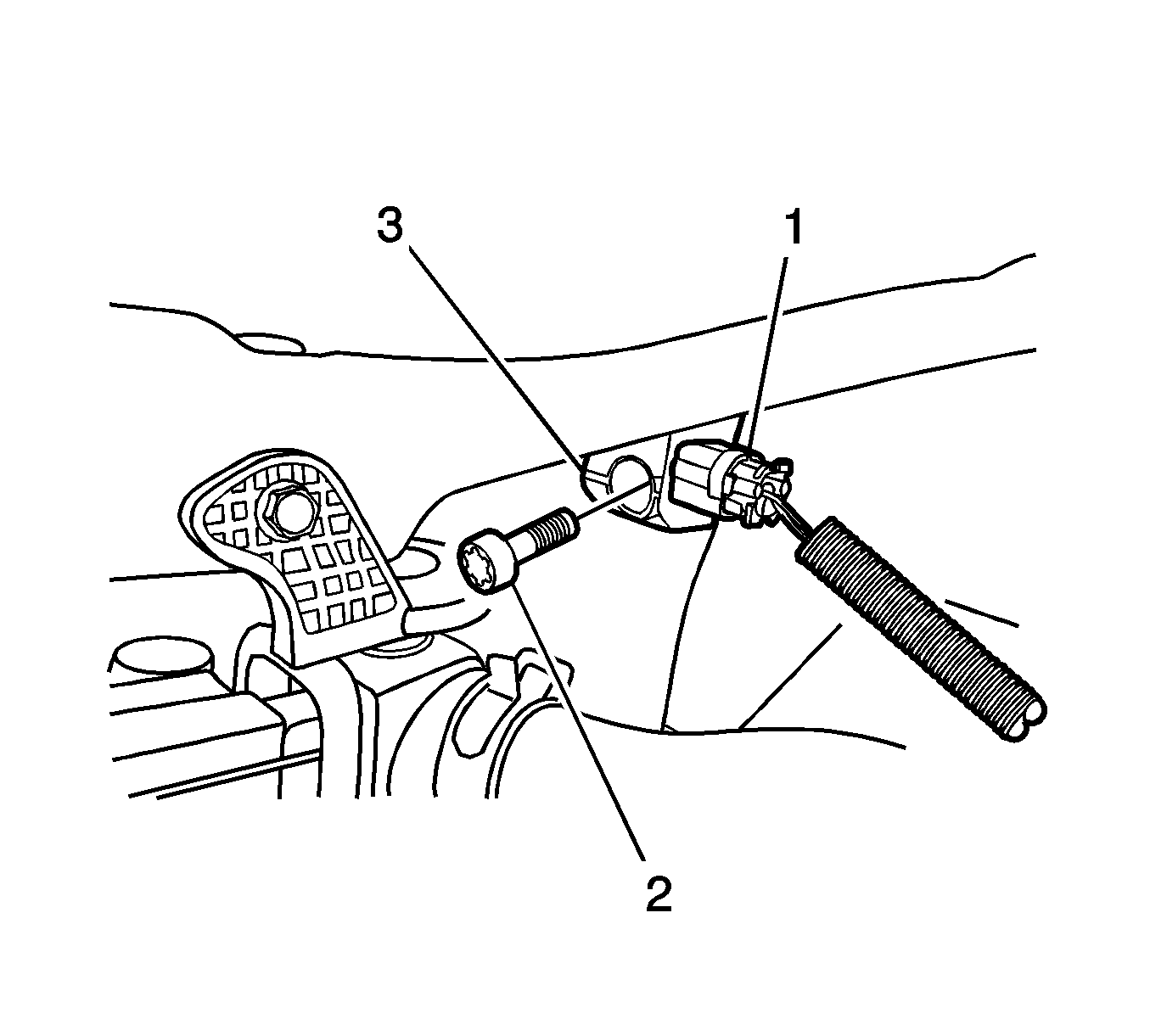

    Fig 1: Air Bag Sensor
    GM1786225Courtesy of GENERAL MOTORS CORP.
  1. Install the front air bag sensor.
    2. NOTE: Refer to Fastener Notice .
  2. Install the front air bag sensor mounting bolt (2).

    Tighten:  Tighten the side air bag sensor mounting bolts to 10 N.m (89 lb in).

  3. Connect the connector (1) to the front air bag sensor (3).
  4. Connect the negative battery cable.
