Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

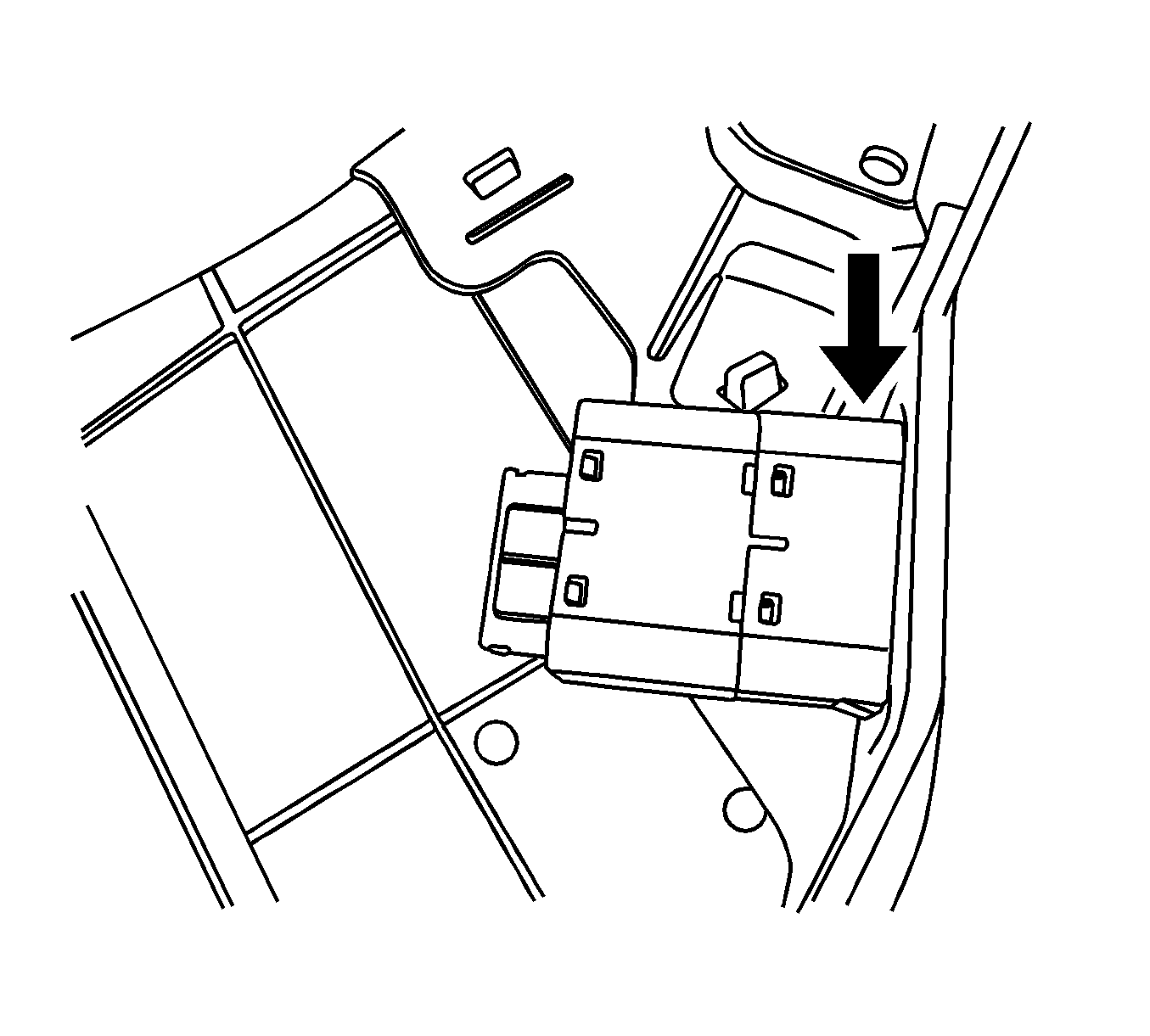

    Fig 1: Passenger Air Bag Disable Switch
    GM1724873Courtesy of GENERAL MOTORS CORP.
  1. Install the passenger air bag disable switch.
  2. Connect the passenger air bag disable switch connector.
  3. Connect the negative battery cable.
