Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

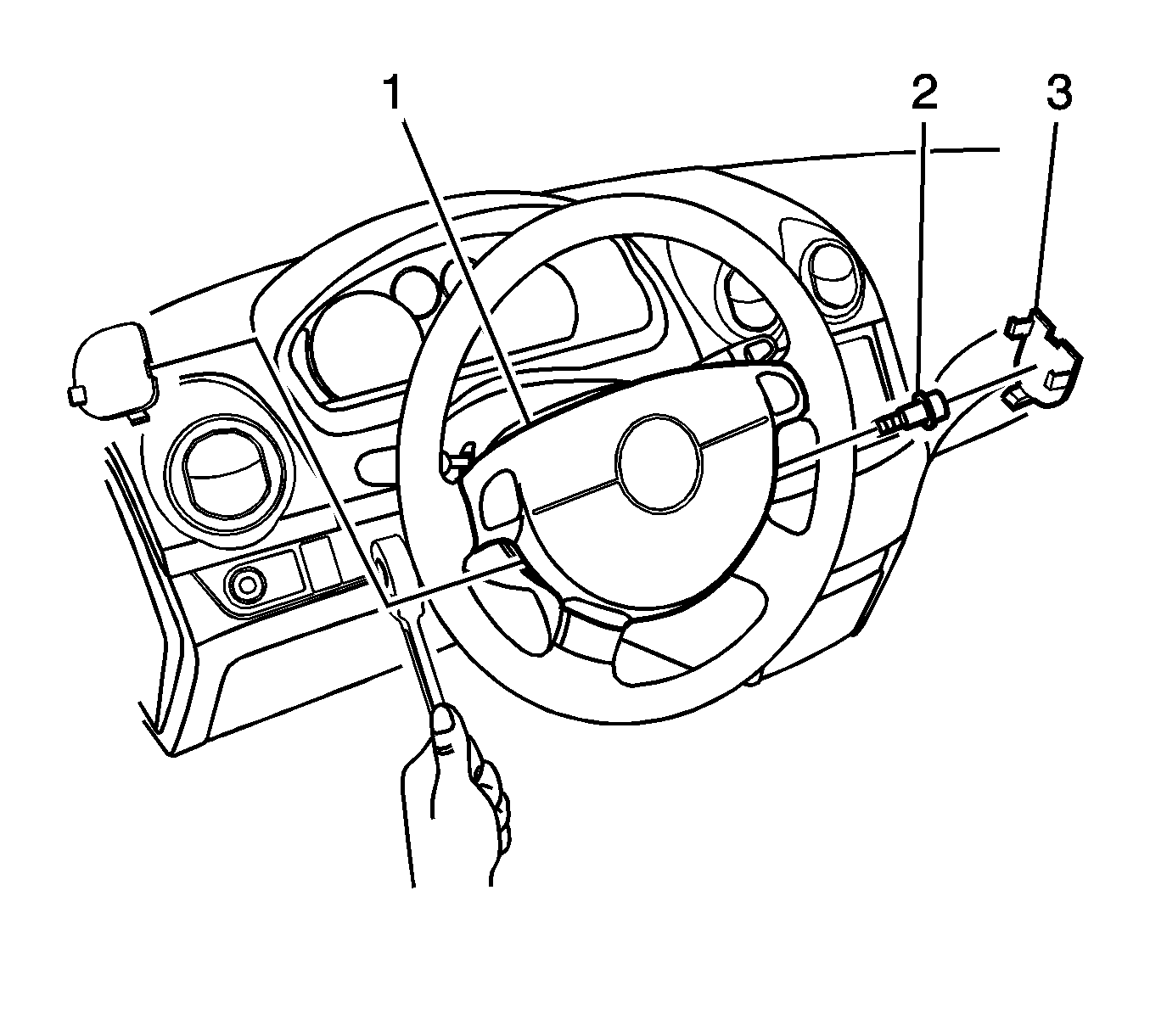

    Fig 1: Steering Wheel Module
    GM1724855Courtesy of GENERAL MOTORS CORP.
  1. Install the connectors to the horn terminal and the driver air bag module.
  2. Install the driver air bag module (1).
    3. NOTE: Refer to Fastener Notice .
  3. Install the new driver air bag mounting bolts (2).

    Tighten:  Tighten the driver air bag module mounting bolts to 15 N.m (11 lb ft).

  4. Install the steering wheel control switches, if equipped. Refer to Steering Wheel Control Switch Assembly Replacement .
  5. Connect the negative battery cable.
