Remote Function Connector End Views (Hatchback)



Remote Function Connector End Views (Hatchback)

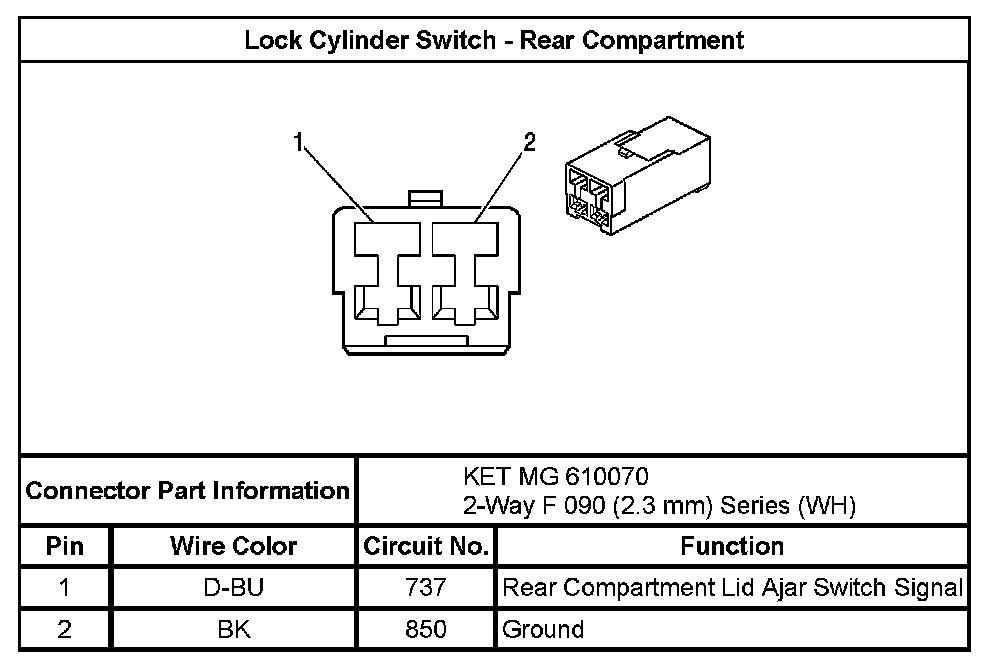

Lock Cylinder Switch - Rear Compartment
