I/P Fuse Block



Electrical Center Identification Views (Hatchback)

Fuse Block - I/P Top View





Fuse Block - I/P Wire Entry View

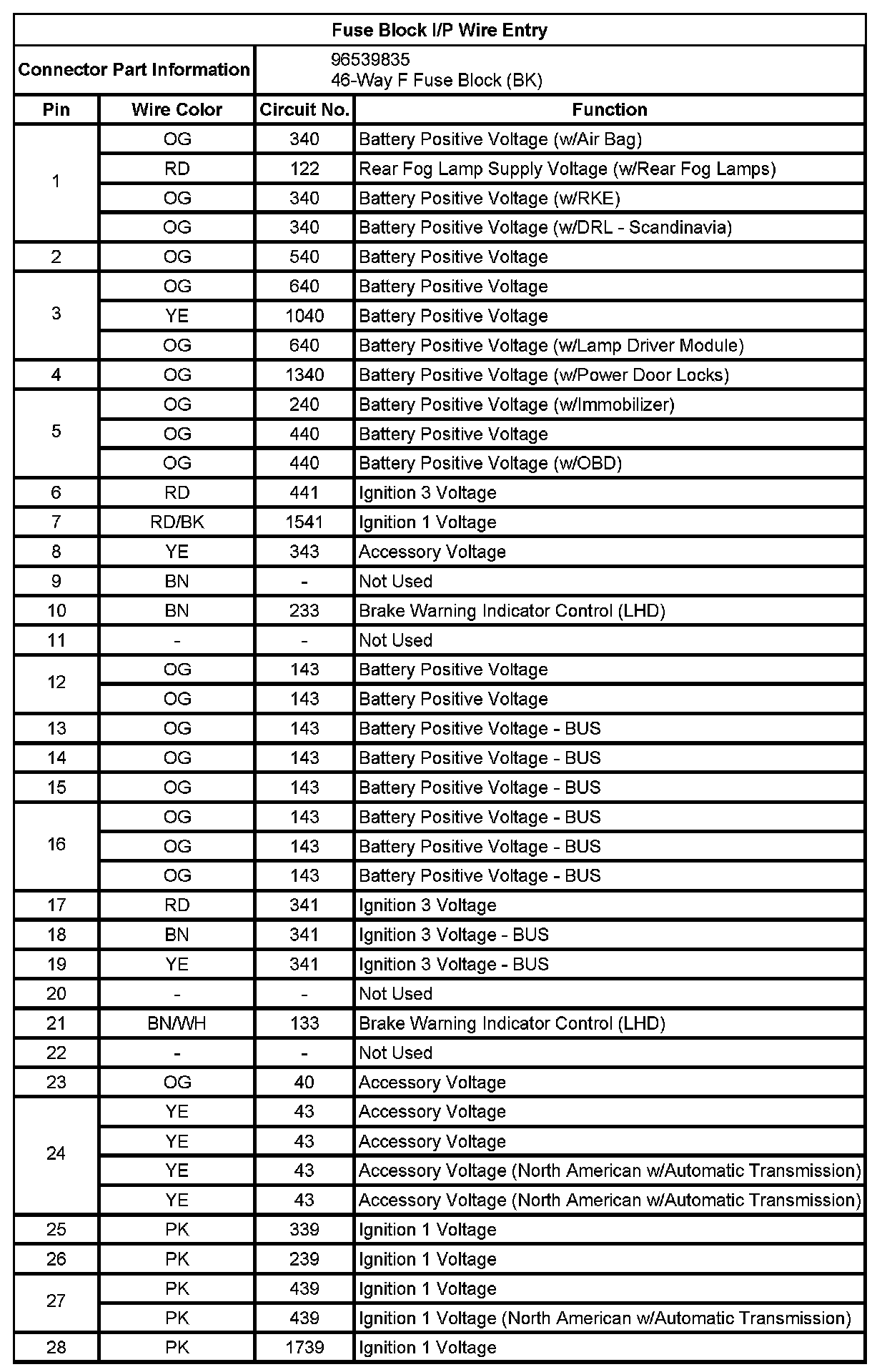

Fuse Block I/P Wire Entry (Pin 1 To 28):

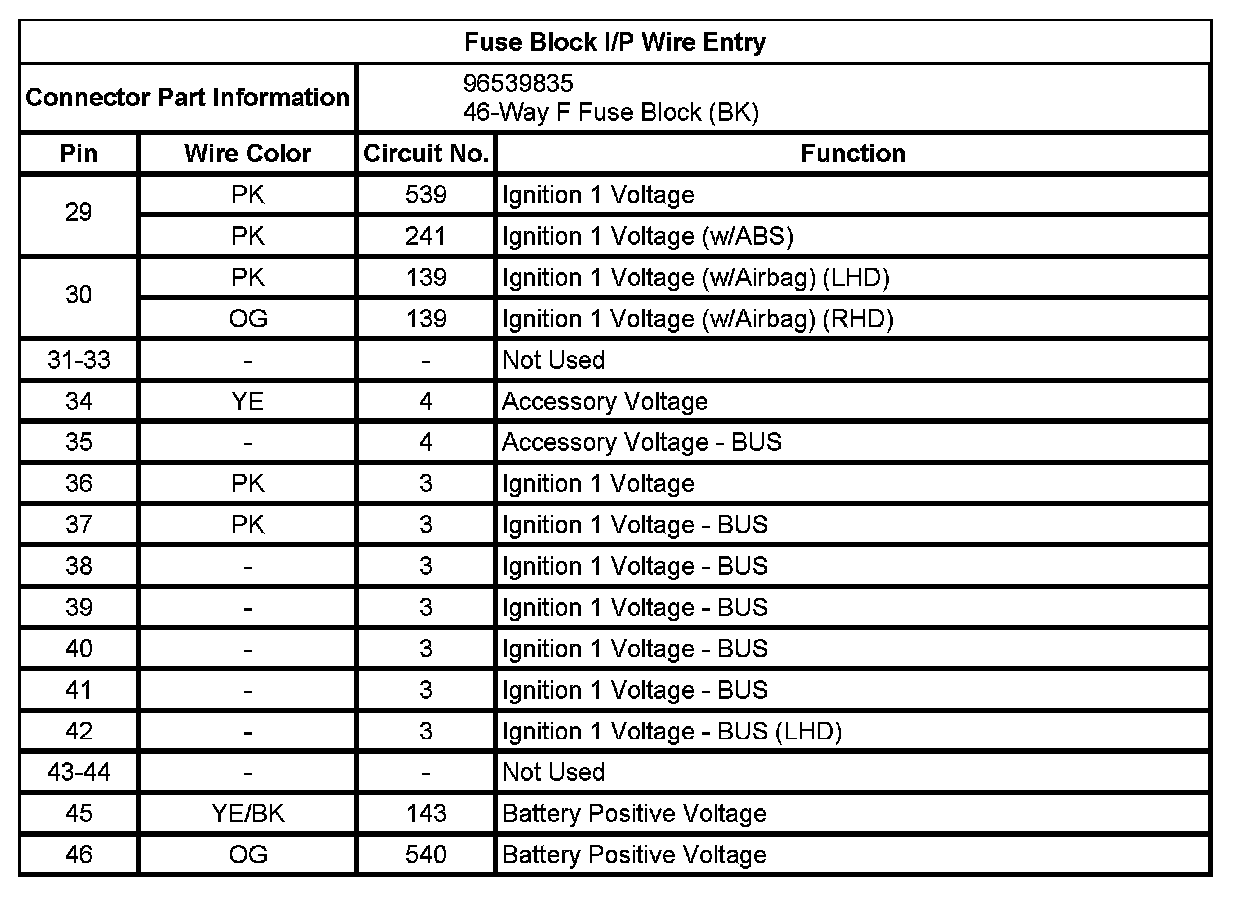

Fuse Block I/P Wire Entry (Pin 29 To 46):
