Air Bag Control Module: Locations

SIR Component Views

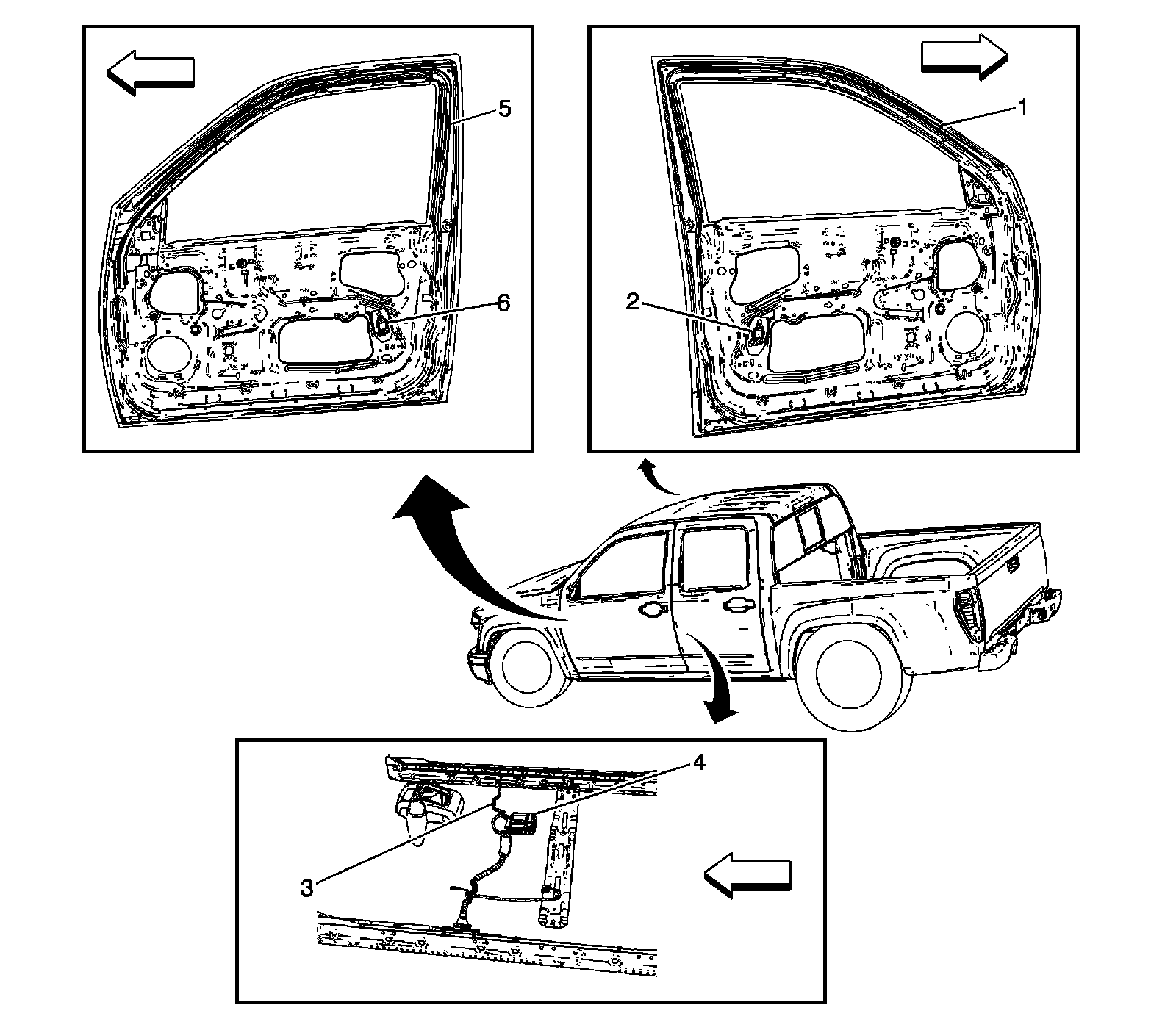

SIR Components 3 of 3




1 - Passenger Door
2 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3 - Body Harness
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Driver Door
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
