Engine Controls Component Views

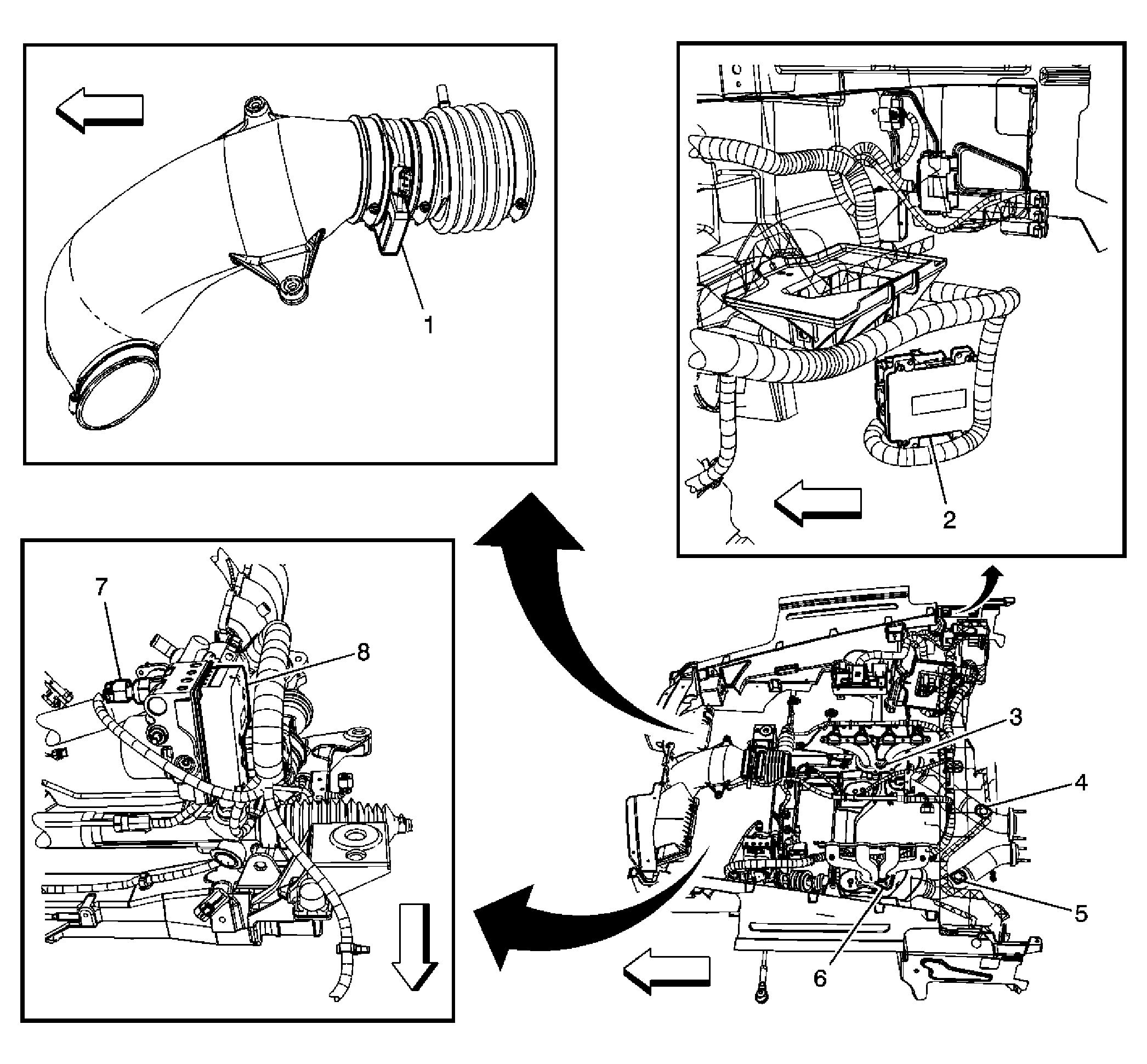

| Callout | Component Name |
|---|---|
| 1 | Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor |
| 2 | Engine Control Module (ECM) |
| 3 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 4 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 |
| 5 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 |
| 6 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 |
| 7 | Brake Pressure Modulator Valve (BPMV) |
| 8 | Electronic Brake Control Module (EBCM) |

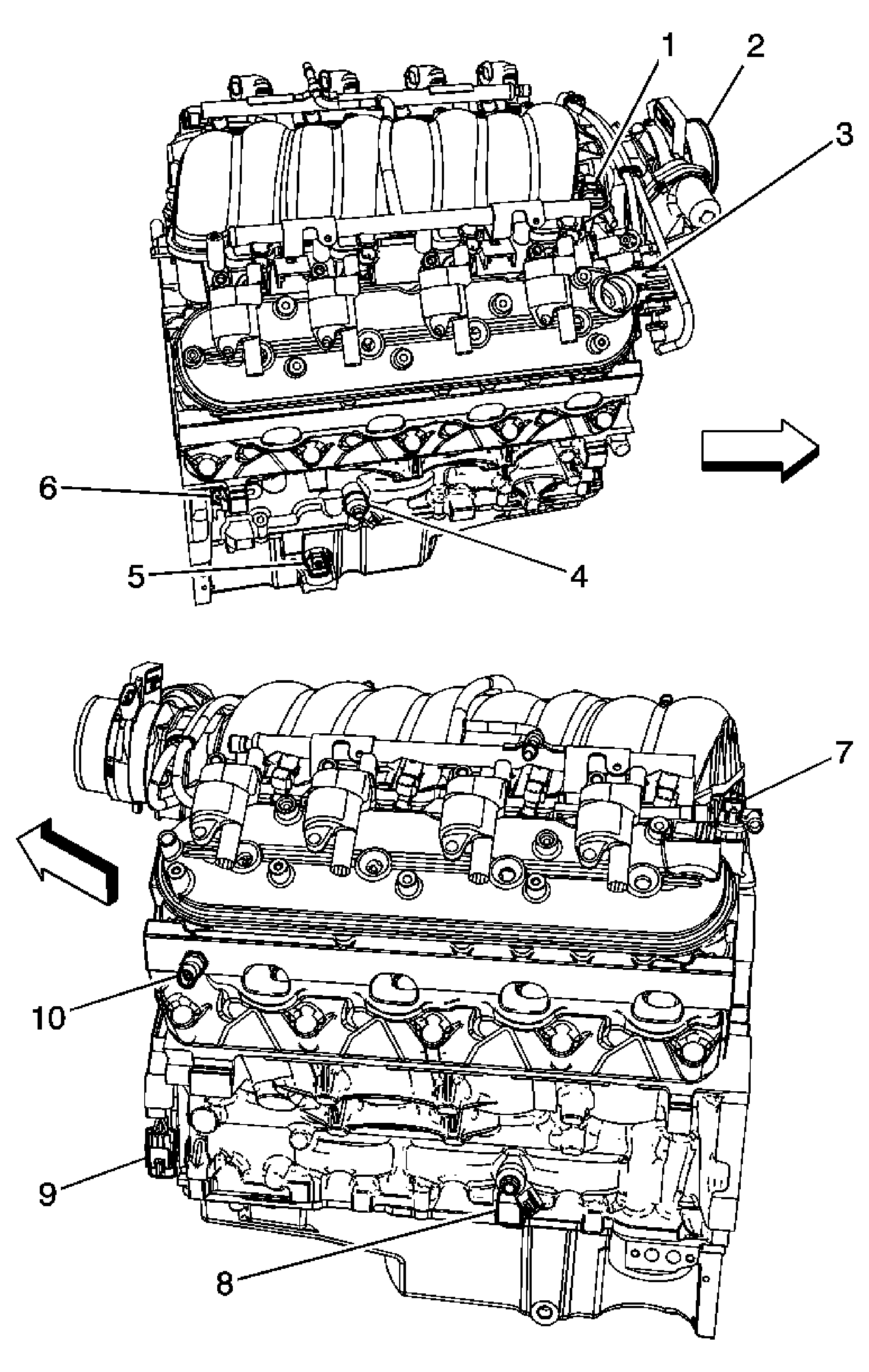

| Callout | Component Name |
|---|---|
| 1 | Manifold Absolute Pressure (MAP) Sensor |
| 2 | Throttle Body Assembly |
| 3 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 4 | Knock Sensor (KS) 2 |
| 5 | Engine Oil Level Switch |
| 6 | Crankcase Position (CKP) Sensor |
| 7 | Engine Oil Pressure (EOP) Sensor |
| 8 | Knock Sensor (KS) 1 |
| 9 | Camshaft Position (CMP) Sensor |
| 10 | Engine Coolant Temperature (ECT) Sensor |
| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 7 |
| 2 | Ignition Coil 7 |
| 3 | Fuel Injector 5 |
| 4 | Ignition Coil 5 |
| 5 | Fuel Injector 3 |
| 6 | Ignition Coil 3 |
| 7 | Fuel Injector 1 |
| 8 | Ignition Coil 1 |
| 9 | Engine Coolant Temperature (ECT) Sensor |
| 10 | Fuel Injector 2 |
| 11 | Ignition Coil 2 |
| 12 | Ignition Coil 4 |
| 13 | Fuel Injector 4 |
| 14 | Ignition Coil 6 |
| 15 | Fuel Injector 6 |
| 16 | Ignition Coil 8 |
| 17 | Fuel Injector 8 |
| 18 | Engine Oil Pressure (EOP) Sensor |
| Callout | Component Name |
|---|---|
| 1 | Fuel Tank - Left |
| 2 | Fuel Tank - Right |
| 3 | Evaporative (EVAP) Canister Vent Solenoid |
| 4 | Fuel Tank Pressure (FTP) Sensor |
| 5 | Fuel Level Sensor - Right |
| 6 | Fuel Pump and Sender Assembly |
| 7 | Fuel Level Sensor - Left |
