Window Systems Component Views

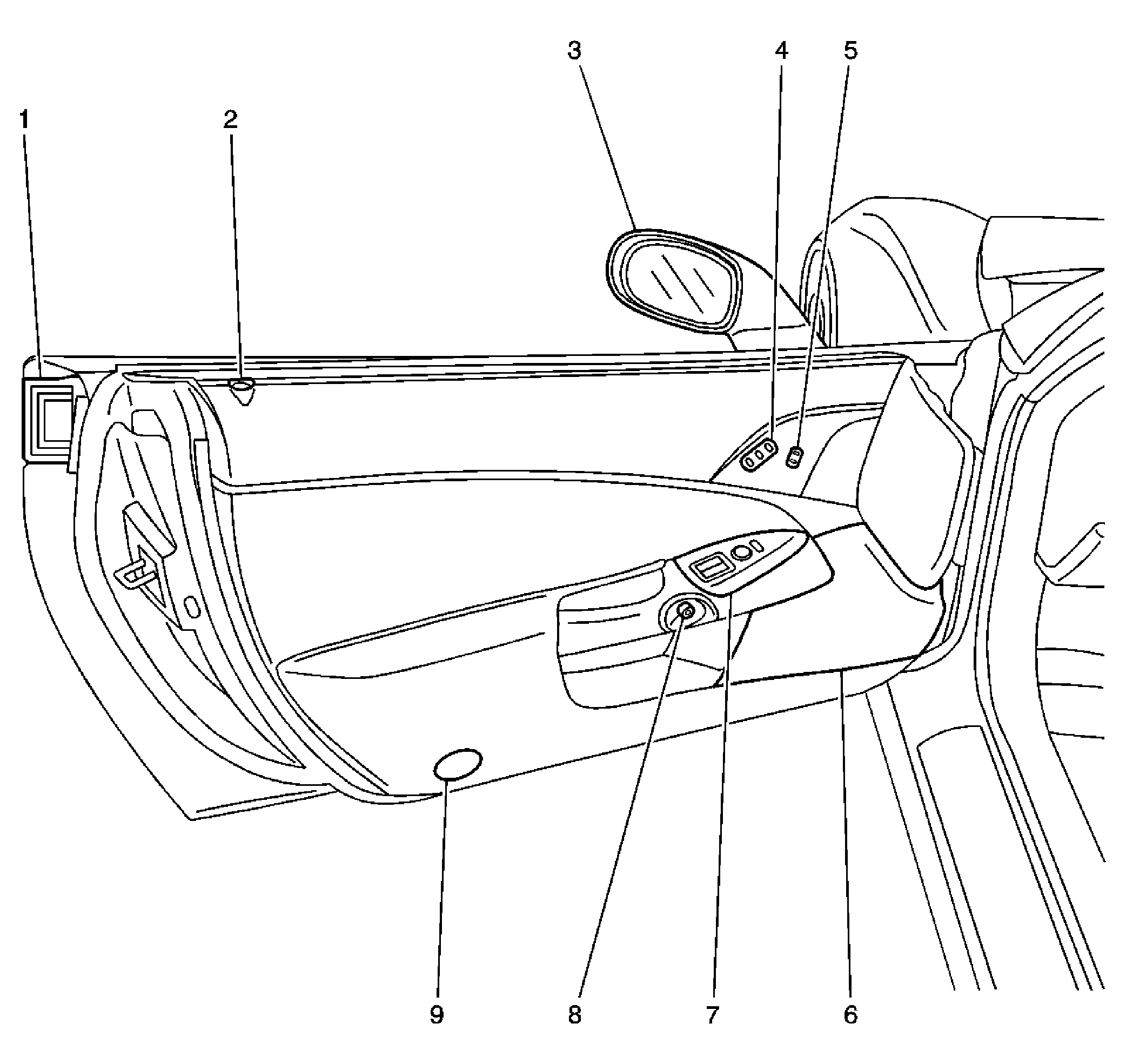

Fig 1: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	Outside Rearview Mirror - Driver
4	Memory Seat Switch (AAB)
5	Door Lock Switch - Driver
6	Speaker - LF Door Subwoofer
7	Driver Door Switch Assembly (DDSA)
8	Door Handle Switch - Driver Interior
9	Door Reflector

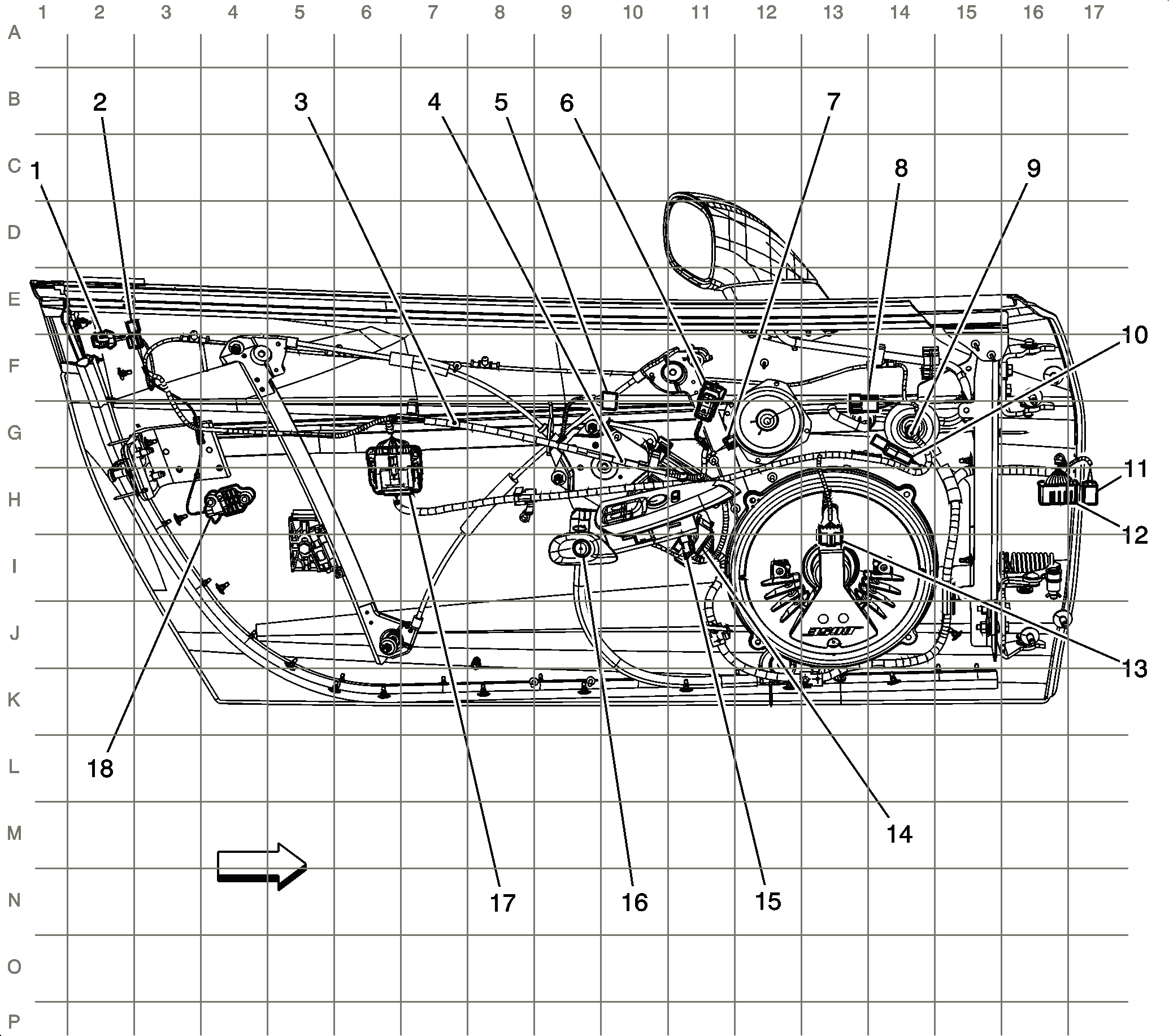

Fig 2: Identifying Driver Door Internal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	S579
4	S559
5	Memory Seat Switch
6	Door Lock Switch - Driver
7	Speaker - LF Door Tweeter
8	Outside Rearview Mirror - Driver C1
9	S539
10	Outside Rearview Mirror - Driver C2
11	C503
12	C501
13	Speaker - Bose
14	Driver Door Module (DDM)
15	Driver Door Switch Assembly (DDSA)
16	Door Handle Switch - Driver Interior
17	C555
18	Inflatable Restraint Side Impact Sensor - Left

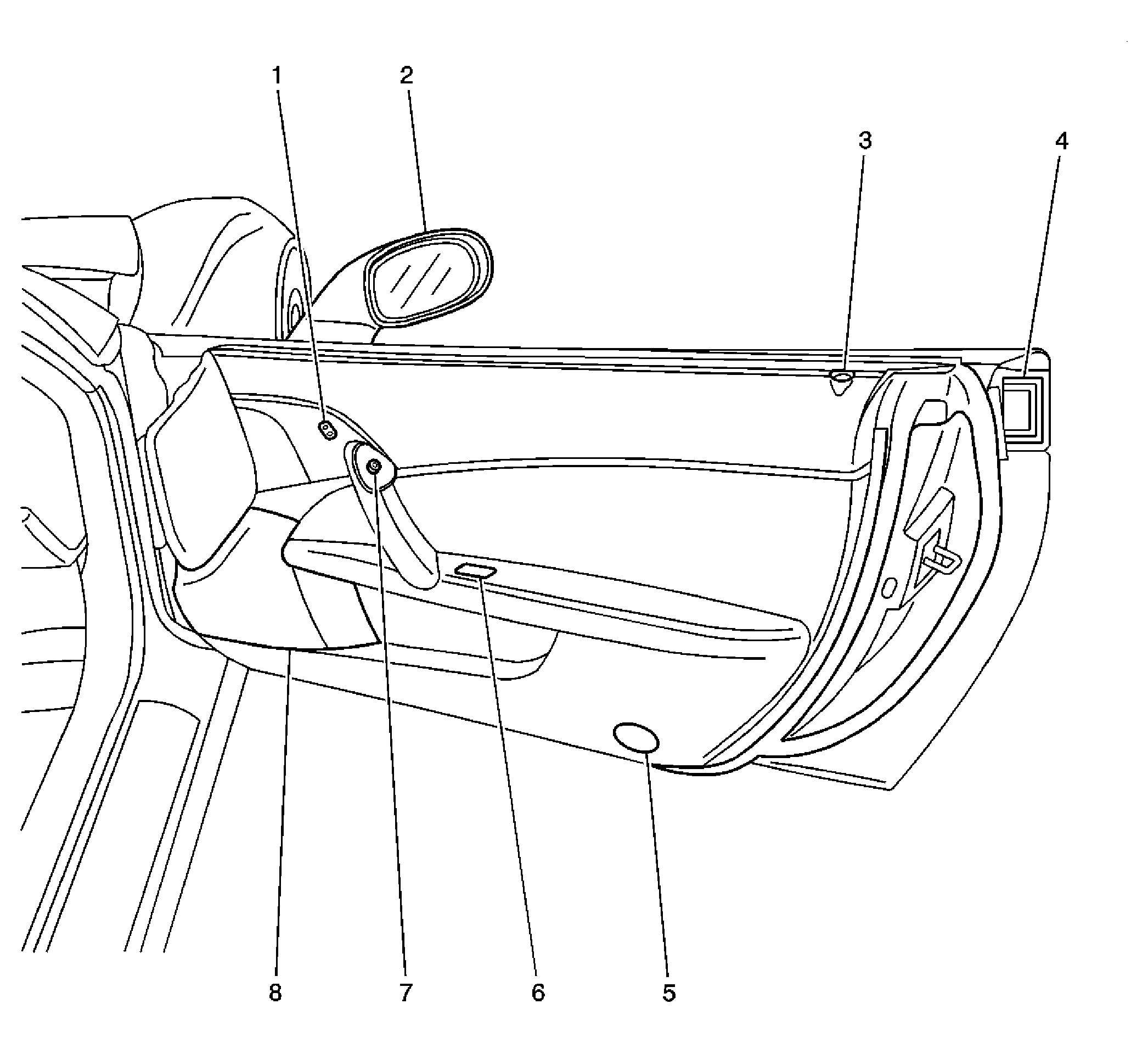

Fig 3: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Passenger
2	Outside Rearview Mirror - Passenger
3	Door Lock Indicator - Passenger
4	Door Handle Switch - Passenger Exterior
5	Door Reflector
6	Window Switch - Front Passenger
7	Door Handle Switch - Passenger Interior
8	Speaker - RF Door Subwoofer

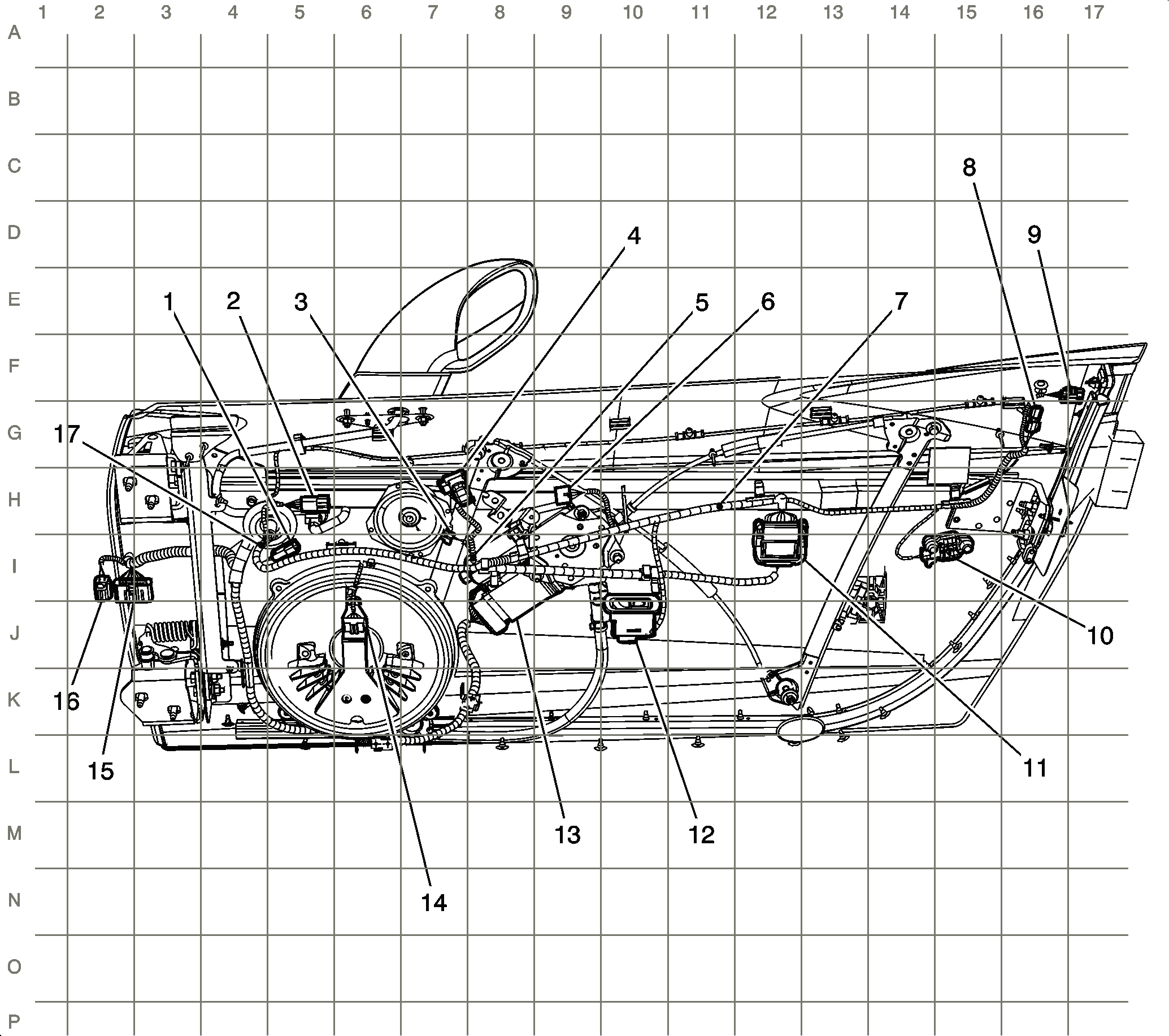

Fig 4: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger C2
2	Outside Rearview Mirror - Passenger C2
3	Speaker - RF Door Tweeter
4	Door Lock Switch - Passenger
5	S680
6	Door Handle Switch - Passenger Interior
7	S660
8	Door Lock Indicator - Passenger
9	Door Handle Switch - Passenger Exterior
10	Inflatable Restraint Side Impact Sensor - Right
11	C666
12	Window Switch - Front Passenger
13	Front Passenger Door Module (FPDM)
14	Speaker - Bose
15	C600
16	C602
17	S640

Fig 5: Rear Window (Y07/Y87)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Window (Y67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Folding Top
2	Rear Window Defogger Grid
