Antilock Brake System Schematics

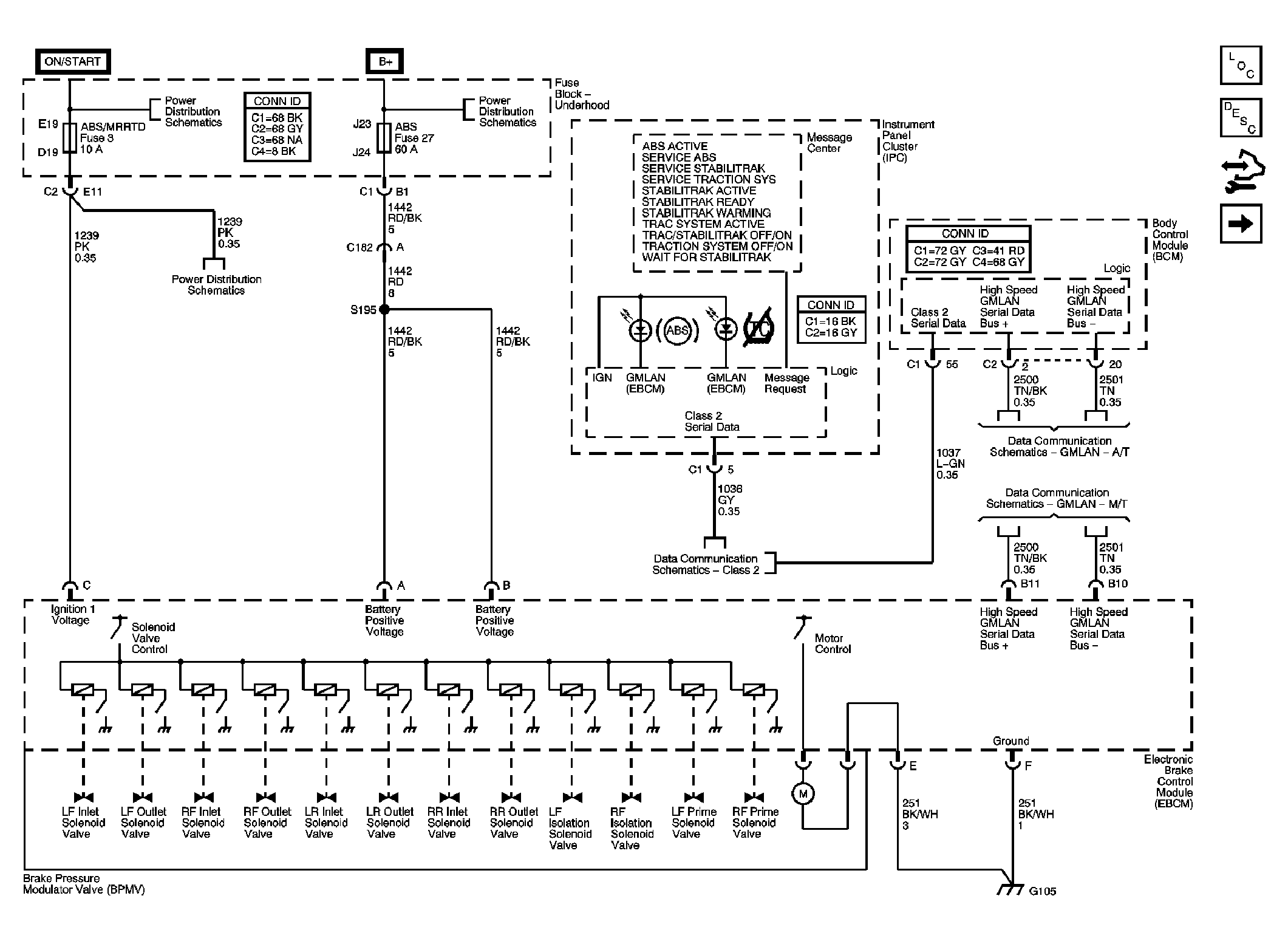

Fig 1: Ground, Indicators, Messages and Power Schematic

Courtesy of GENERAL MOTORS CORP.

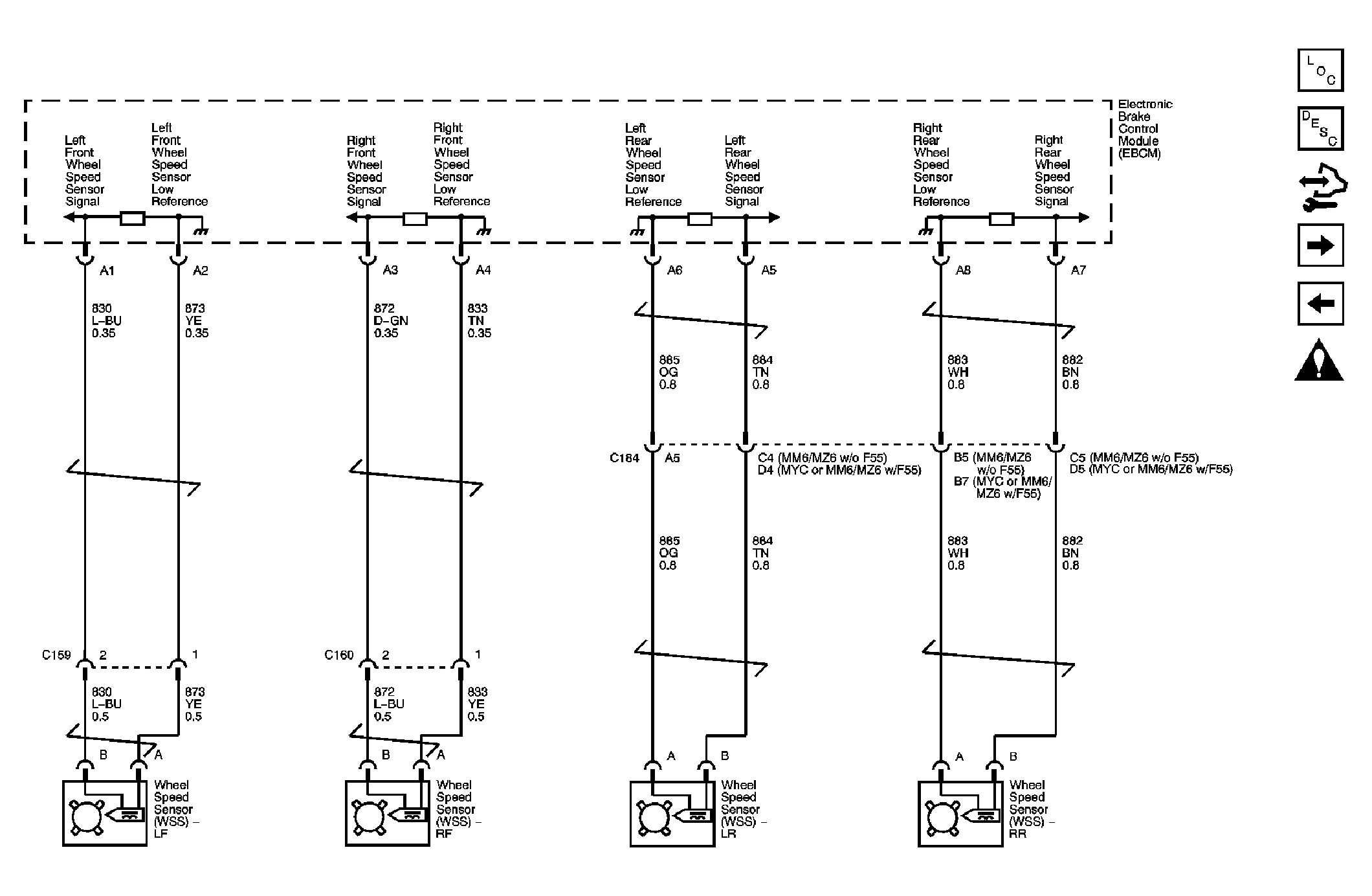

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

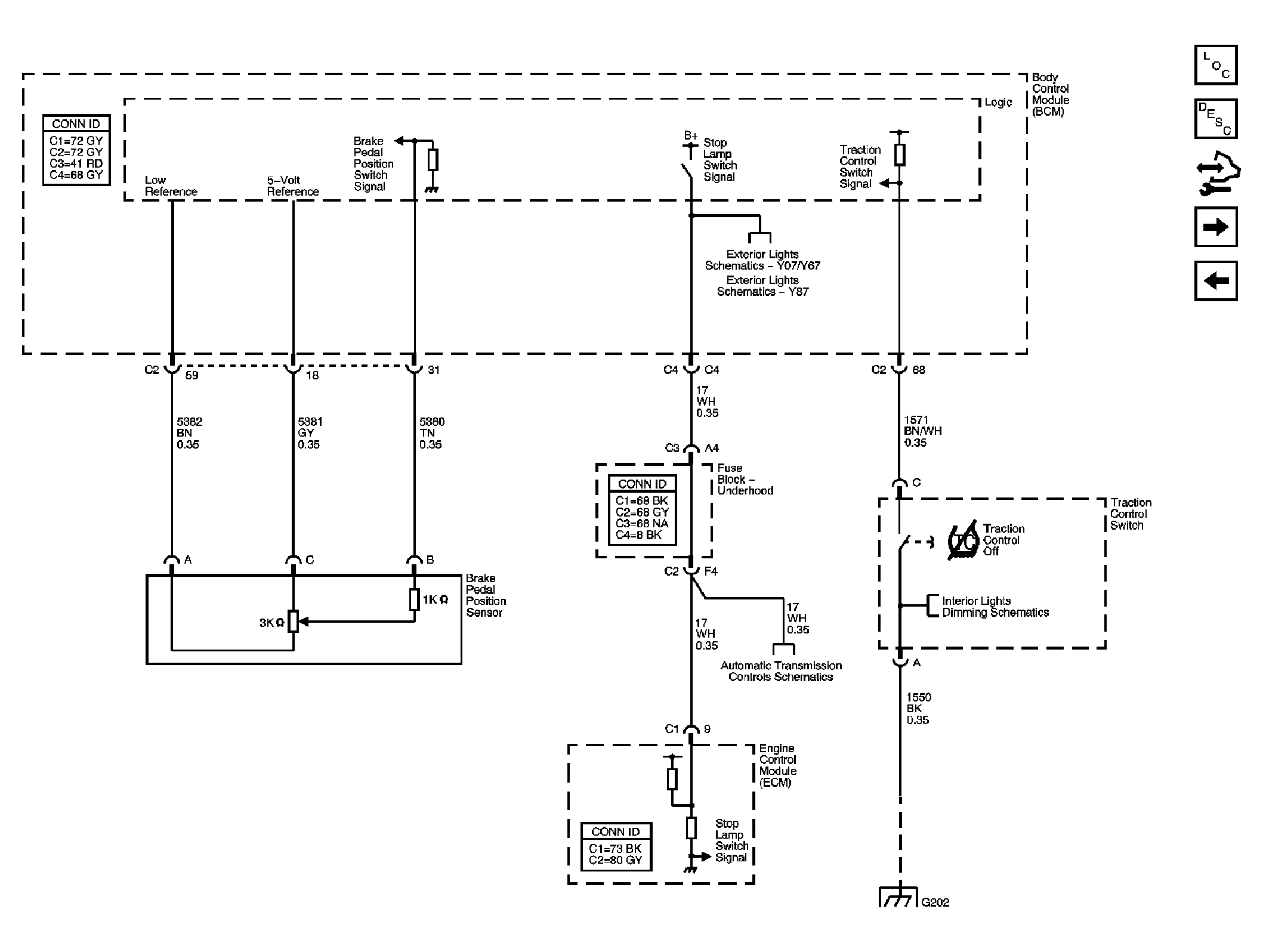

Fig 3: Brake Pedal Signal and Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

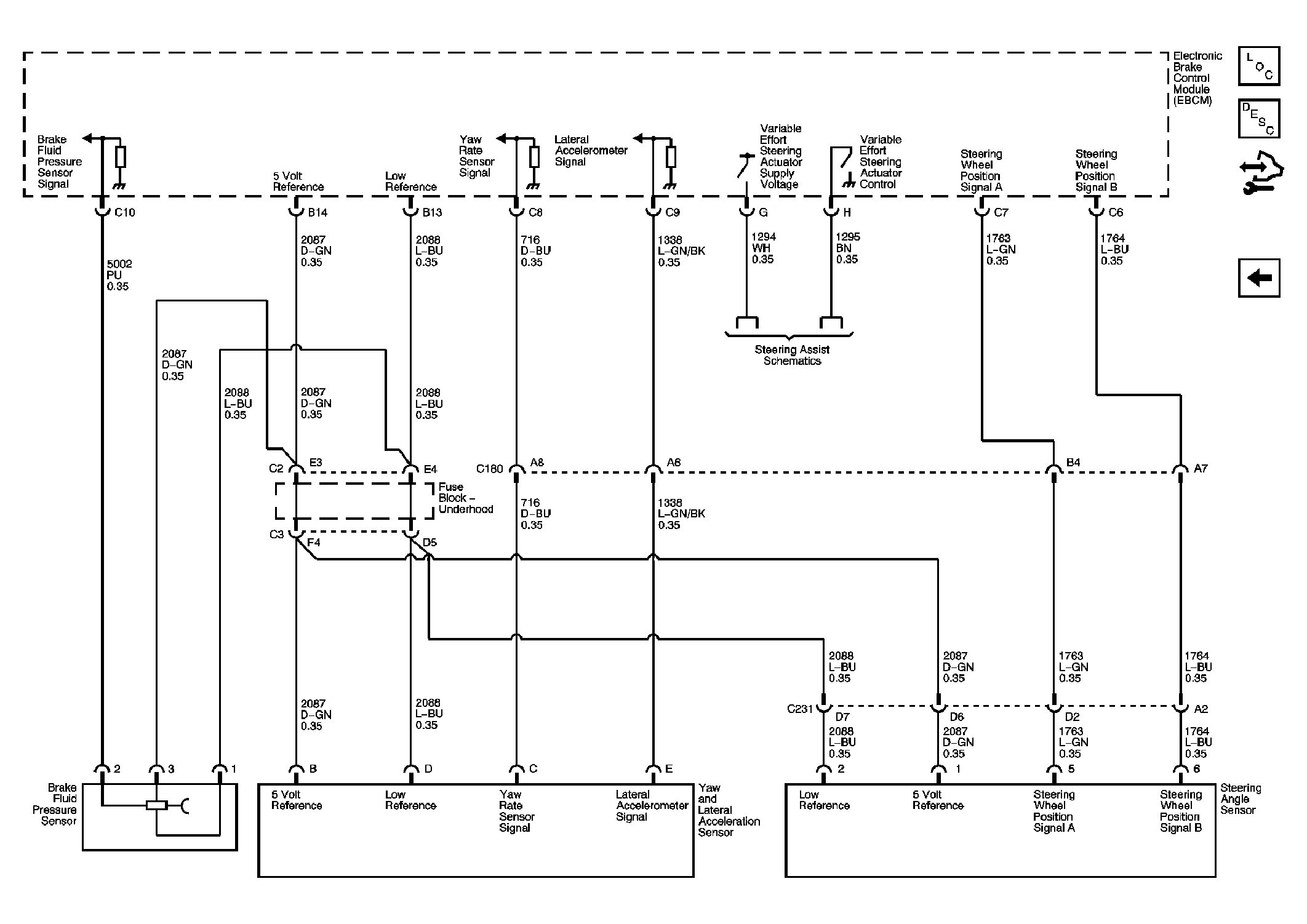

Fig 4: Stability Control Sensors (JL4) Schematic

Courtesy of GENERAL MOTORS CORP.
