Engine Controls Schematics

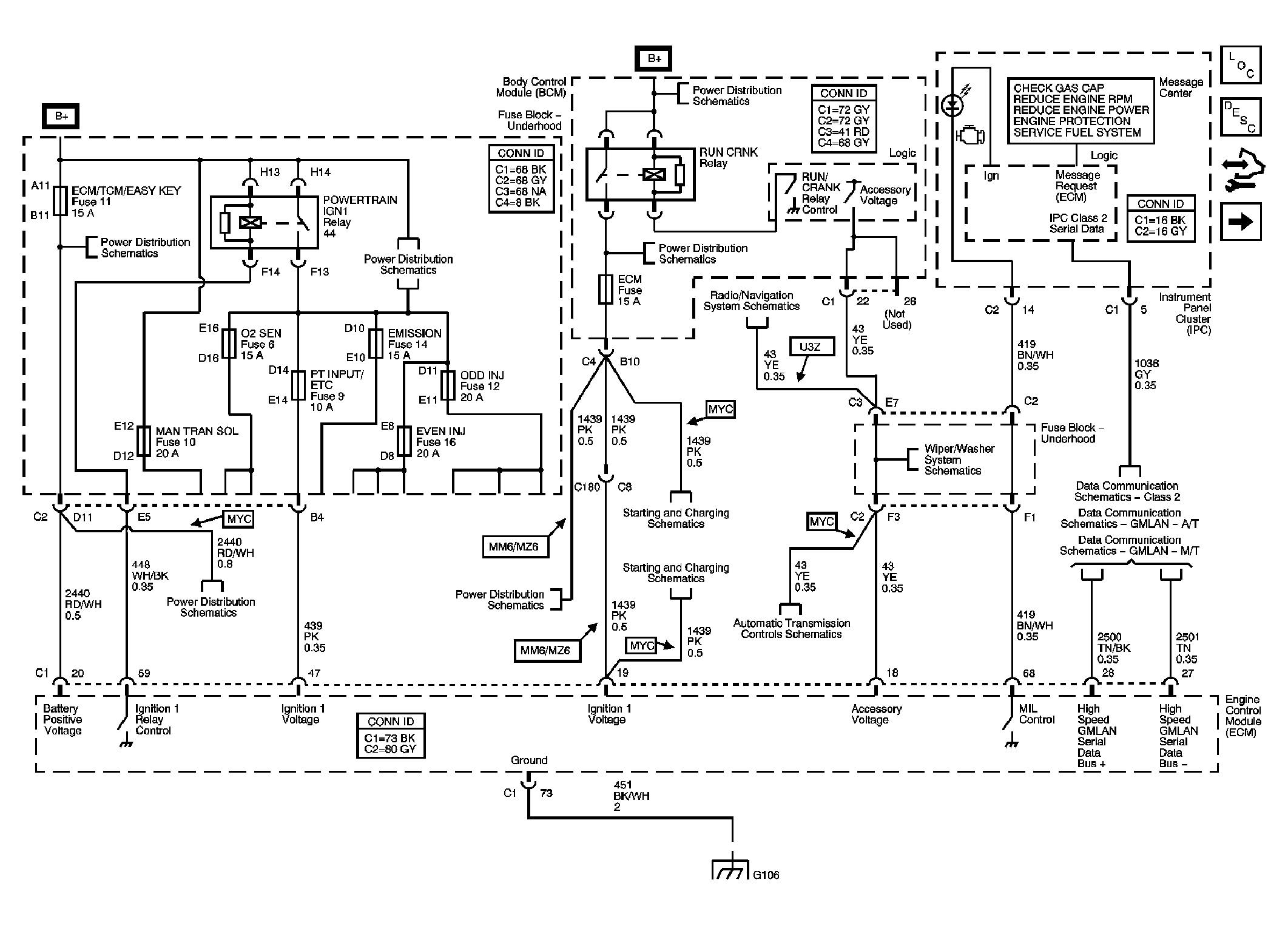

Fig 1: DLC, Ground, MIL and Power Schematic

Courtesy of GENERAL MOTORS CORP.

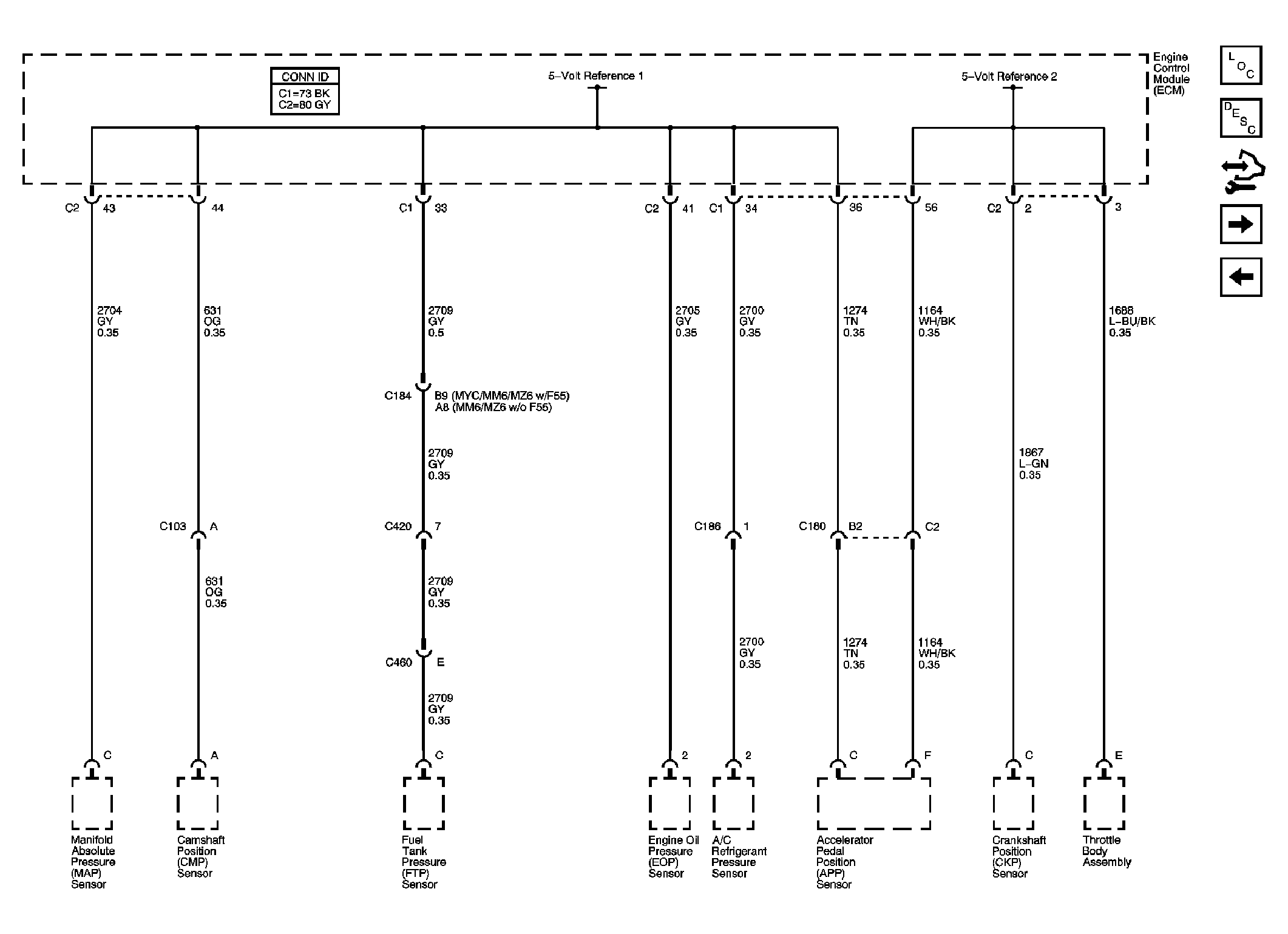

Fig 2: 5-Volt Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

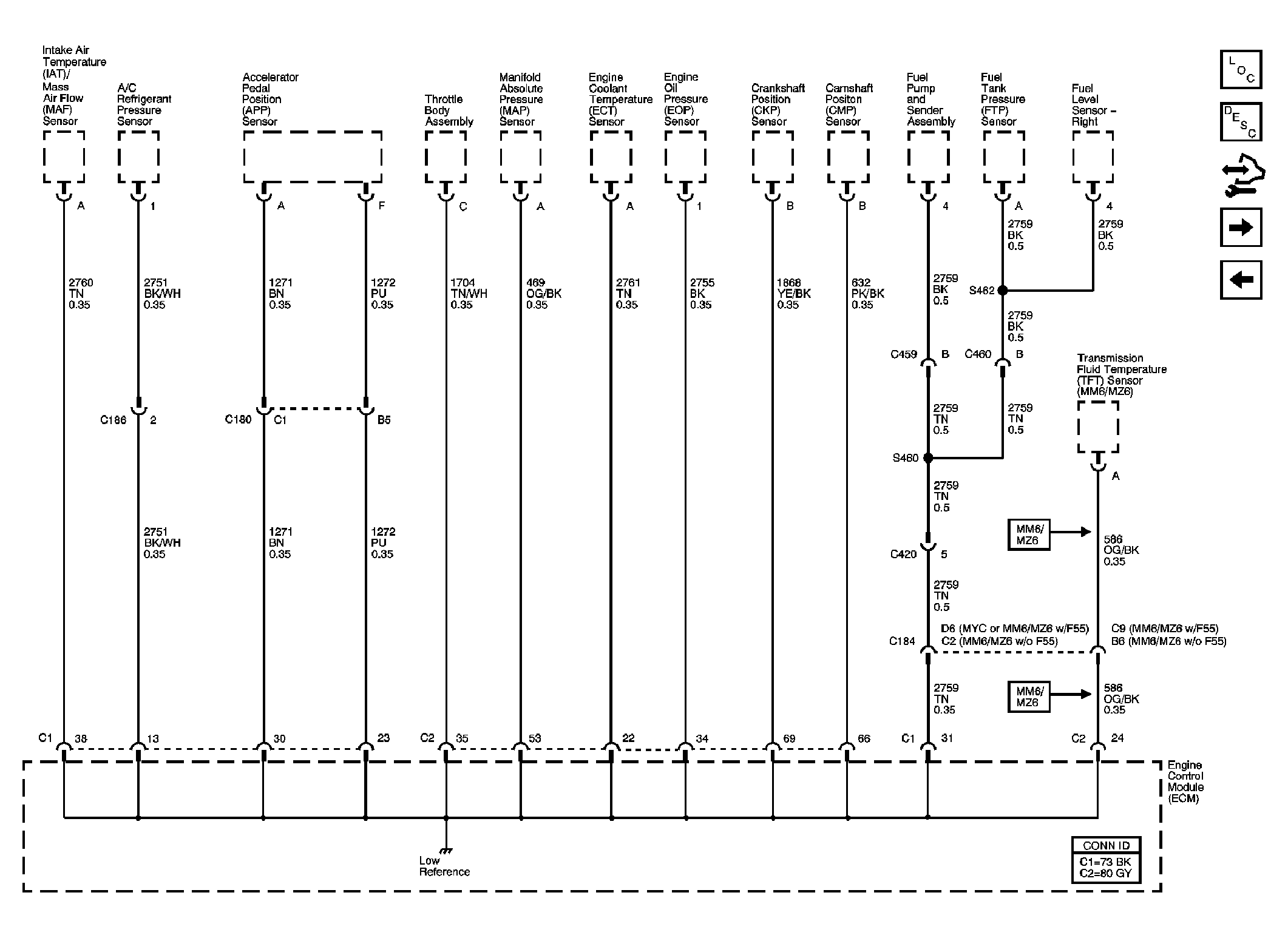

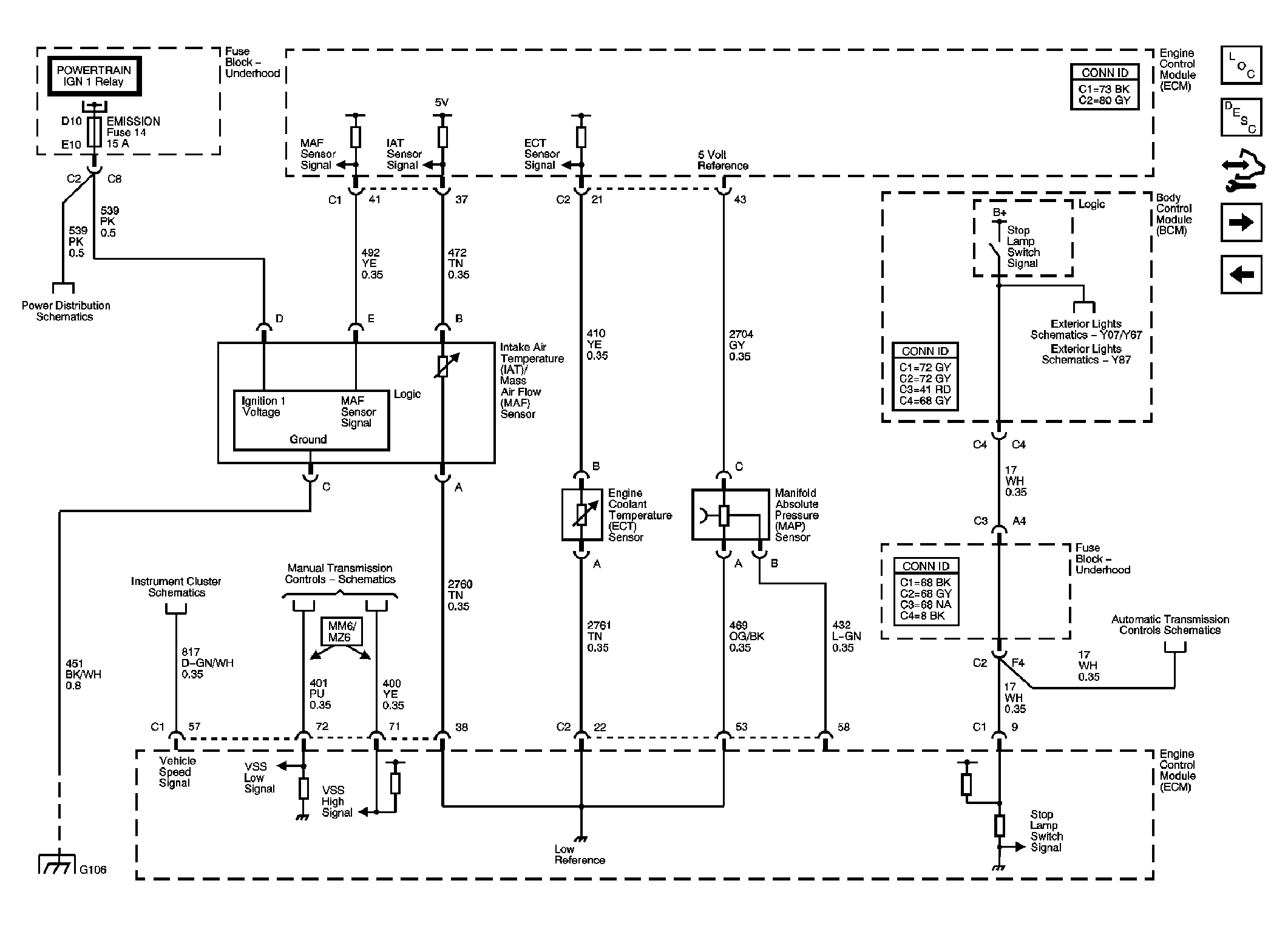

Fig 4: Engine Data Sensors - Pressure, Temperature, IAT/MAF, VSS and Brake Travel Schematic

Courtesy of GENERAL MOTORS CORP.

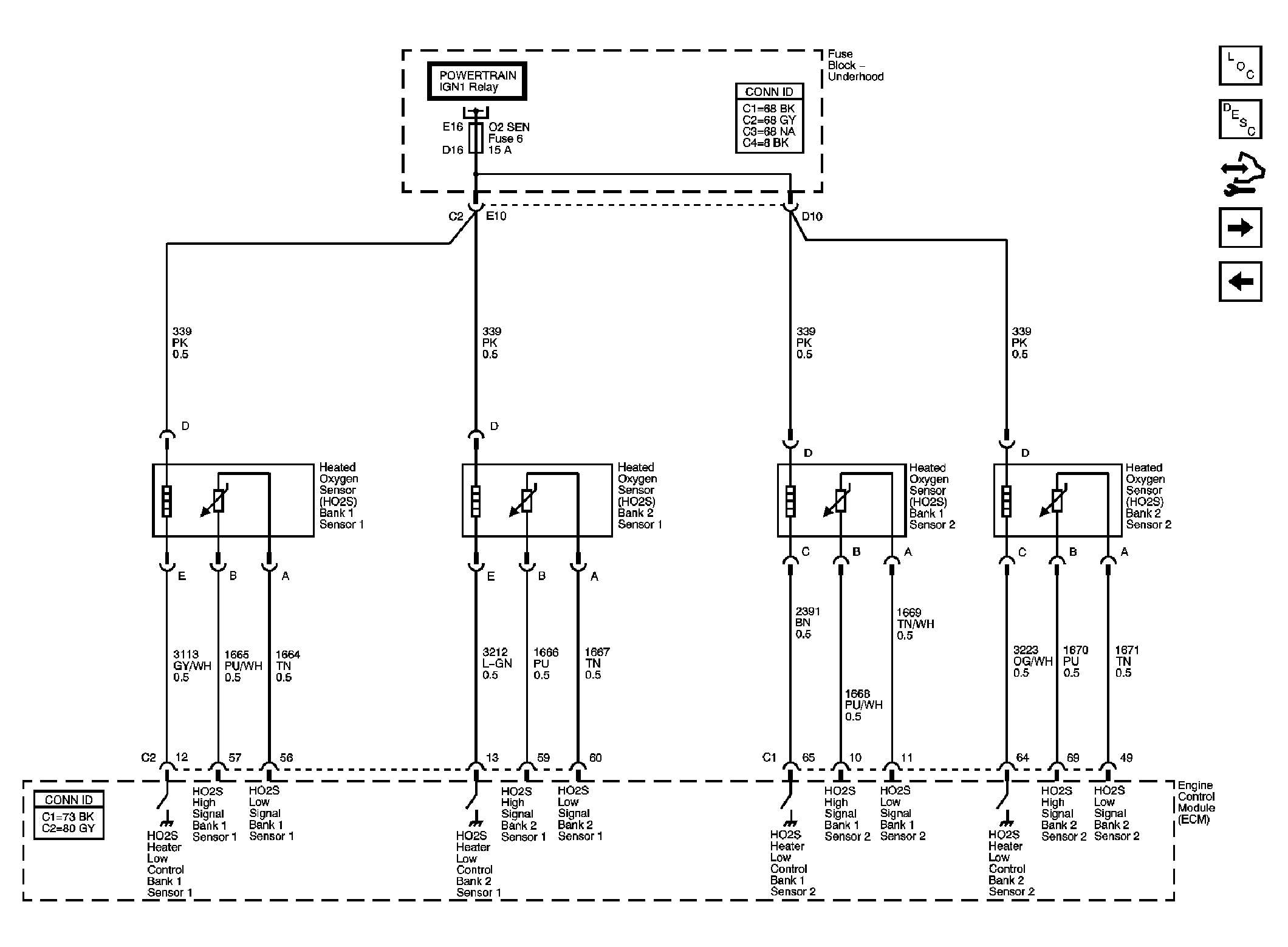

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

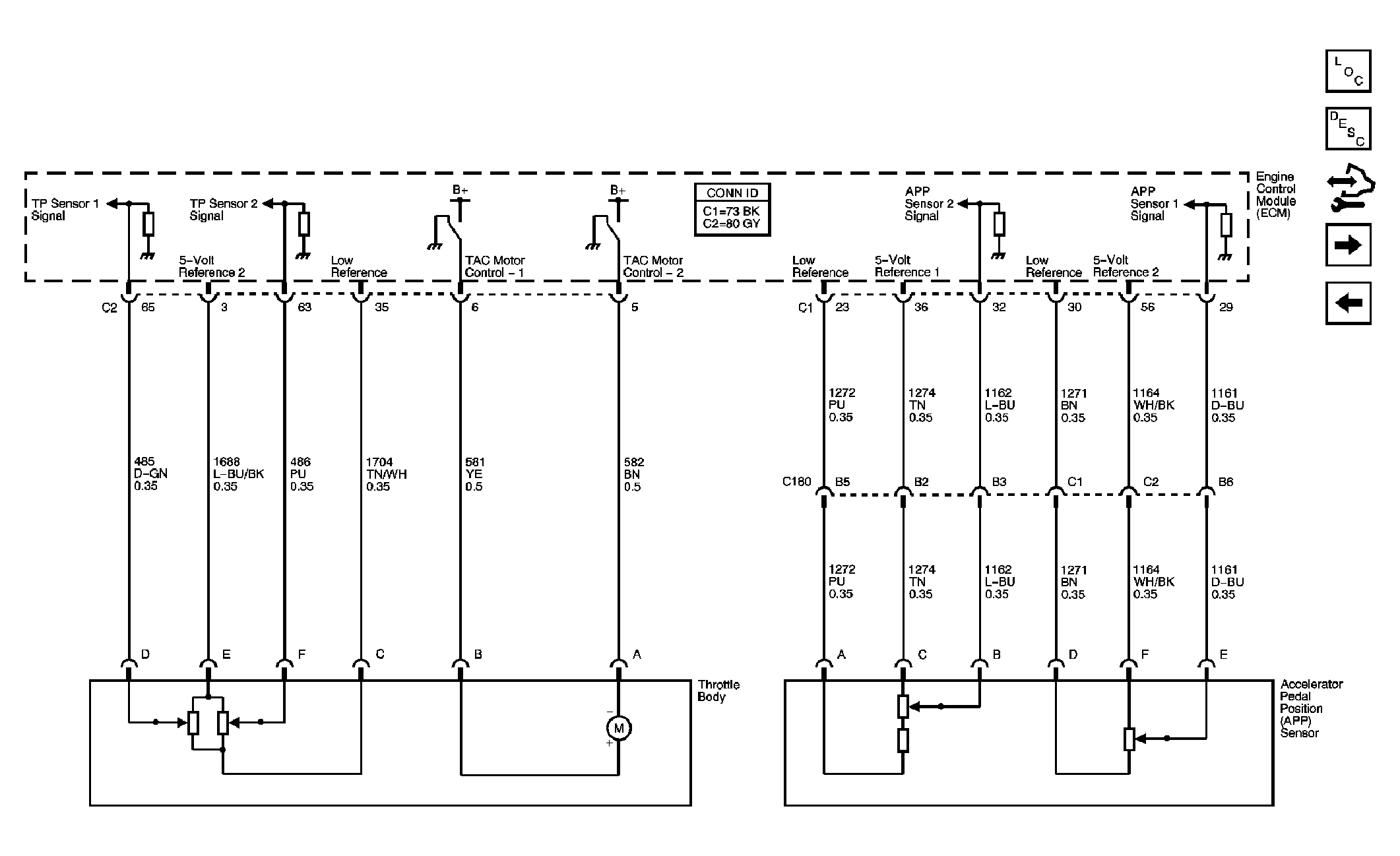

Fig 6: Engine Data Sensors - Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

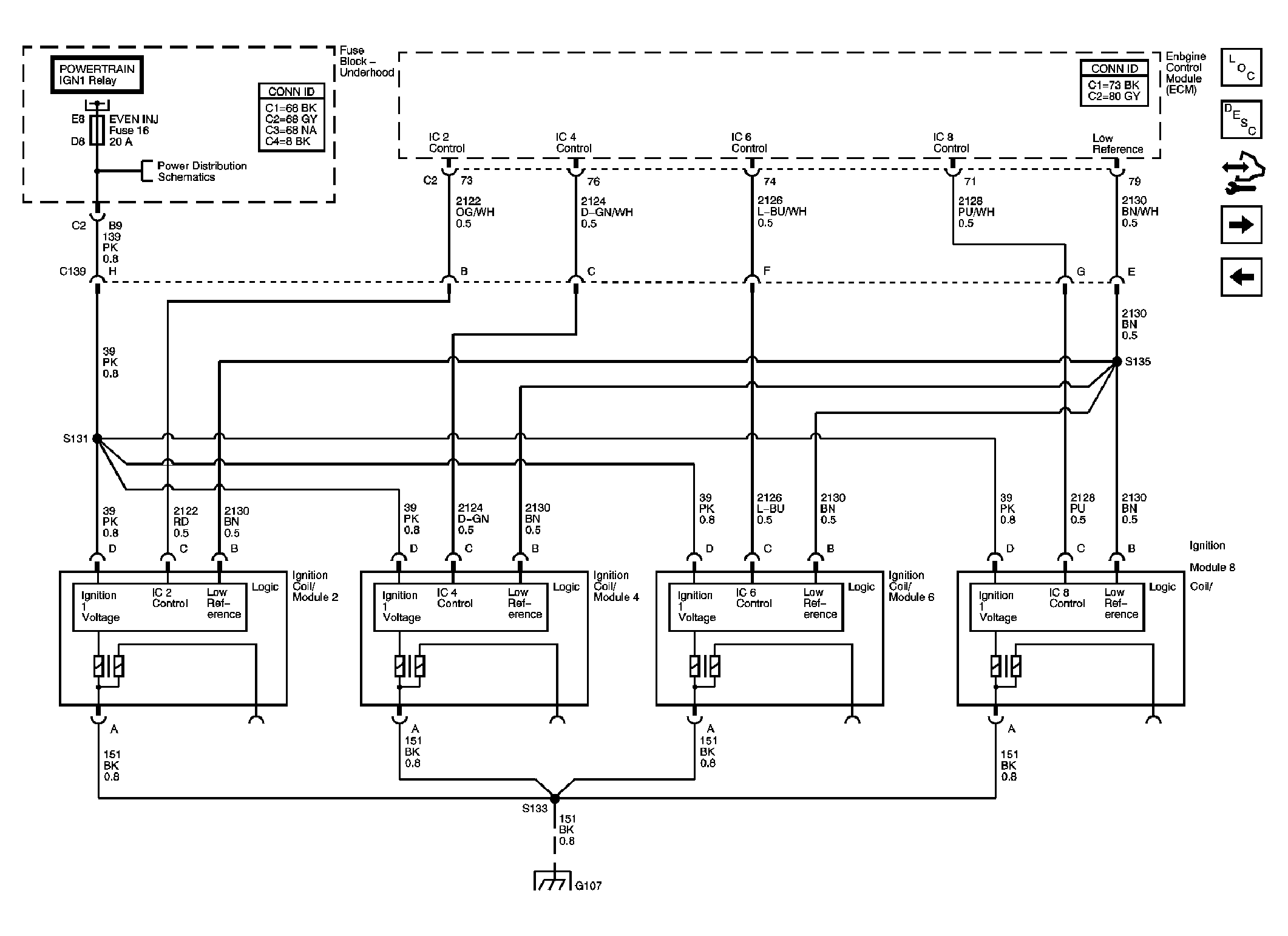

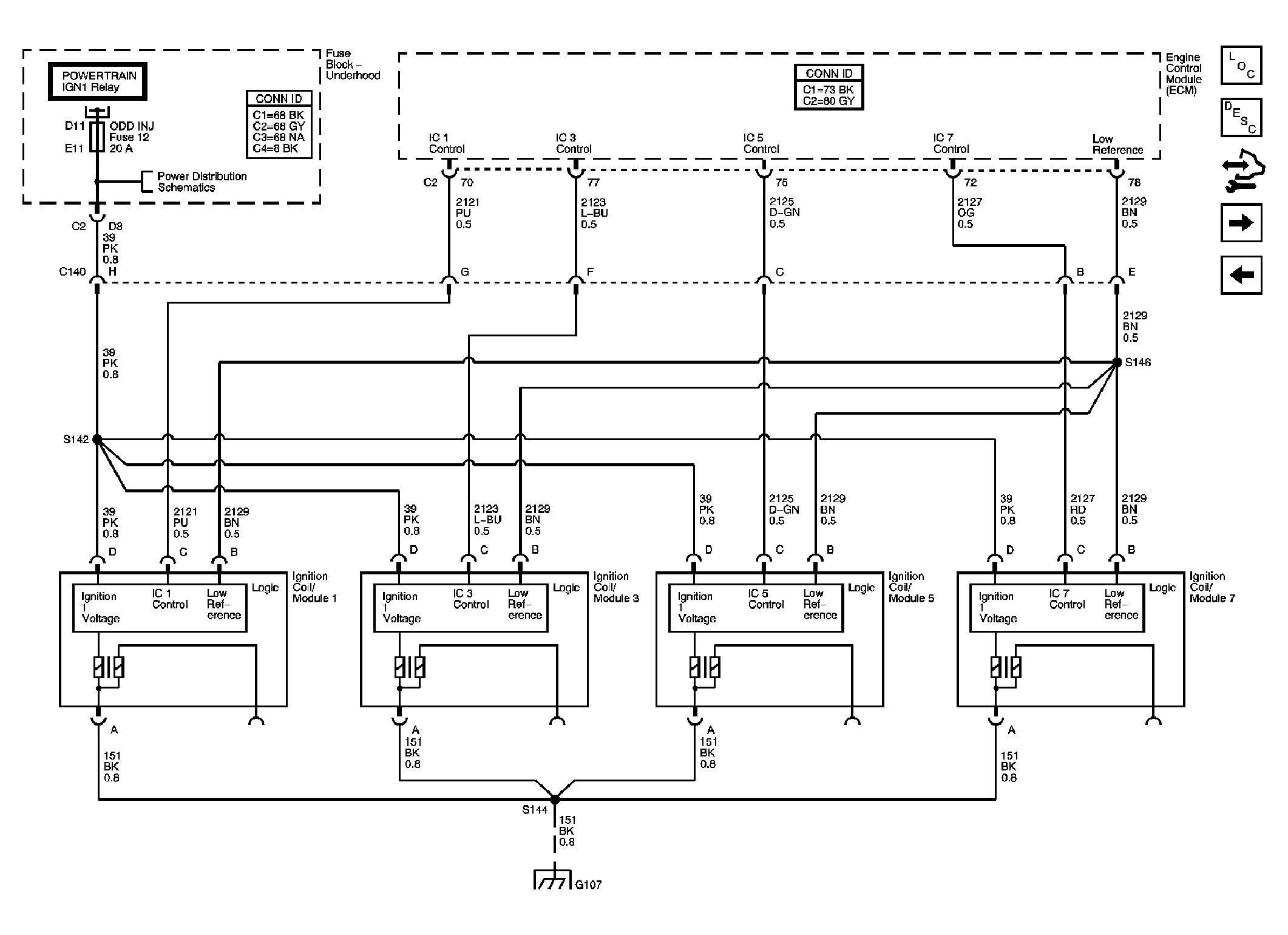

Fig 7: Ignition Controls System - Bank 1 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls System - Bank 2 Schematic

Courtesy of GENERAL MOTORS CORP.

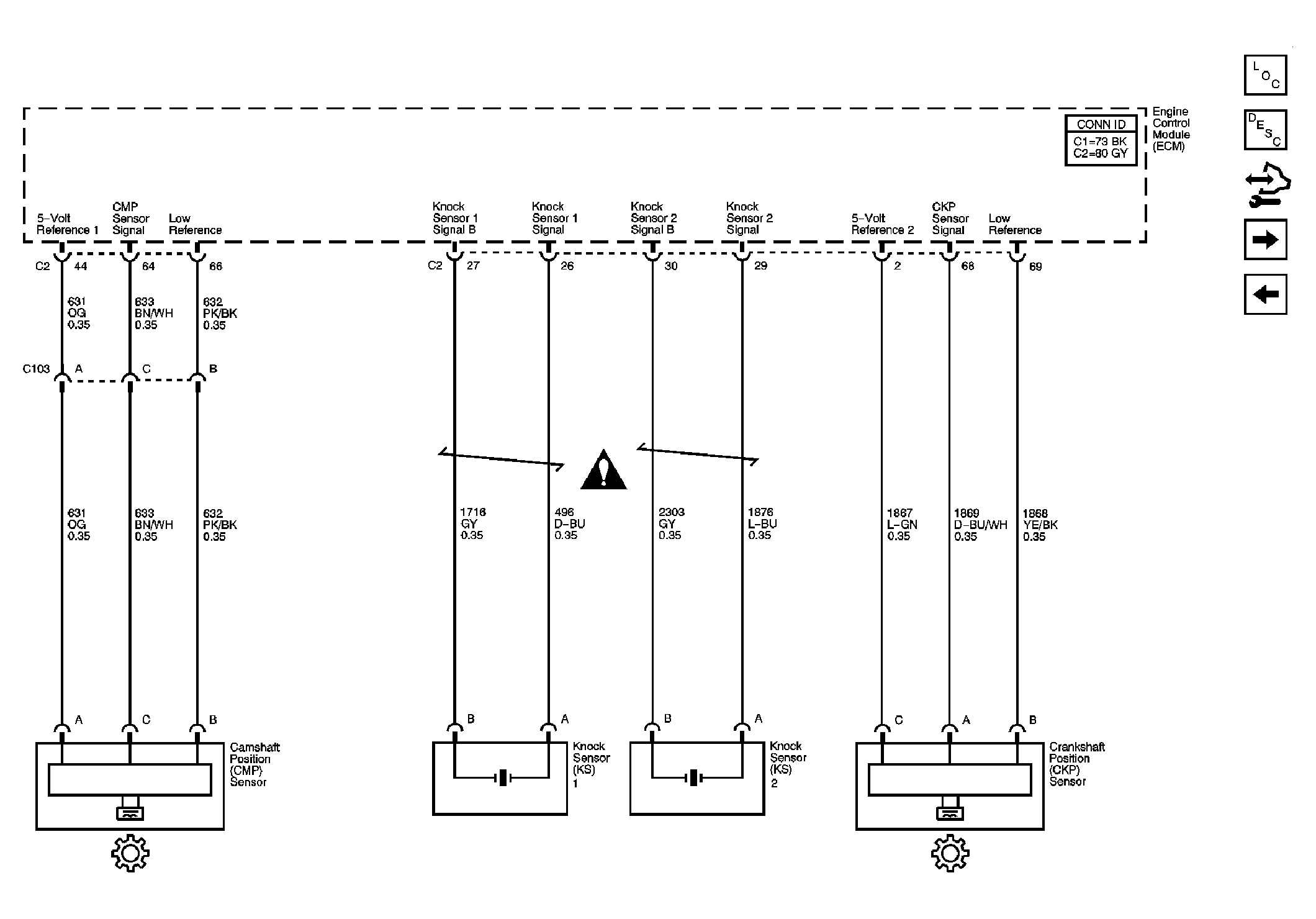

Fig 9: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

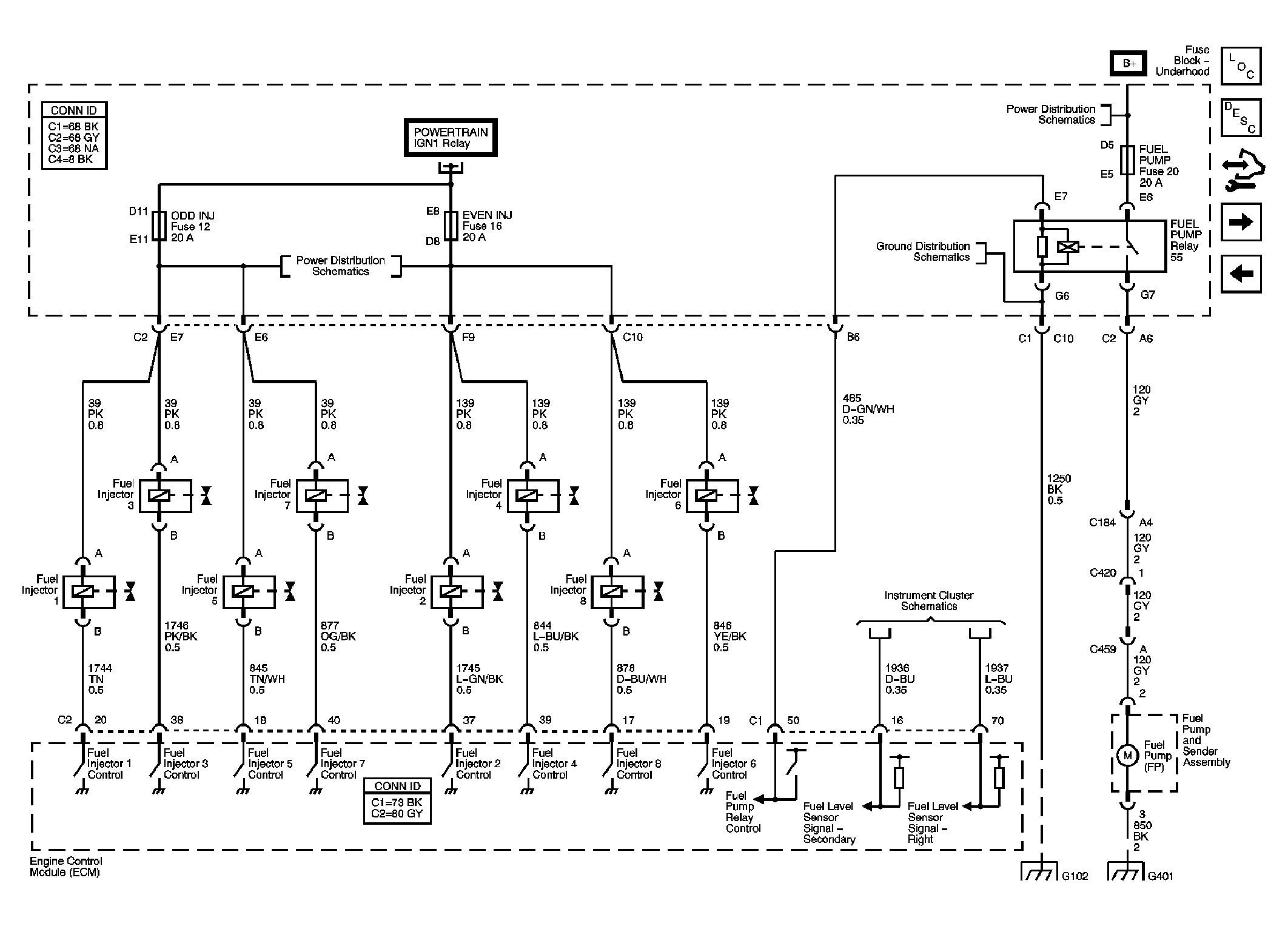

Fig 10: Fuel Controls - Fuel Pump Controls and Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

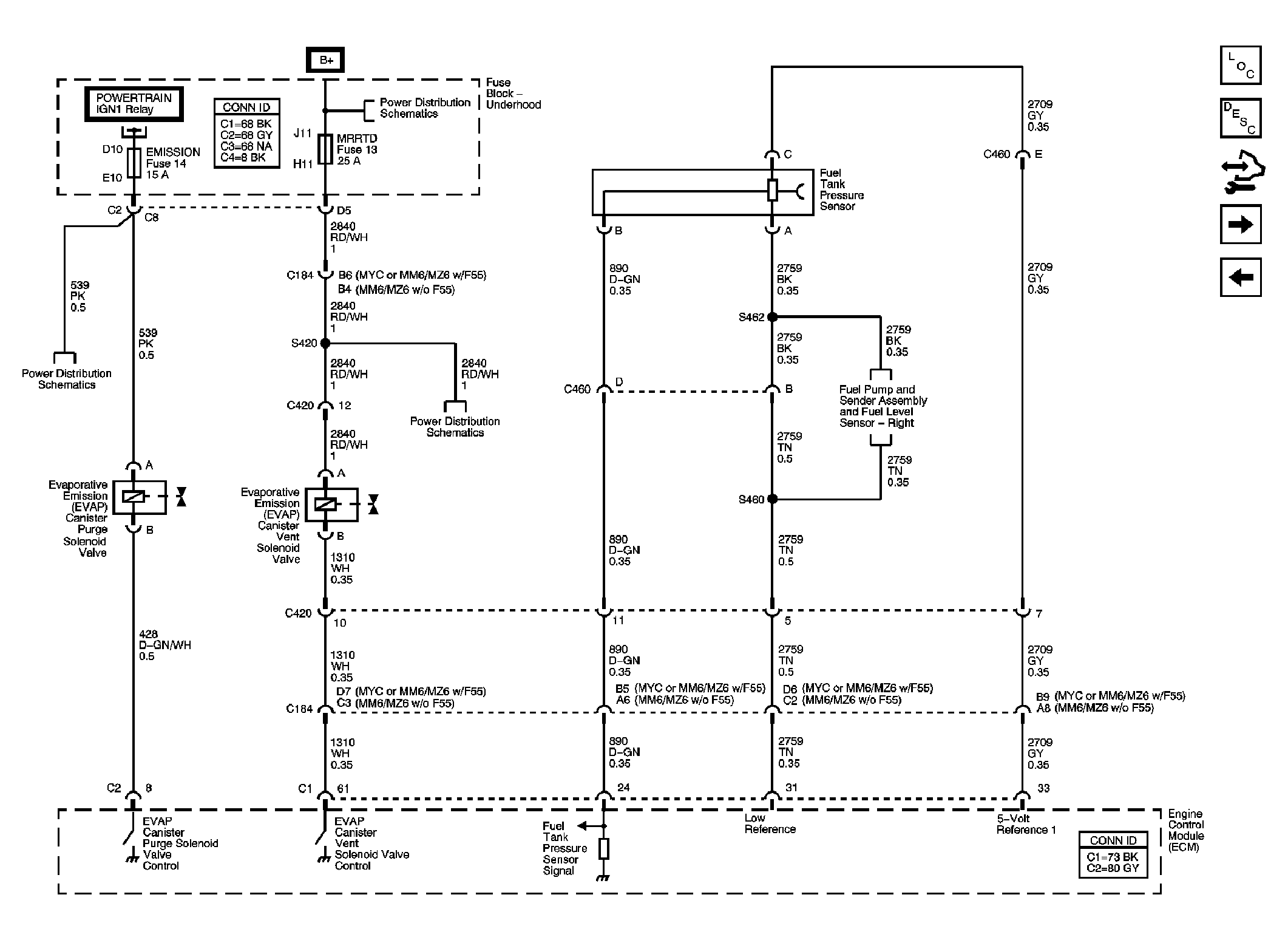

Fig 11: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

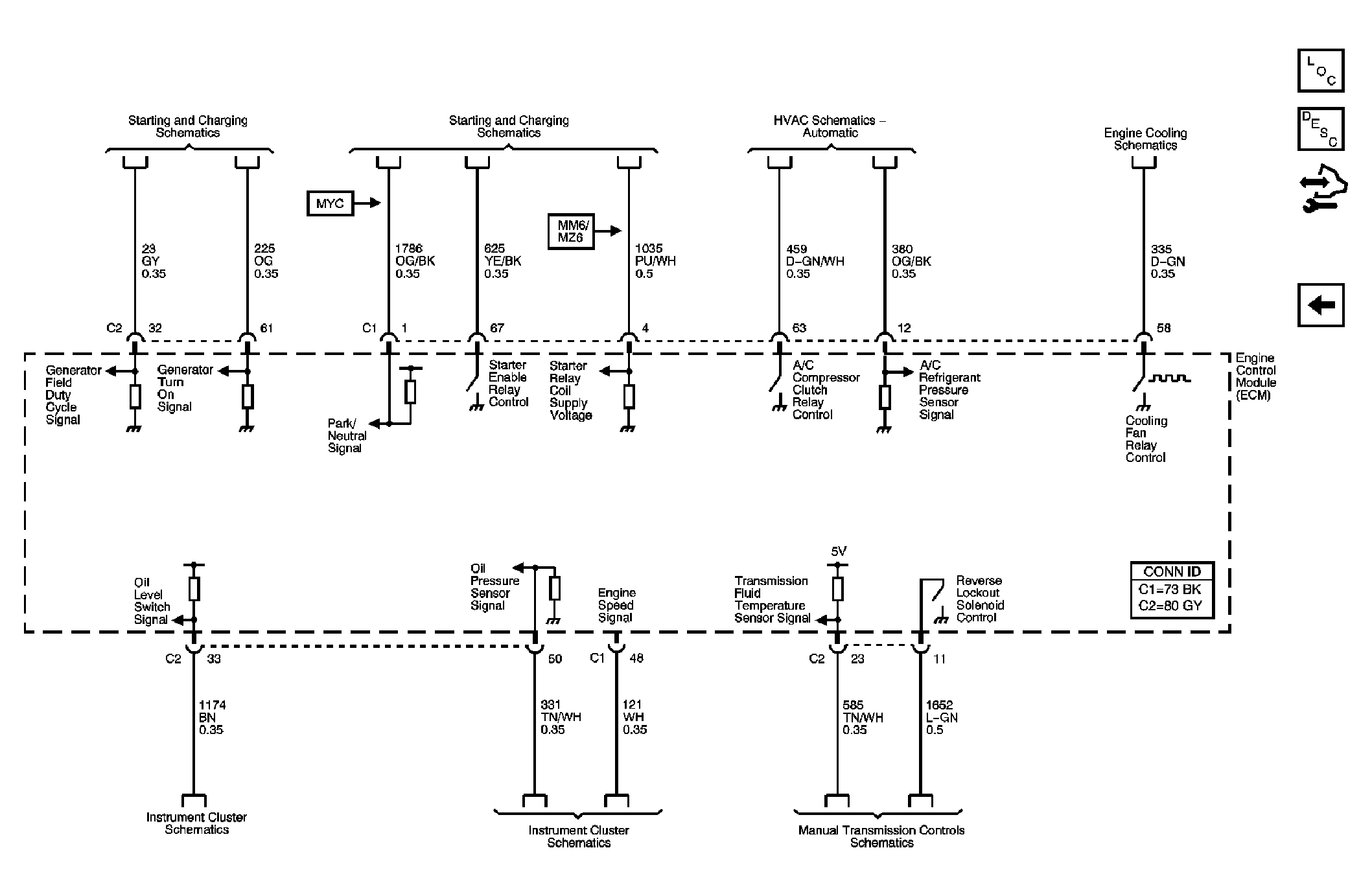

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
