Rear Axle Specifications



Rear Axle Specifications

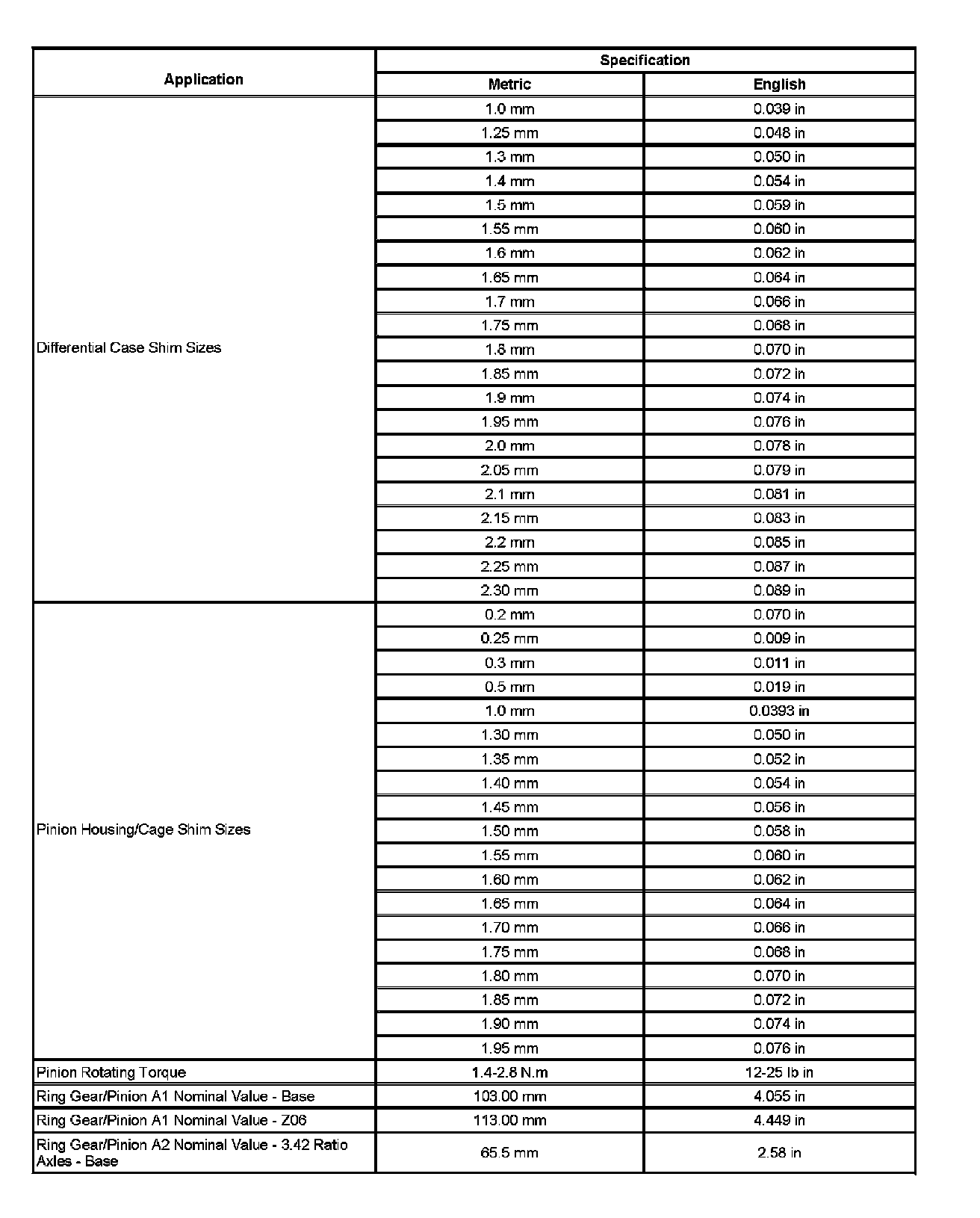

Rear Axle Specifications (Part 1):




Rear Axle Specifications (Part 2):
