Combination Switch



Lighting Systems Connector End Views

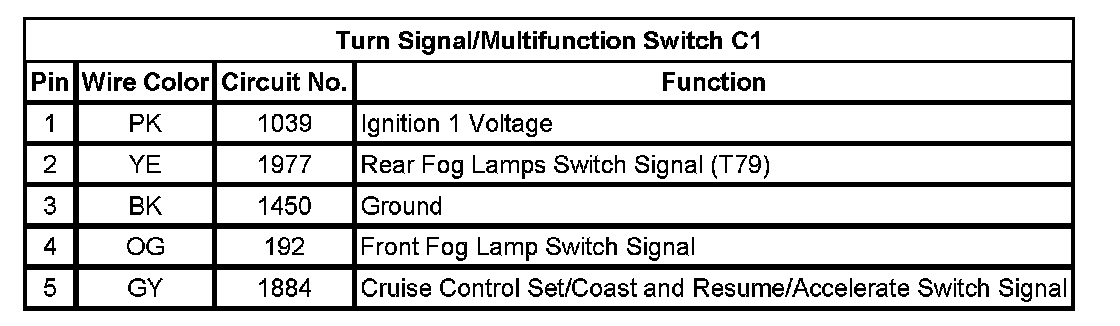

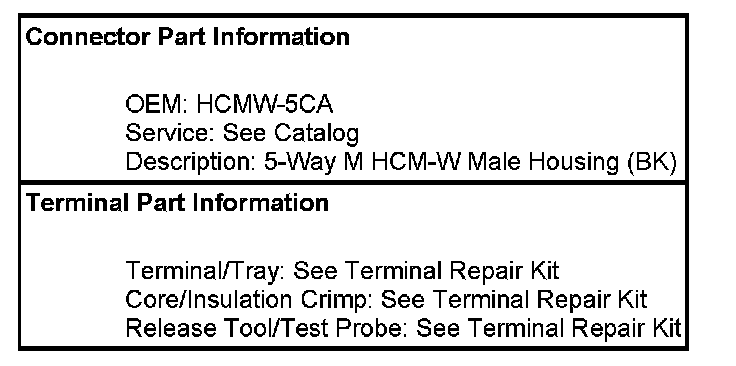

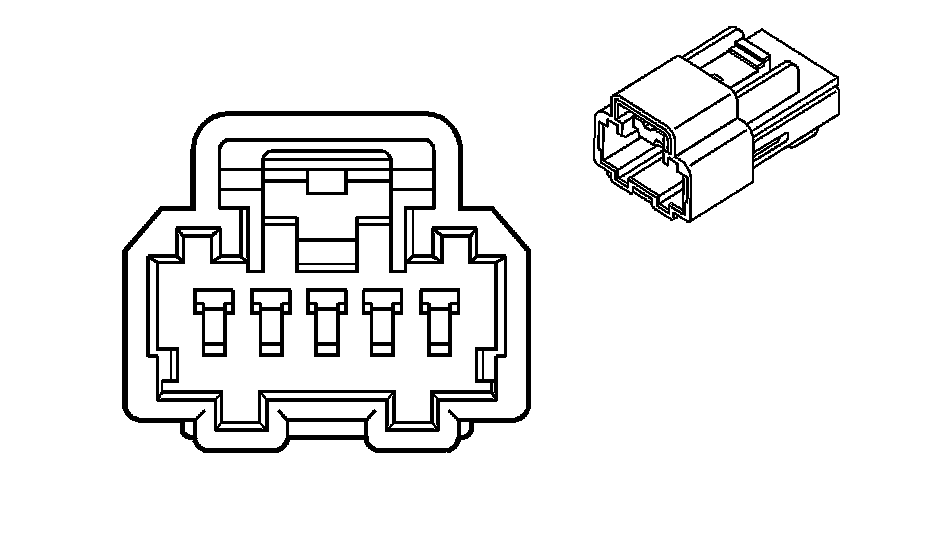

Turn Signal/Multifunction Switch C1

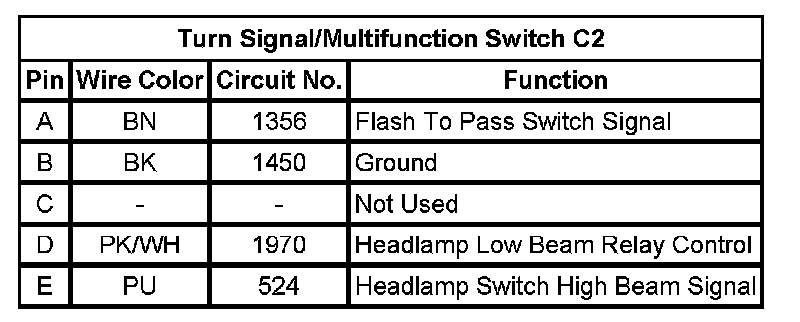

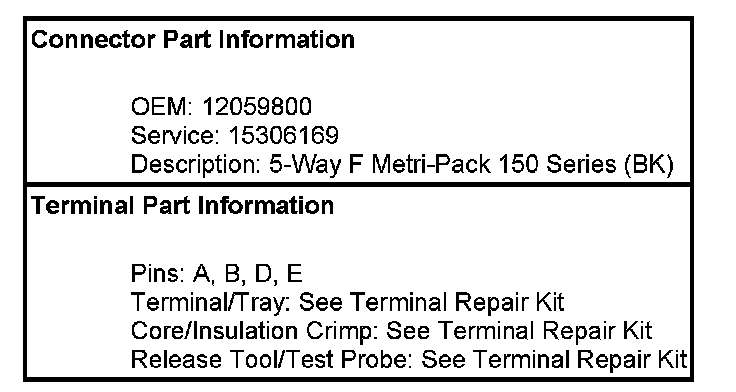

Turn Signal/Multifunction Switch C2

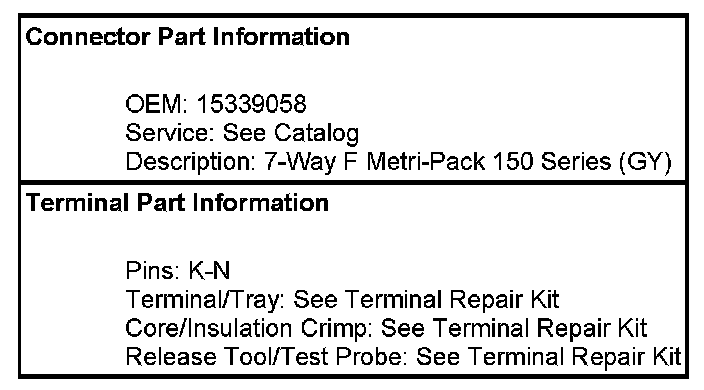

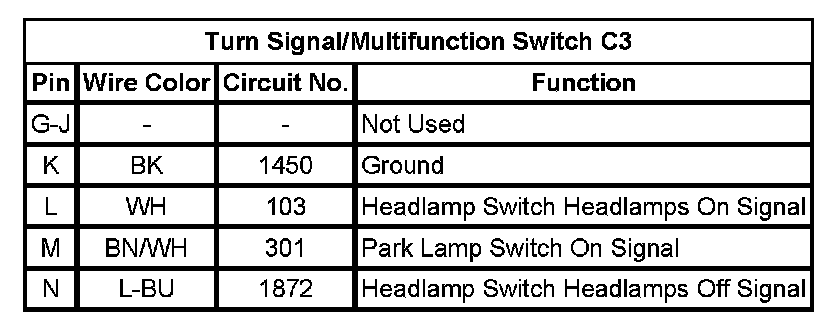

Turn Signal/Multifunction Switch C3

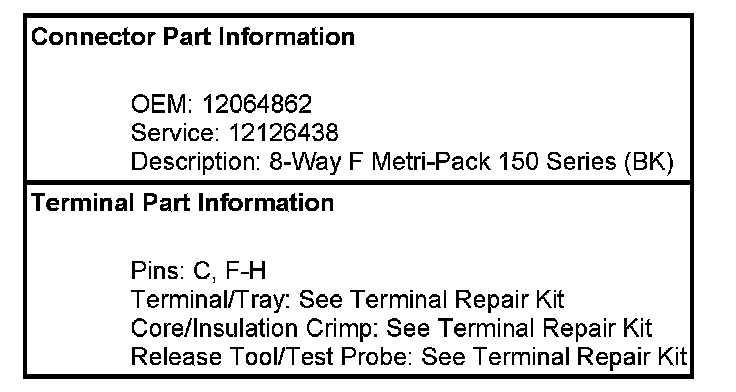

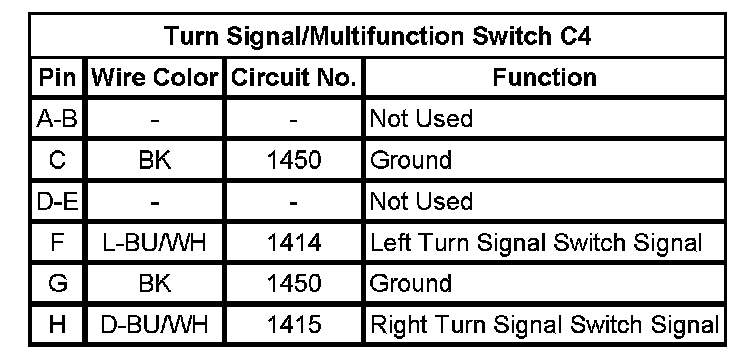

Turn Signal/Multifunction Switch C4
