Battery Negative Cable Replacement



Battery Negative Cable Replacement (7.0L)

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the rear compartment carpet.
3. Remove the passenger rear compartment front side trim panel.

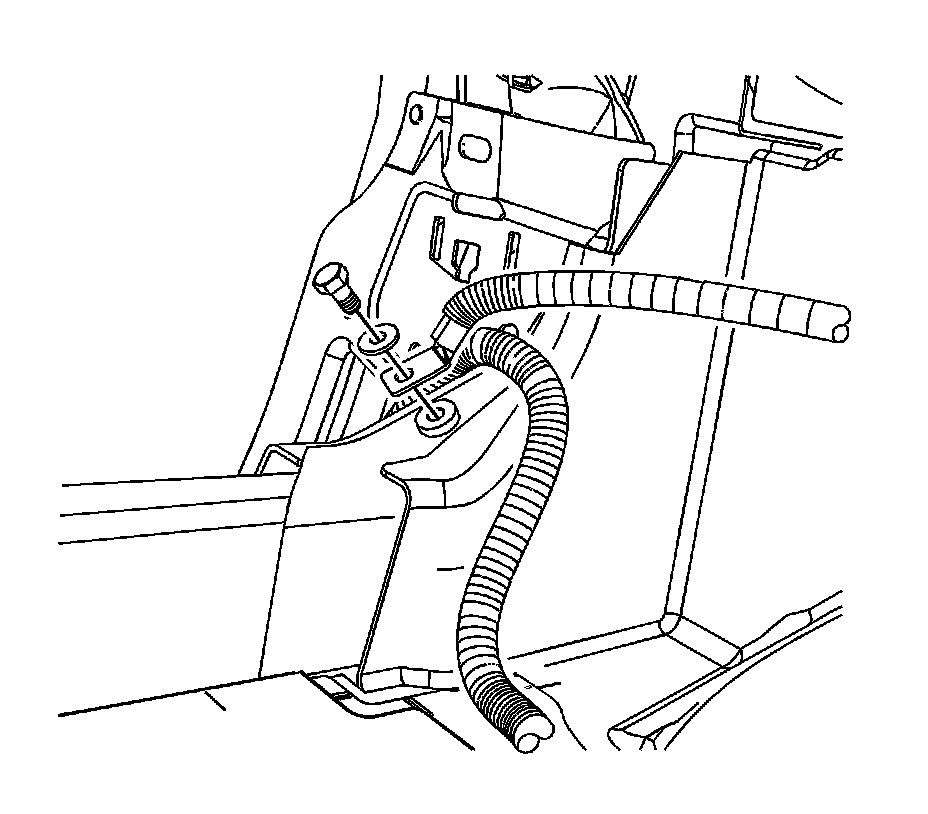

4. Remove the negative cable ground bolt from the chassis.
5. Remove the negative battery cable.

Installation Procedure

1. Install the negative battery cable.






Notice: Refer to Fastener Notice.

2. Install the negative cable ground bolt to the chassis.

Tighten the battery negative cable ground bolt to 25 N.m (18 lb ft).

3. Install the passenger rear compartment front side trim panel.
4. Install the rear compartment carpet.
5. Connect the negative battery cable.
