Immobilizer Component Views

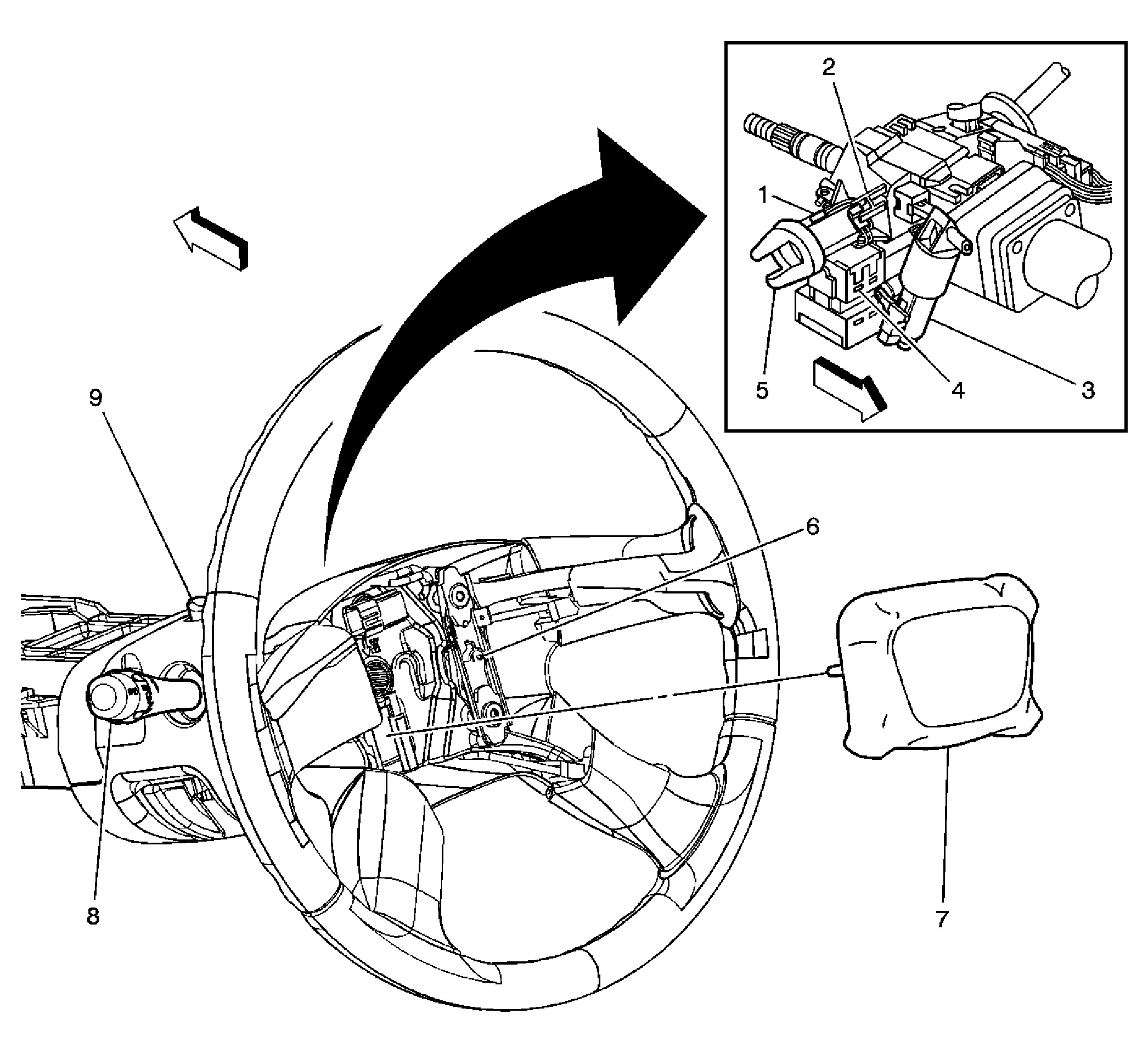

Fig 1: Component Views - Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passlock Sensor
2	Ignition Key Alarm Switch
3	Ignition Lock Cylinder Control Actuator
4	Ignition Switch
5	Ignition Key Cylinder
6	Horn Switch
7	Inflatable Restraint Steering Wheel Module
8	Turn Signal/Multifunction Switch
9	Hazard Switch
