Antilock Brake System Component Views

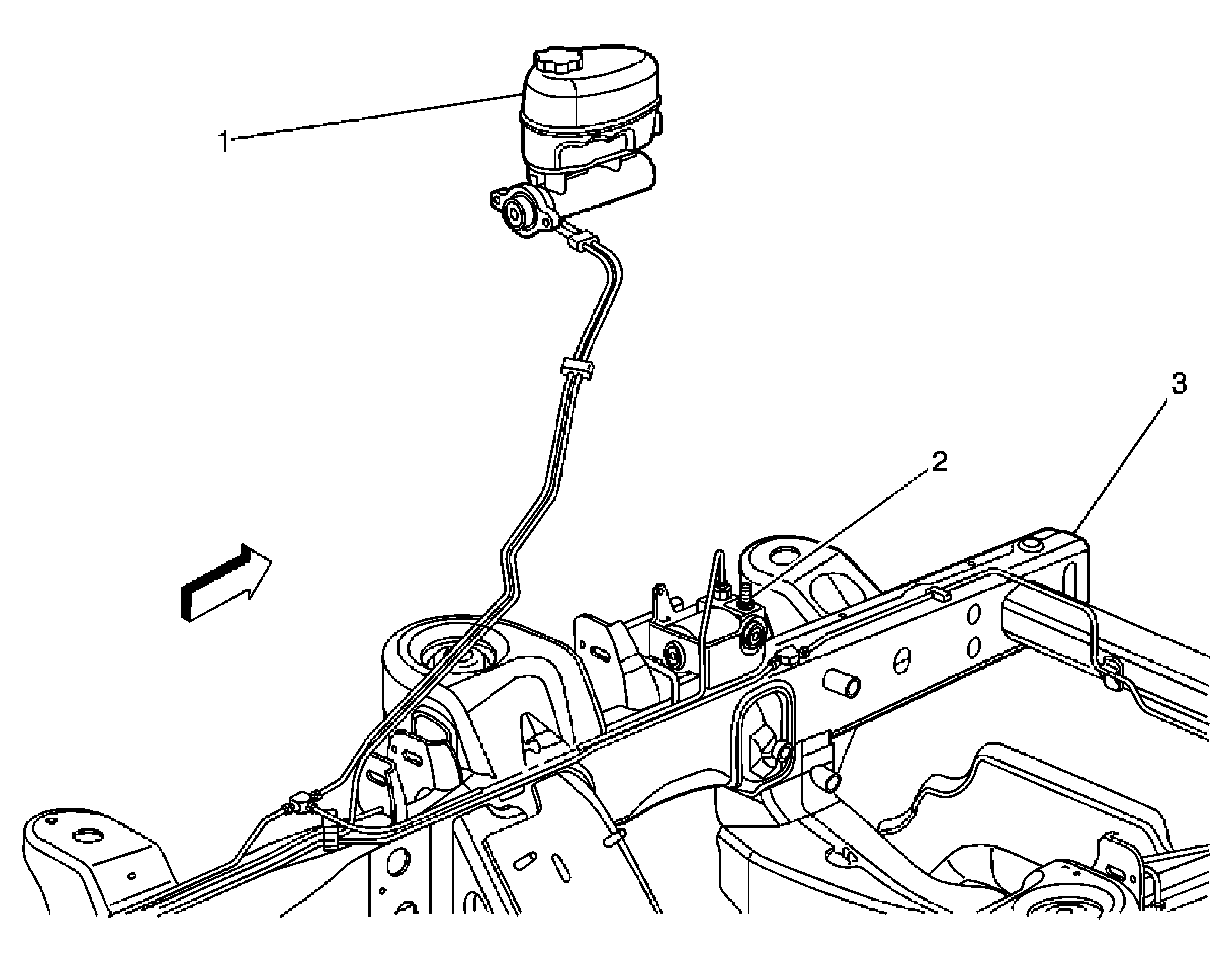

Fig 1: Component View - LF Frame (JL4)

Courtesy of GENERAL MOTORS CORP.

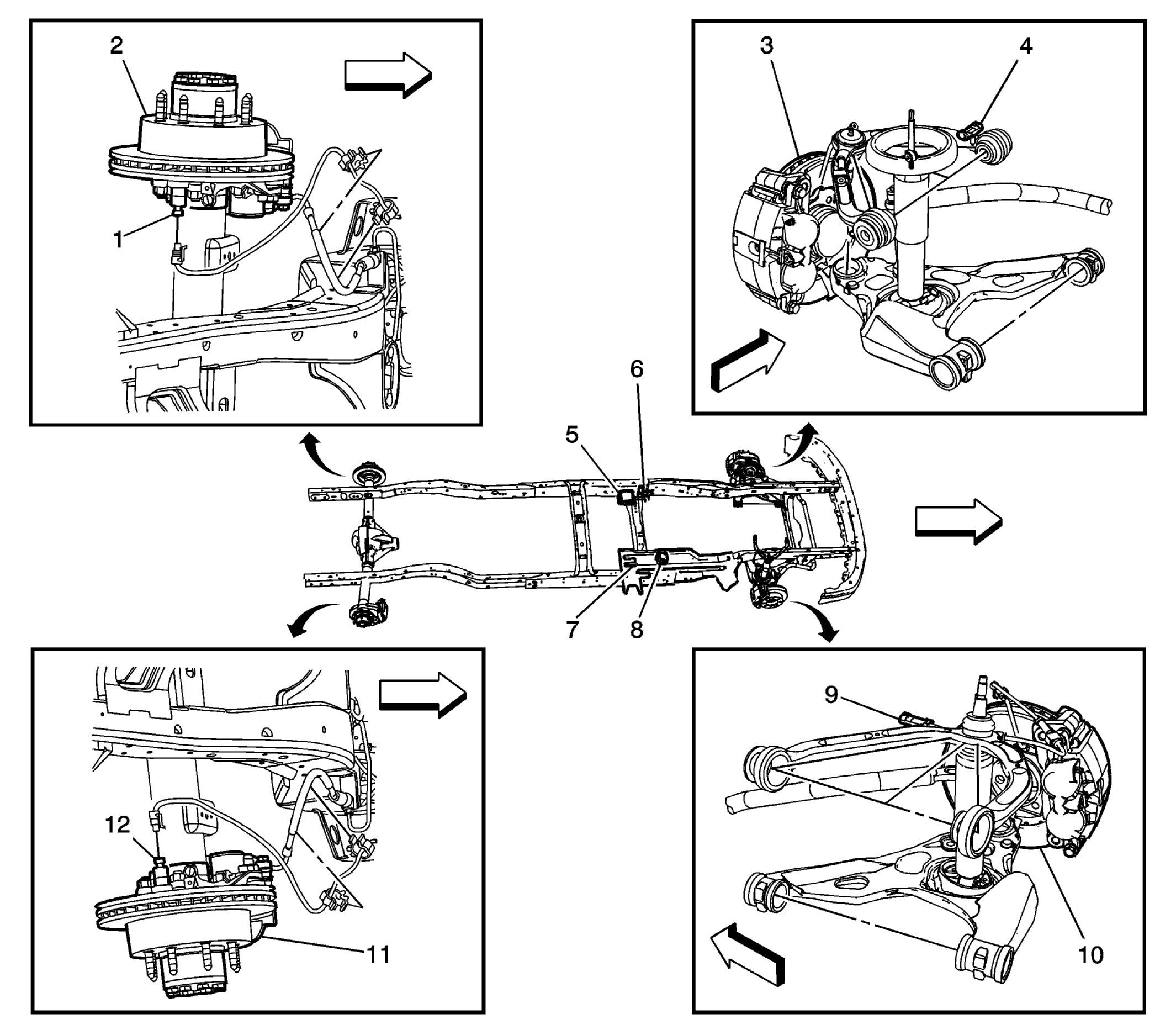

Fig 2: Frame and Underbody

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LR (JL4)
2	Rotor - LR
3	Rotor - LF
4	Wheel Speed Sensor (WSS) Connector - LF
5	Electronic Brake Control Module (EBCM)
6	Brake Pressure Differential Switch (Light Duty)
7	Floor Panel - RF
8	Yaw and Lateral Acceleration Sensor (JL4)
9	Wheel Speed Sensor (WSS) Connector - RF
10	Rotor - RF
11	Rotor - RR
12	Wheel Speed Sensor (WSS) - RR (JL4)

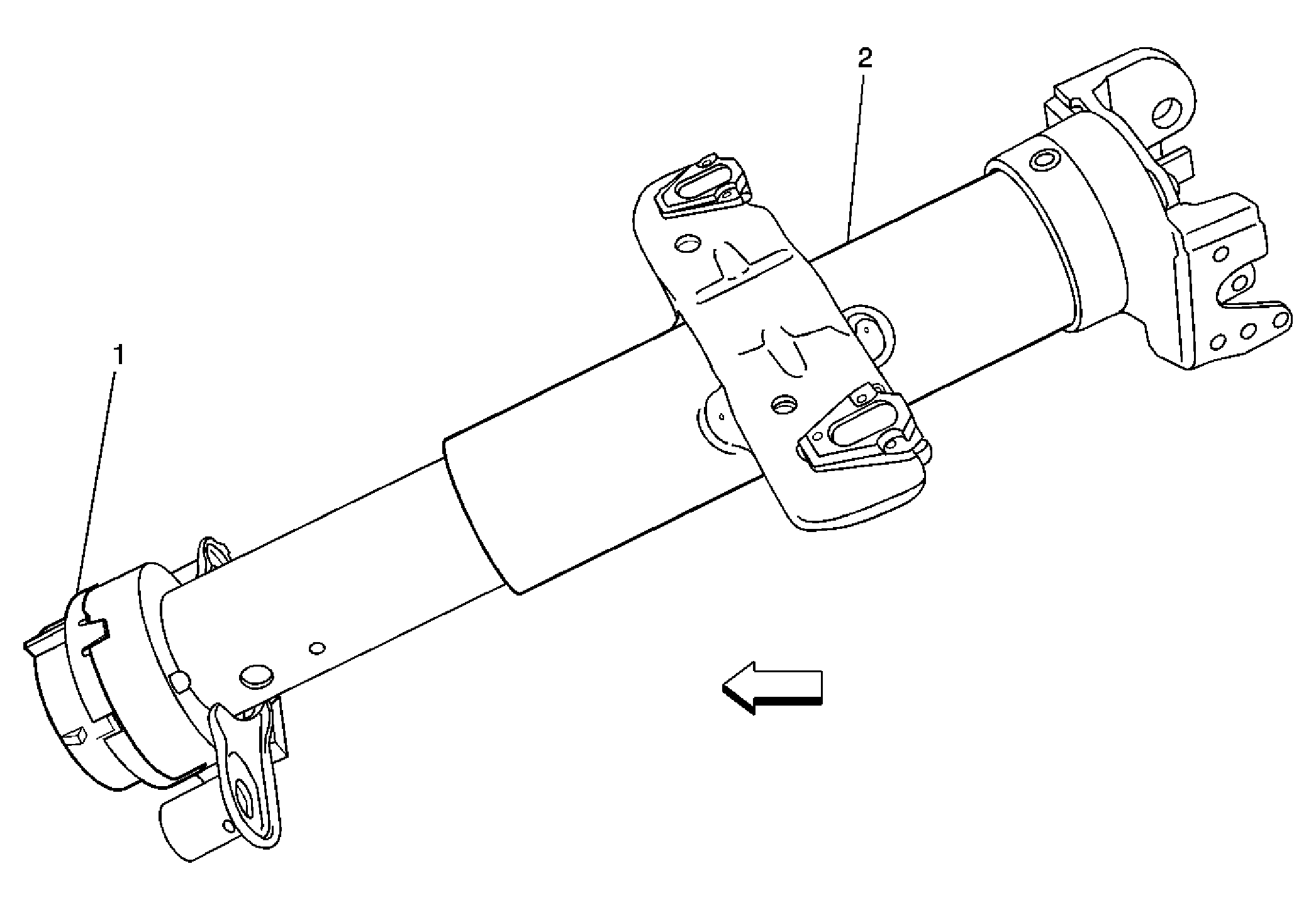

Fig 3: Component View - Lower Left Of I/P (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Speed/Position Sensor
2	Steering Column Jacket Assembly

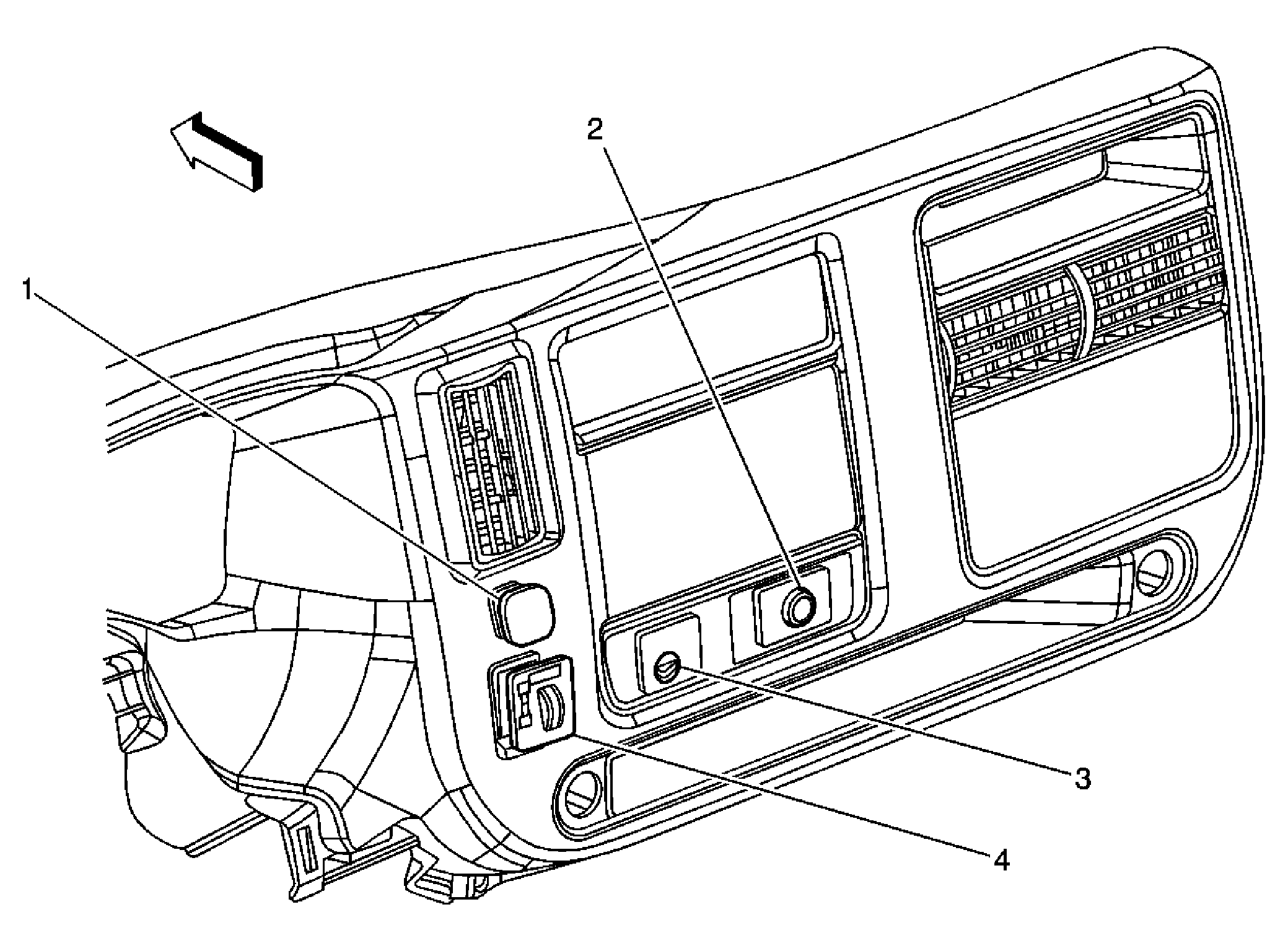

Fig 4: Component View - Center Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tow/Haul Switch
2	Traction Control Switch (JL4)
3	Inflatable Restraint I/P Module Disable Switch (Heavy Duty)
4	Blower Motor Switch - Auxiliary (C36)
