Transmission Clearance Specifications



Transmission Clearance Specifications

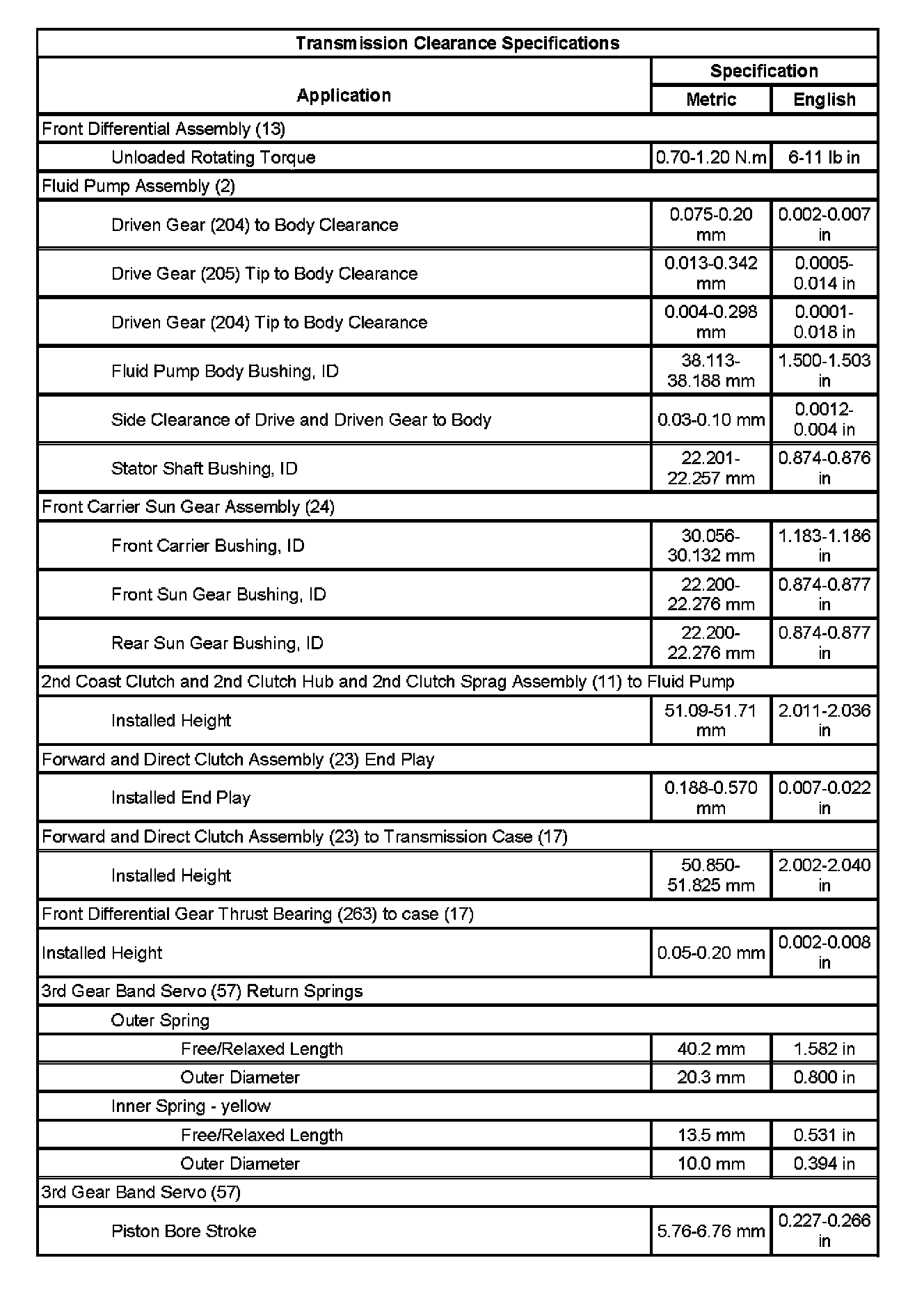

Transmission Clearance Specifications (Part 1):




Transmission Clearance Specifications (Part 2):

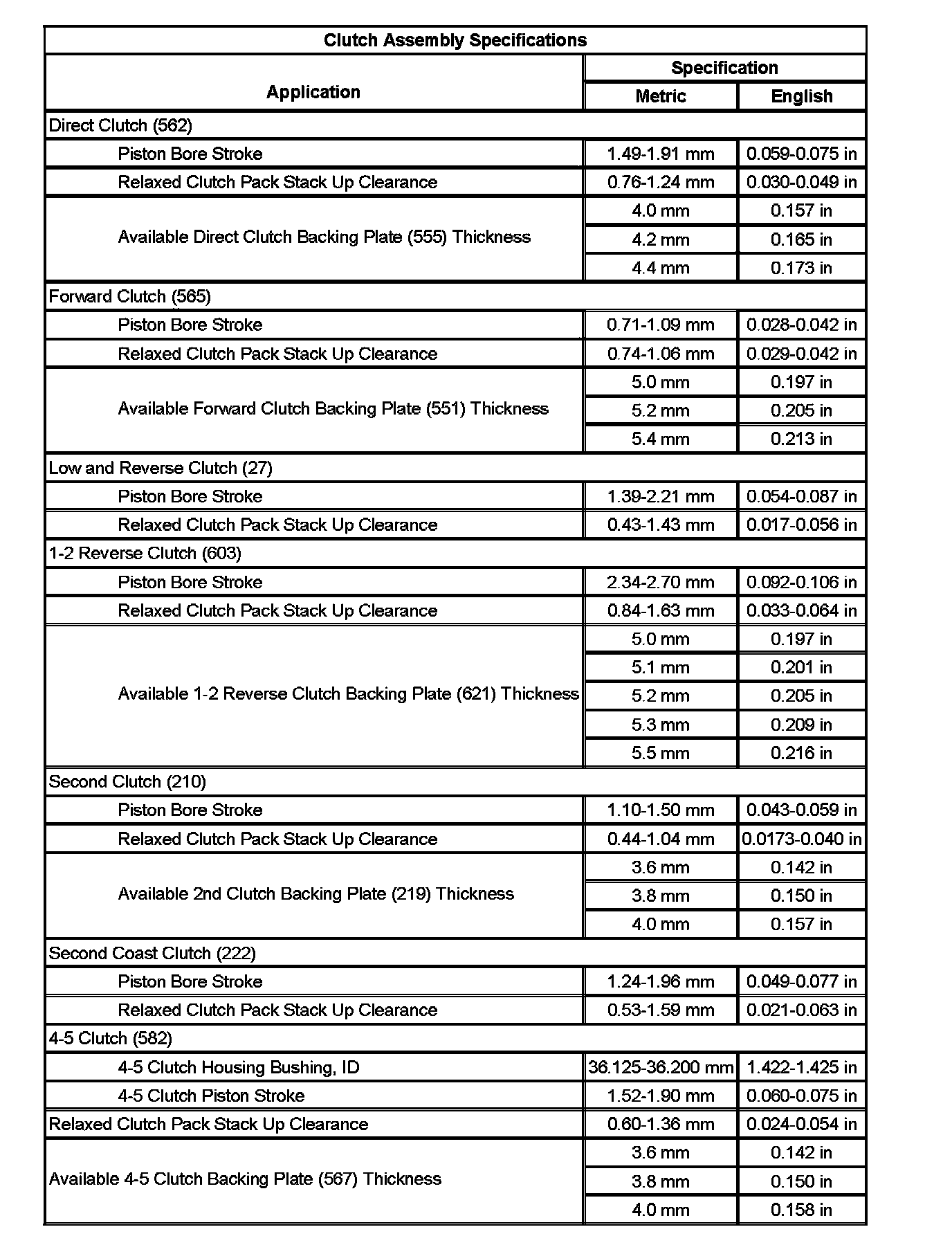

Clutch Assembly Specifications:
