Engine Control Module: Locations

Engine Controls Component Views

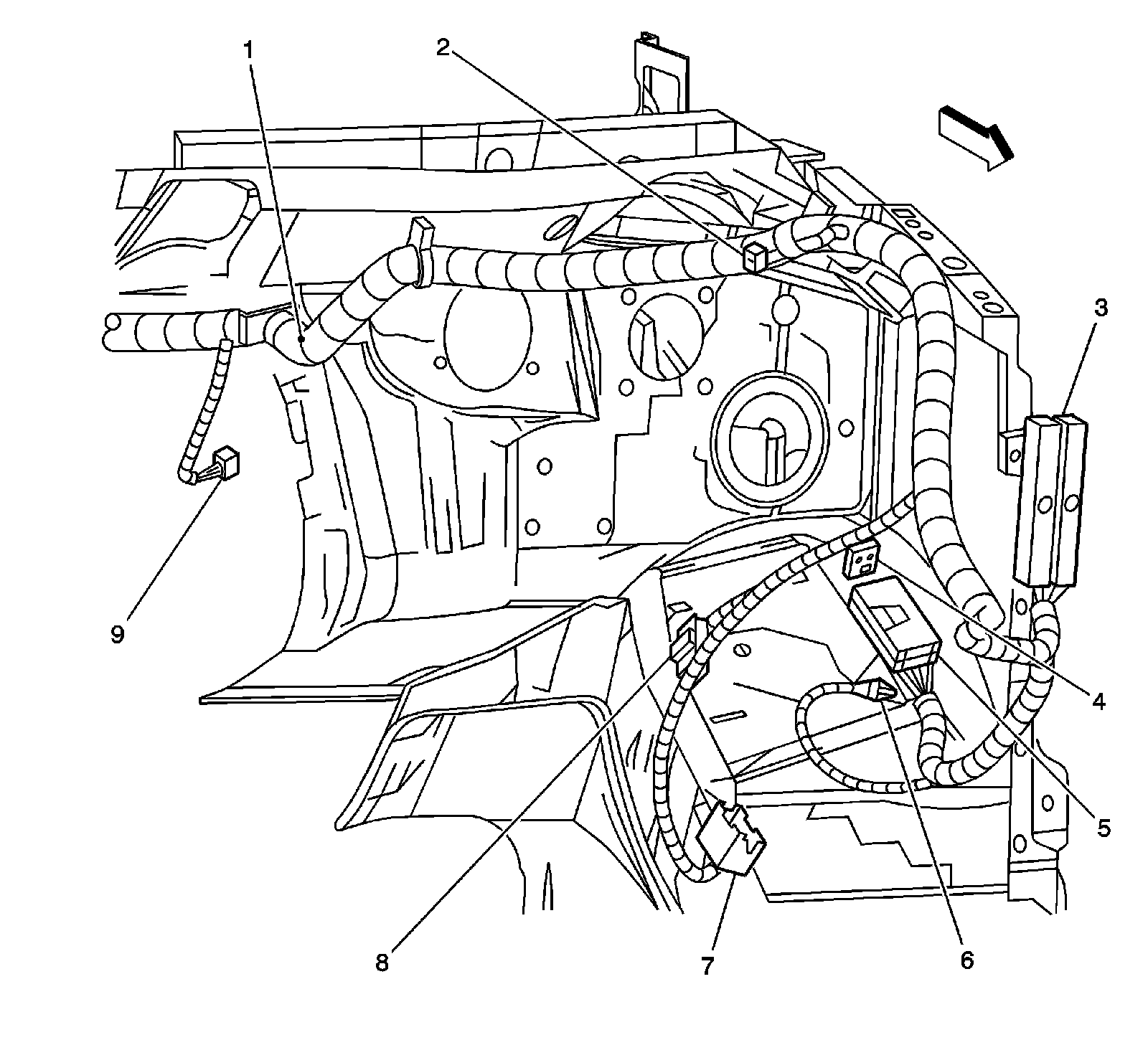

LR of the Engine Compartment




1 - S101
2 - C109
3 - Powertrain Control Module (PCM) C1, C2
4 - Fuse Block Underhood - C6
5 - Fuse Block Underhood - C1
6 - Horn Assembly Connector
7 - C100
8 - C101
9 - A/C Compressor Clutch Connector (C60)
