Air Bag Control Module: Locations

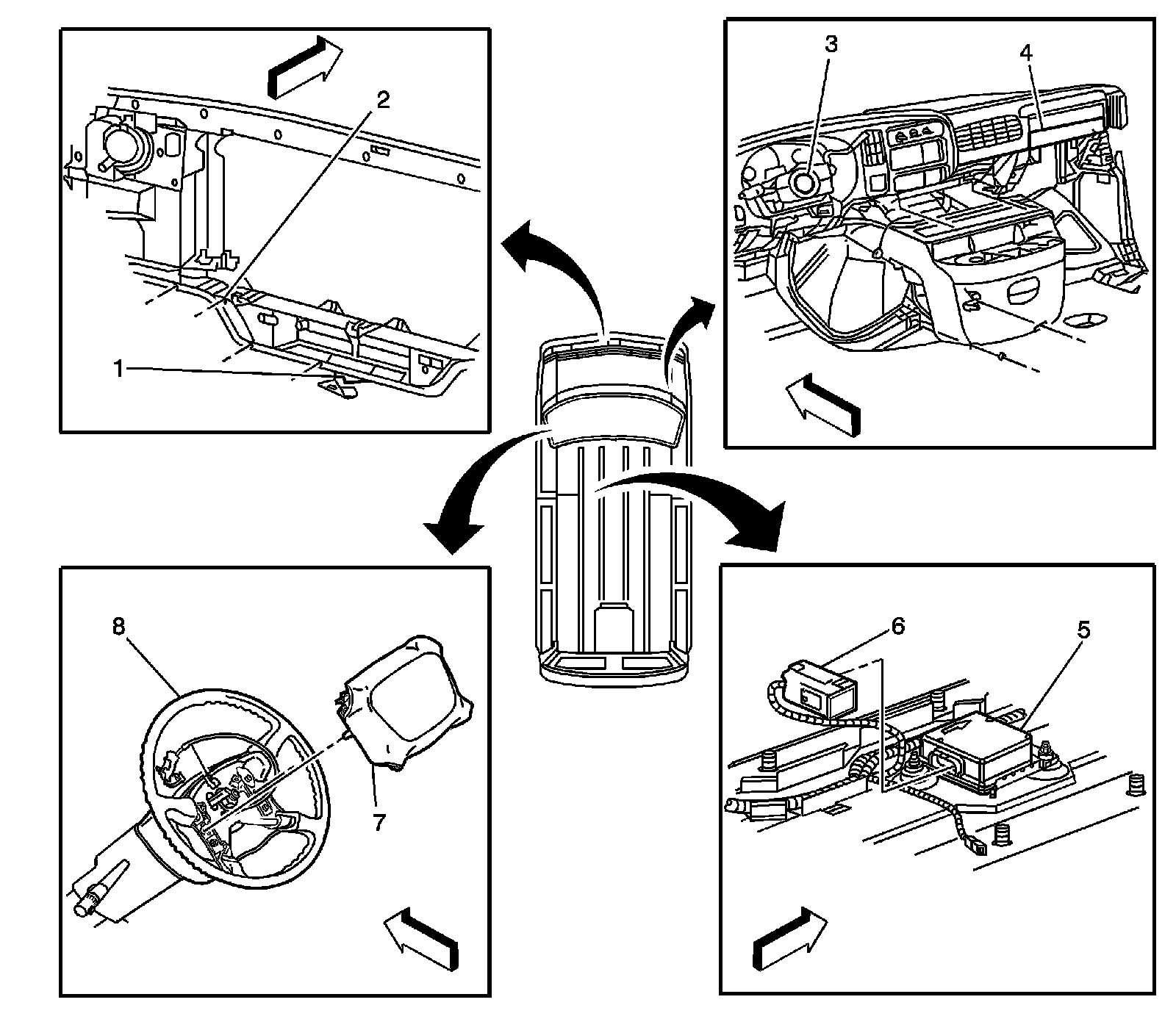

SIR Component Views

SIR Components




1 - Inflatable Restraint Front End Sensor
2 - Front End Lower Tie Bar
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Inflatable Restraint I/P Module
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
7 - Inflatable Restraint Steering Wheel Module
8 - Steering Wheel
