Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shift Indicator - A/T

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Shift Indicator - A/T

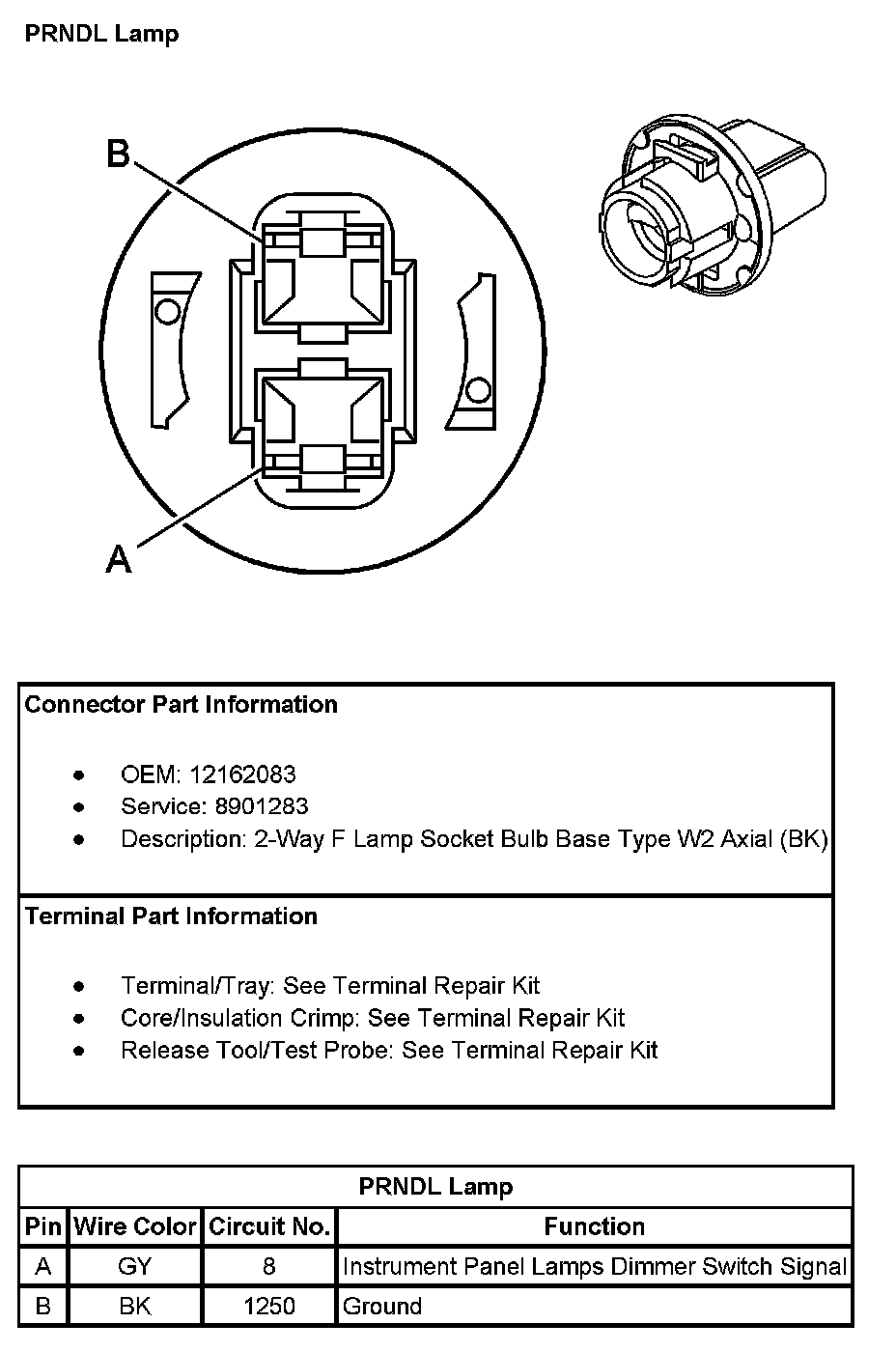

PRNDL Lamp:
