Steering Control Module: Locations

Power Steering Component Views

Steering Column Components

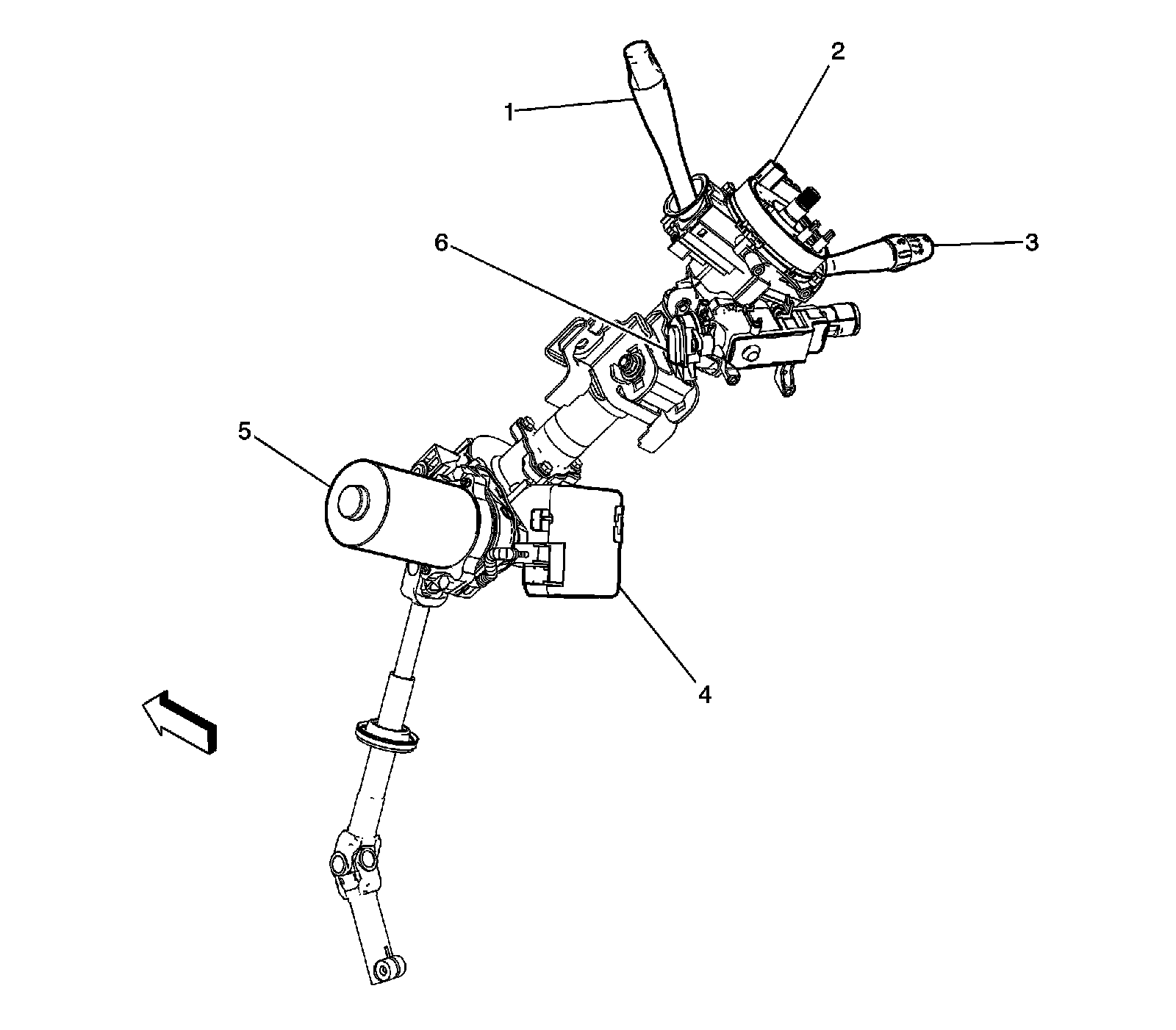

Steering Column Components:

1 - Turn Signal / Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - Windshield Wiper / Washer Switch
4 - Ignition Lock Control Actuator (MN5)
5 - Power Steering Control Module (PSCM)
6 - Electronic Power Steering (EPS) Motor
7 - Ignition Switch
