Engine Compartment Views

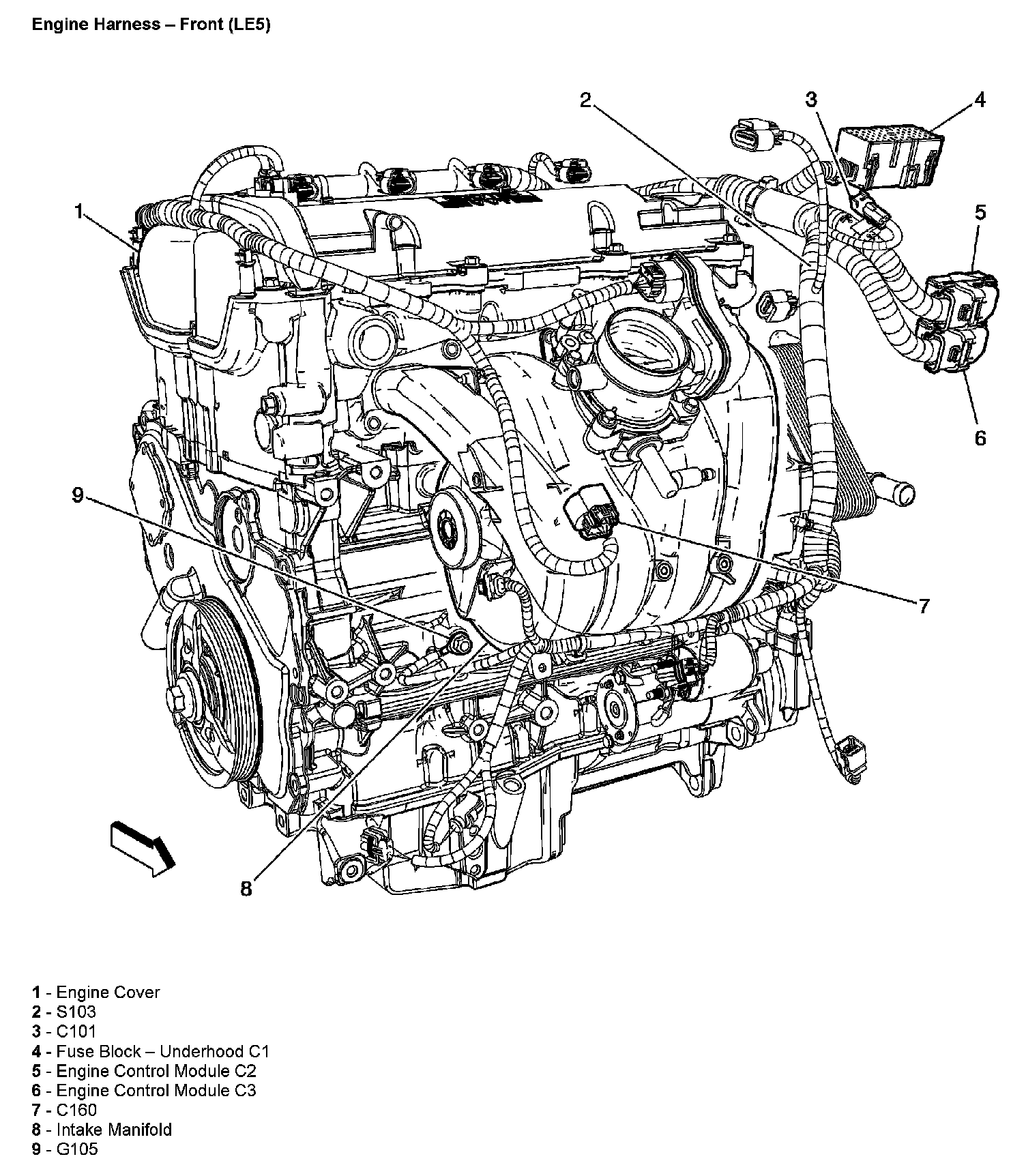

Engine Harness - Front (With RPO Code LE5):

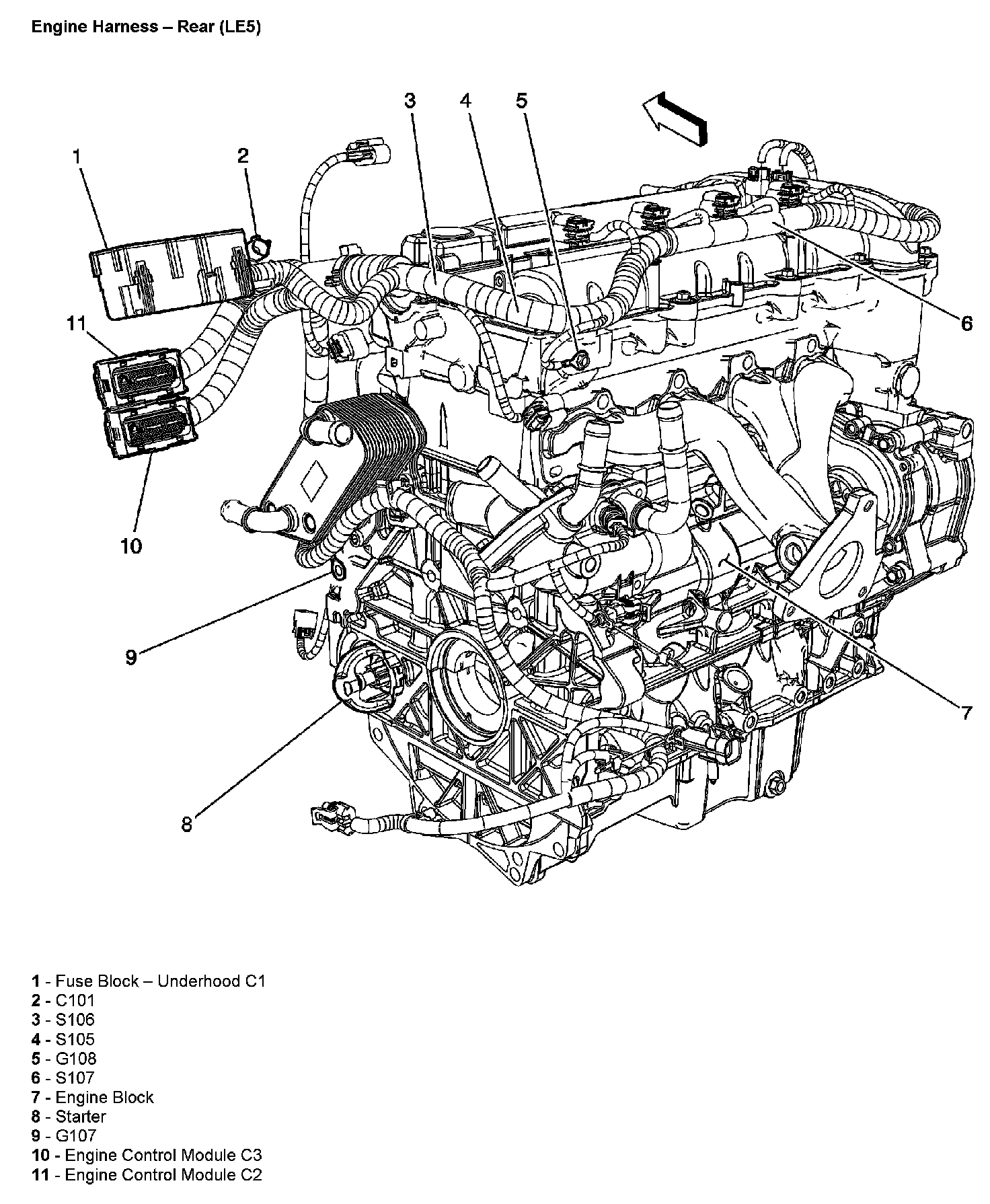

Engine Harness - Rear (With RPO Code LE5):
