Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

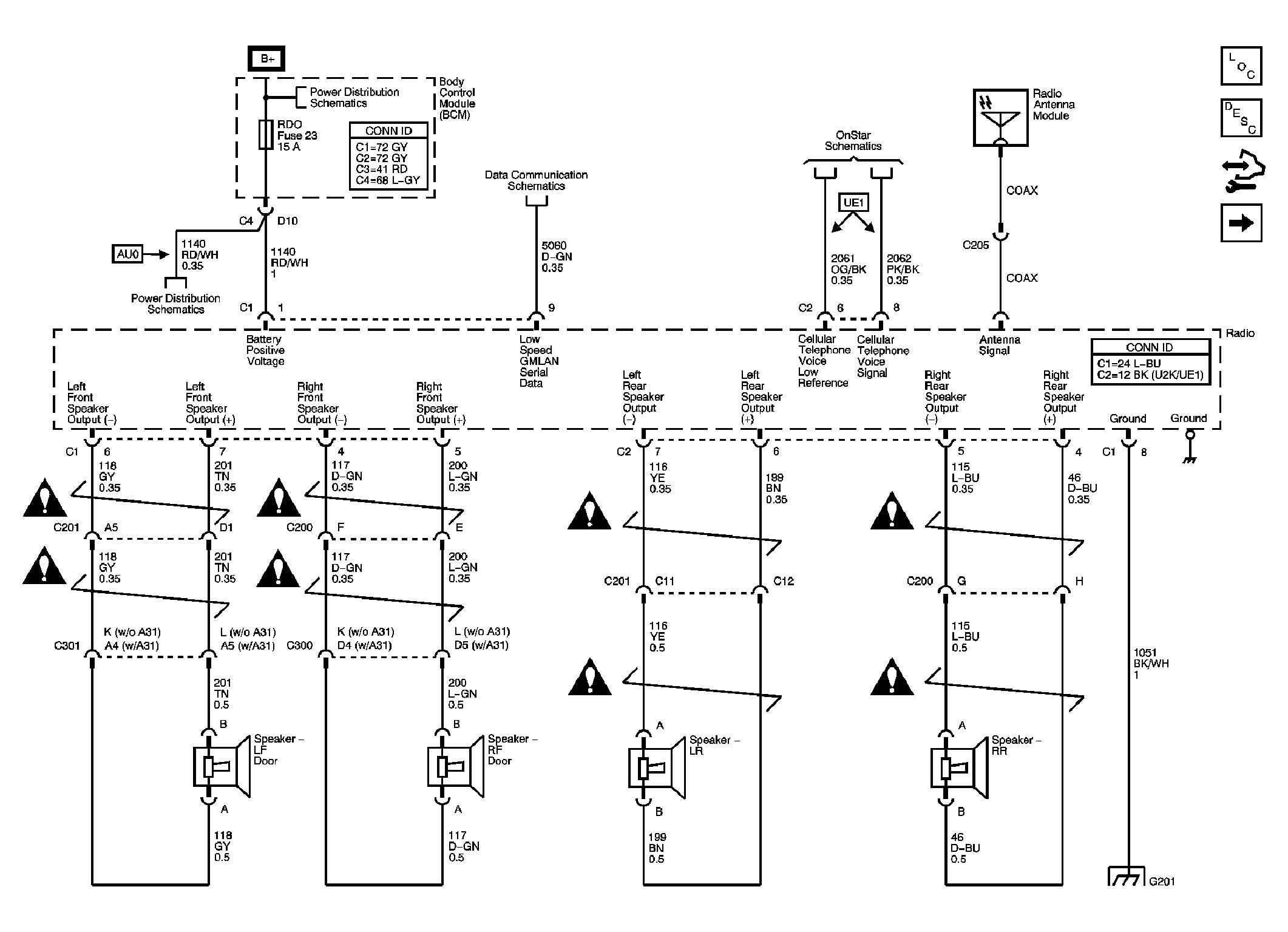

Fig 1: Radio (UQ4)

Courtesy of GENERAL MOTORS CORP.

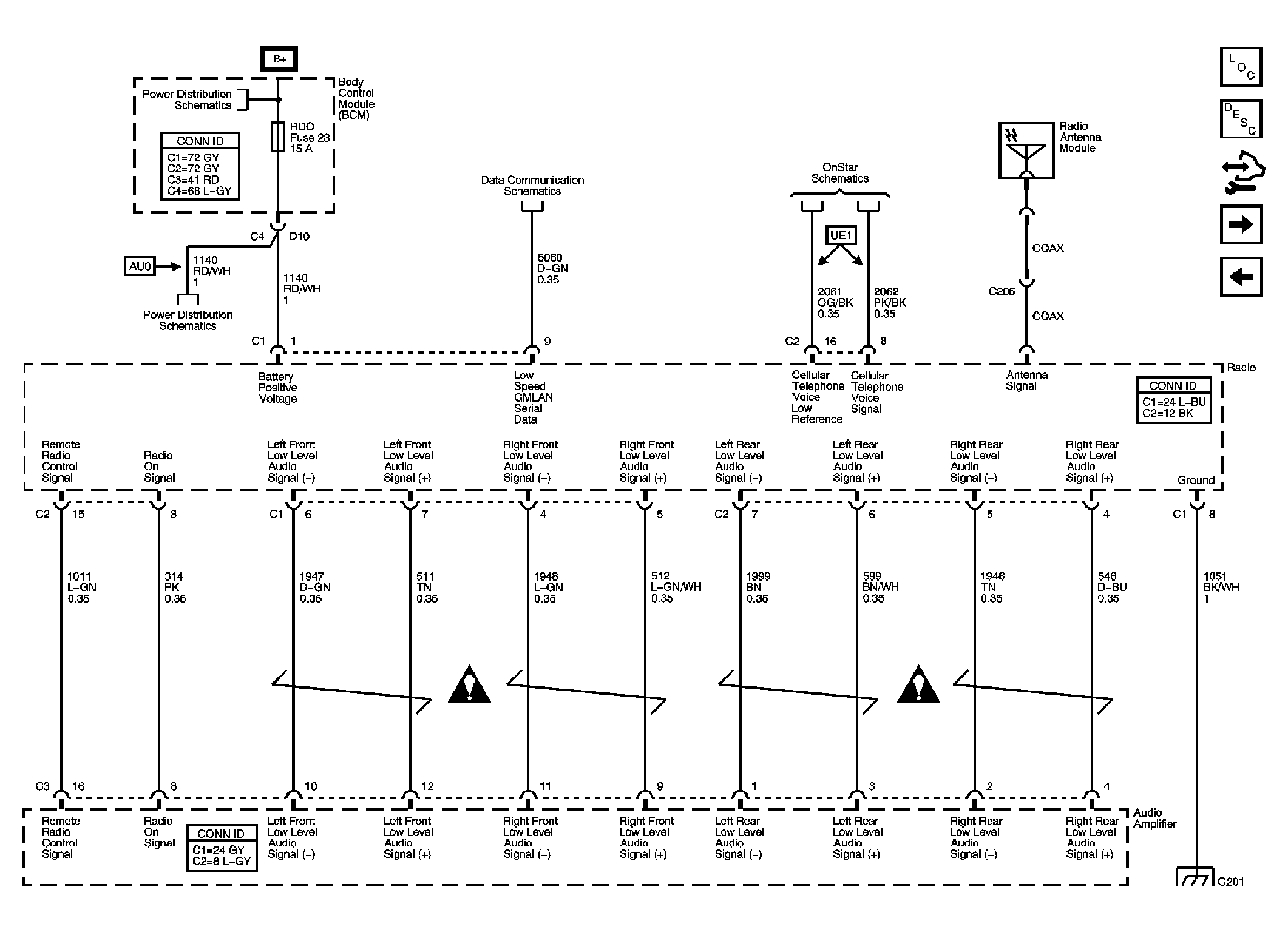

Fig 2: Power, Ground, Commuincation (UQ3)

Courtesy of GENERAL MOTORS CORP.

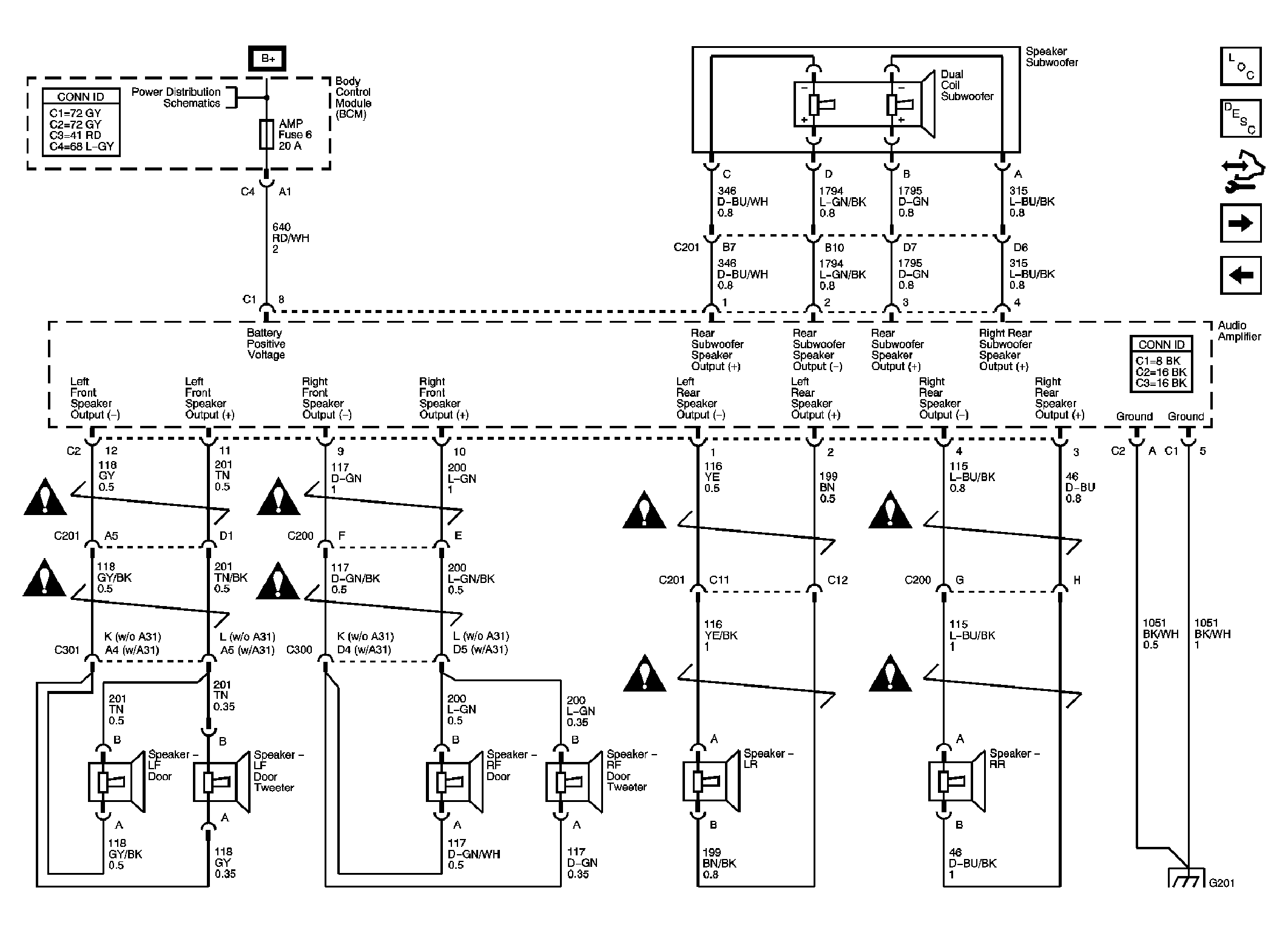

Fig 3: Amplifier, Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

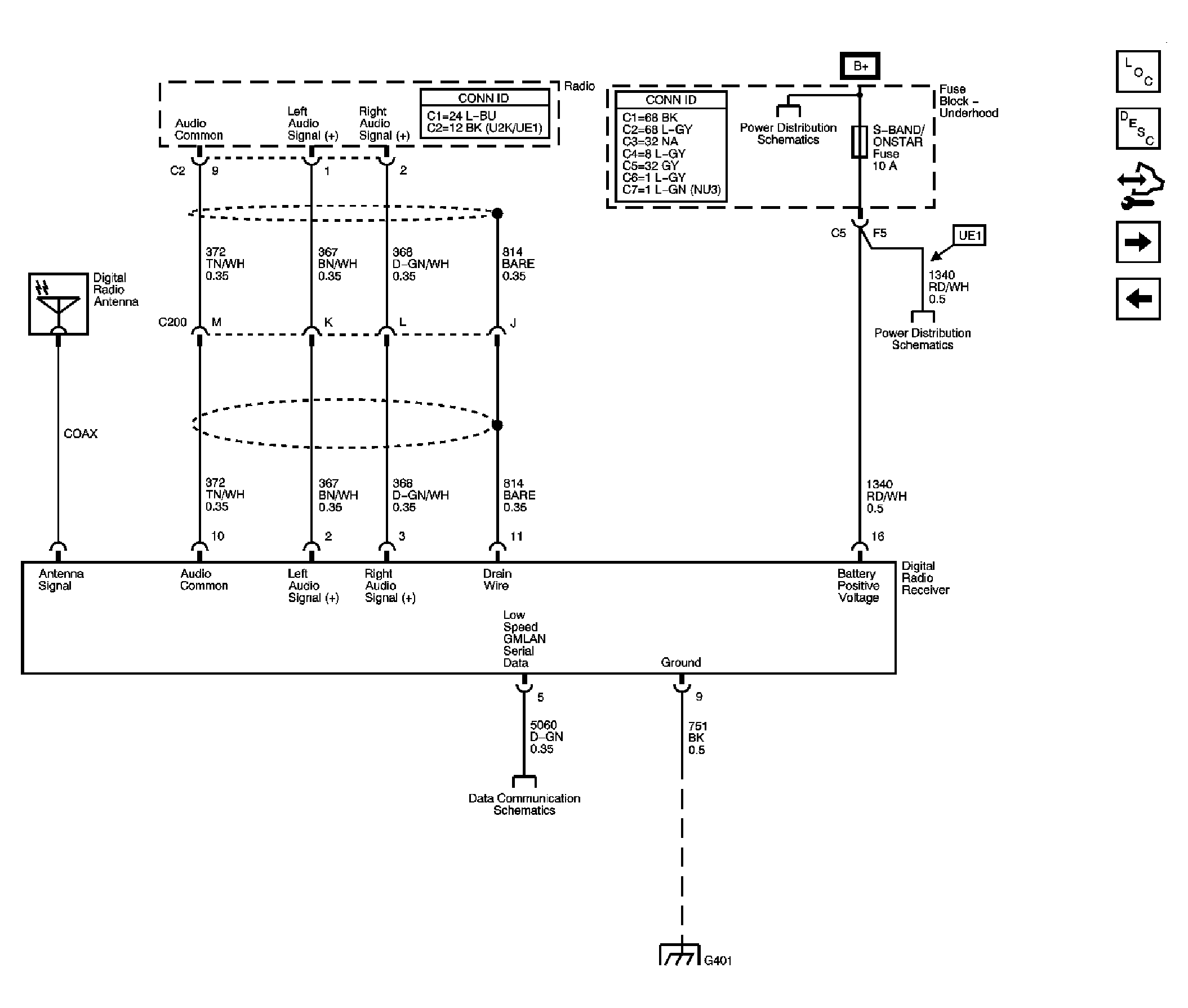

Fig 4: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.

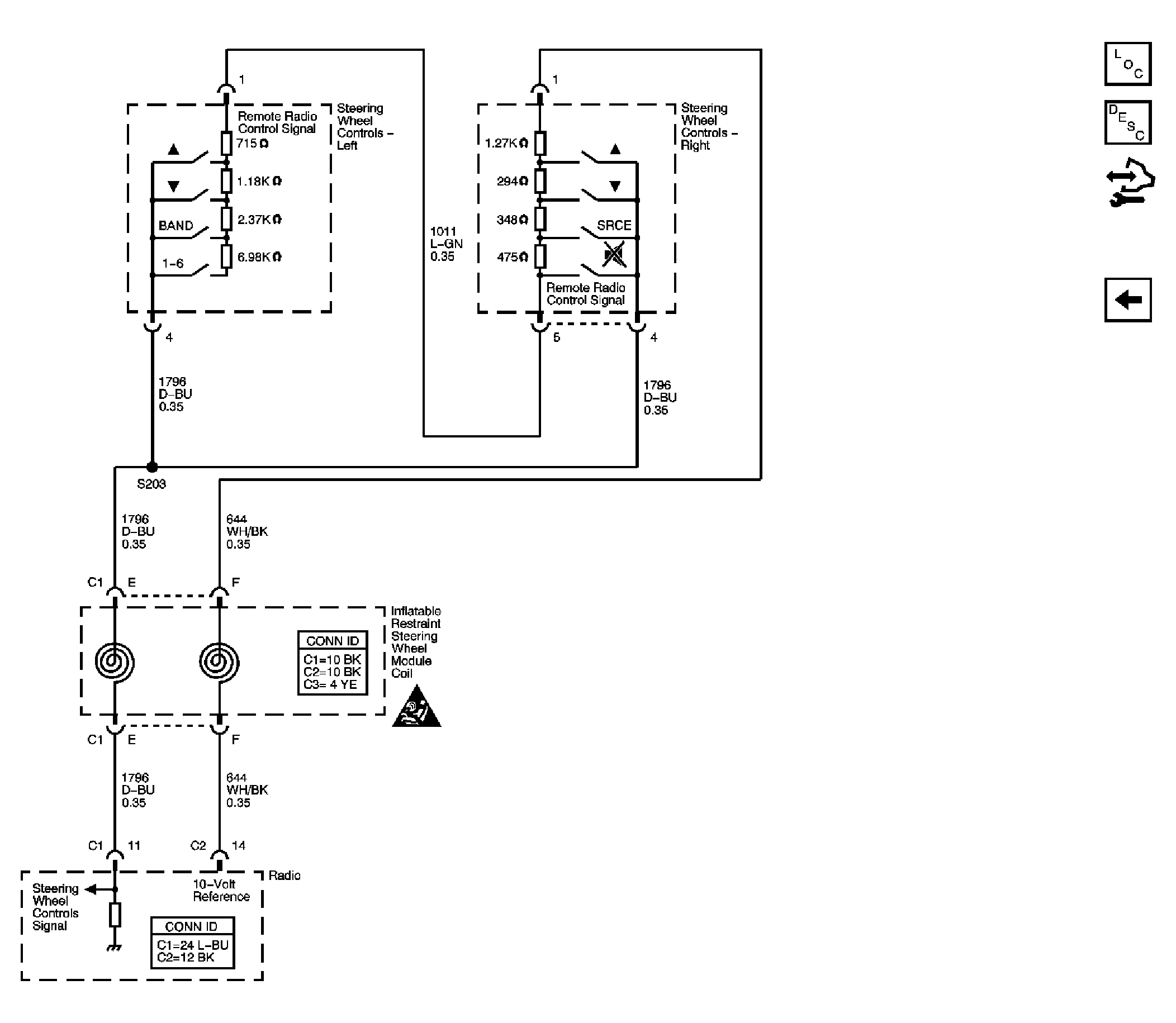

Fig 5: Redundant Radio Controls

Courtesy of GENERAL MOTORS CORP.
