Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

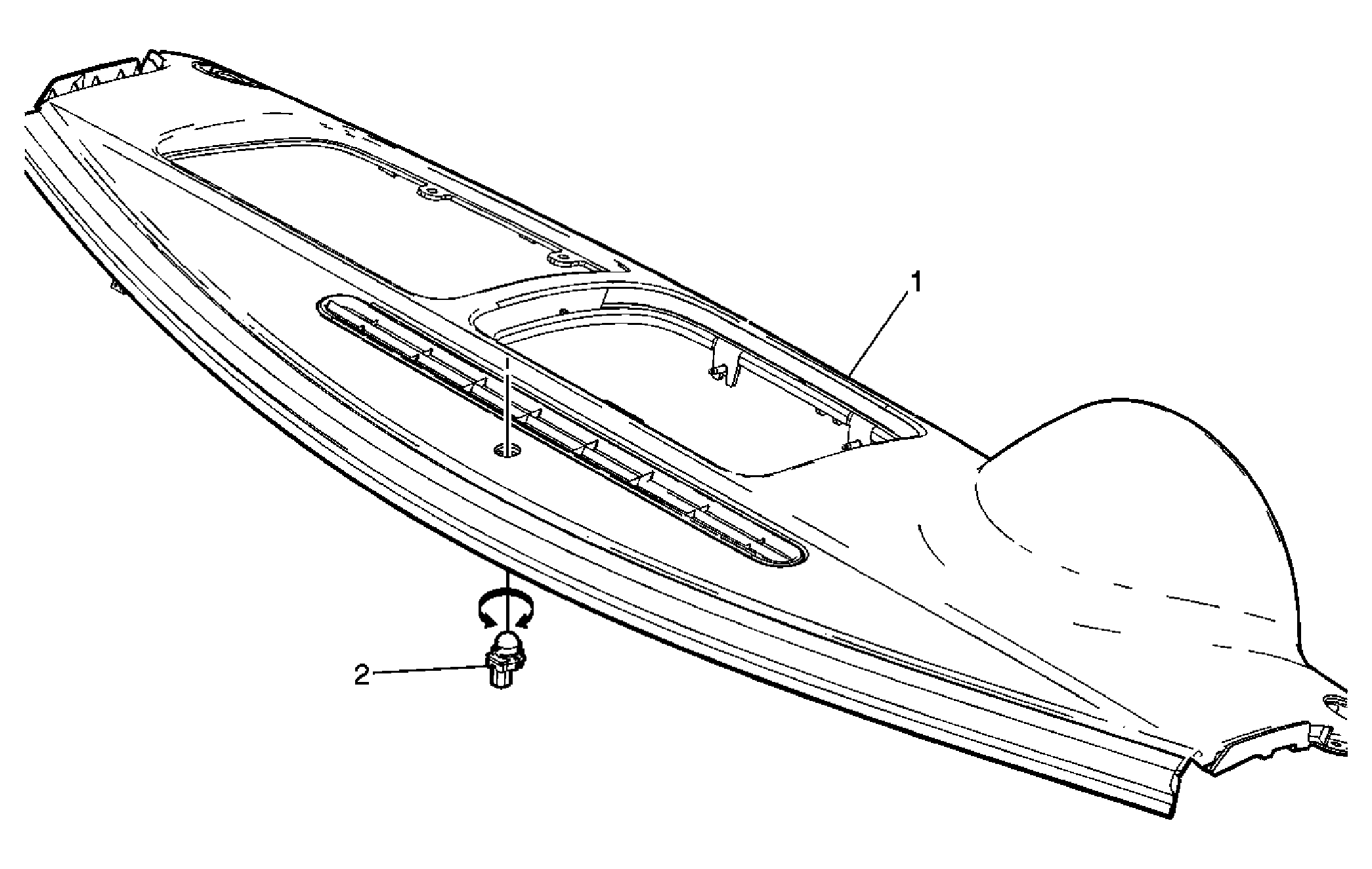

Fig 1: Ambient Light Sensor
GM1608418Courtesy of GENERAL MOTORS COMPANY
Ambient Light Sensor Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Upper Trim Pad
Refer to Instrument Panel Upper Trim Pad Replacement .
2 Daytime Running Lamp Ambiant Light Sensor Assembly
  1. Twist and pull down to remove.
  2. Disconnect the electrical connector.
