Personal Audio Link (PAL)

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

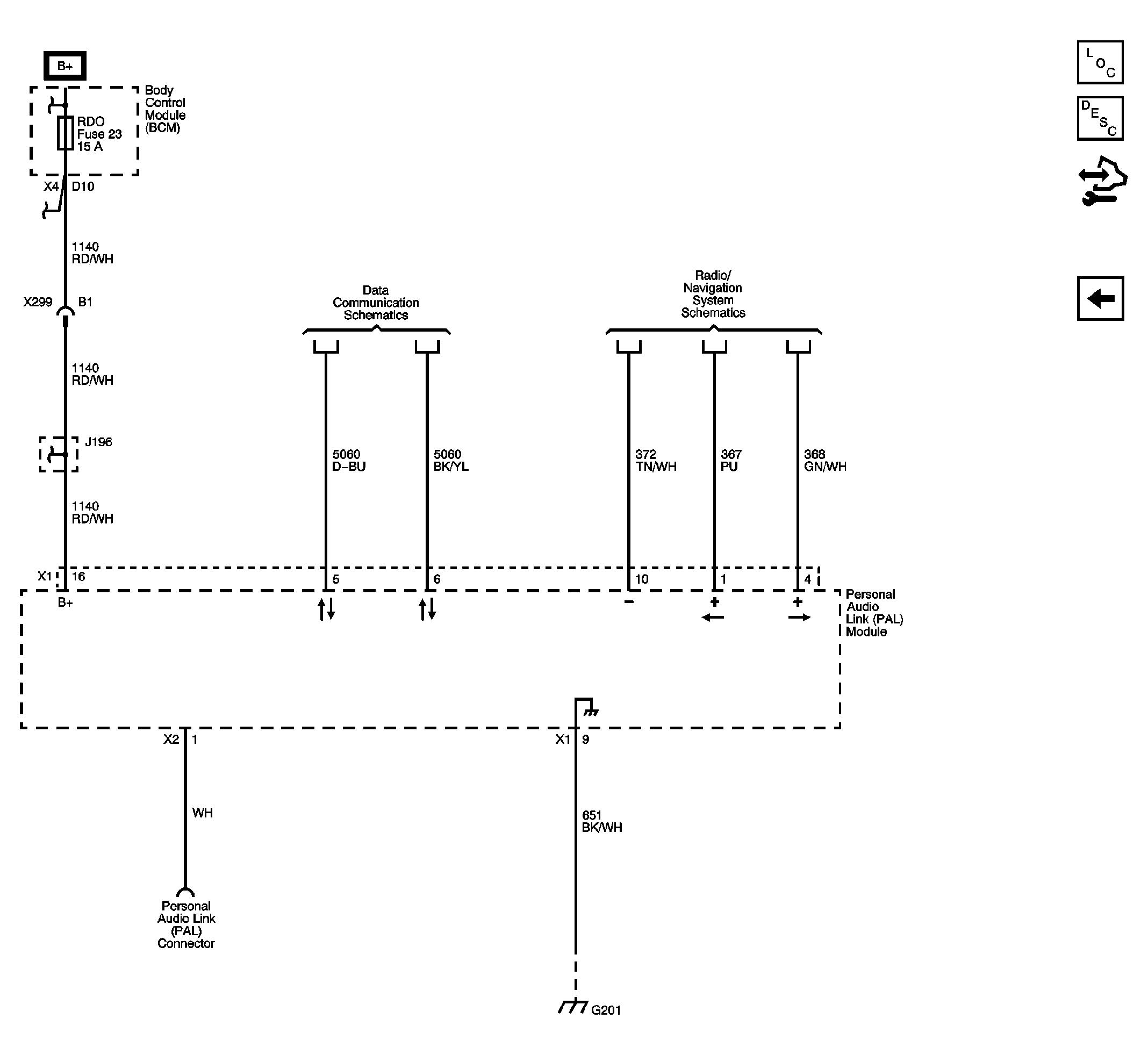

Fig 1: Personal Audio Link (PAL) Wiring Schematic
GM2376913Courtesy of GENERAL MOTORS COMPANY
